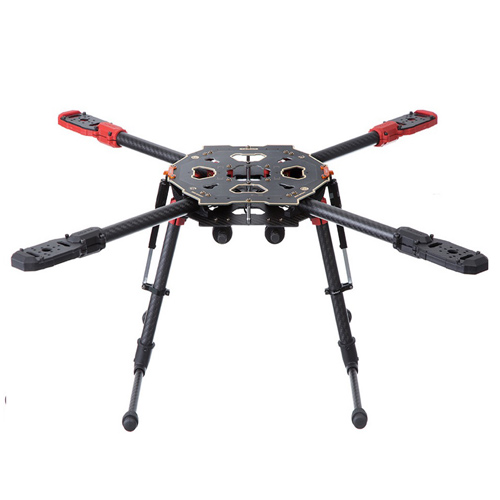

Tarot FY650 Sport – A Portable size Quadcopter with Motorized Landing Gear
This is Tarot’s only Quadcopter frame, 650 size, came with Motorized Landing Gear and it takes maximum 15″ propeller. The Tarot FY650 Sport has a lot in common with the bigger Tarot FY680-Pro (it has Six rotors), both have a Carbon Fiber Deck and a Integrated PCB Board, user can solder the ESC’s power cable directly onto this PCB board and save a lot of heavy and messy cables. The movable battery mount is also a good feature to balance the best C.G., because when you put a Tarot T-2D gimbal in the front of the drone, you need to off-set the weight with battery. The best of all is the Motorized Landing Gear, they connected to a Controller (included) and through a switch on your RC transmitter, you can retract and deploy the legs, so you will not see the legs in your Video anymore, this is a nice touch as the Motorized Landing Gear usually is “DIY” item, now Tarot includes them in the package.
The Tarot FY650 Sport airframe is versatile, you can put small but high speed motors and smaller props on it to become an agile GoPro Camera platform, or use with big motors and props on it to be a long flight time platform, it’s a great choice for you in Price and Performance for shooting beautiful scenery or interesting footage for YouTube.
We recommend 4S 14.8V, Tarot 4006 620kv and 13″ prop, or even more powerful config like 6S 22.2V Li-Po, Tarot 4008 380kv motor 13″ propeller, this can carry payload up to 1kg to 1.3kg, that means GoPro and similar size camera are no problem. Remember that if you put the camera in front, please adjust the battery’s position at the rear to have best C.G.
Great all around drone
You can put a lot of different gadgets on the drone, for lighter payload you can use lighter and cheaper config like small motors and battery, if you want to go big, just increase the size of the motor and props, we like this FY650 Sport.
Motorized Landing Gear
Came with the package, 100% made by Tarot, fully integrated with the FY650 Sport Airframe.
Retract and Deploy with a flip of a switch
The two landing gears connect to a controller, and connect the controller to the RC receiver.
Four rotor drones will have longer flight time, but less payload capacity
Two motor less then Hexacopter, that means less energy consumption and fly longer.
The new designed Integrated PCB Upper Deck
The Tarot FY650 Sport has a PCB Upper Deck and Carbon Fiber Lower Deck. You can solder the ESC’s power directly onto the PCB Upper Deck, no need to handle a bunch of power cables, much clean layout in the drone
The soldering points on the PCB Board
This is the PCB Board of the FY680 Pro, very similar to the FY650 Sport.
Light weight and easy to adjust motor mount
Support motor up to 45mm Dia., with 16mm, 19mm, 25mm and 27.7mm hole spacing.
Came with Mounting Rail and Movable Battery Mount
No need to spend money for the mounting rail. It is 60mm apart, you can put T-2D Gimbal on it and move that battery position for best C.G
A Portable 650 Size Hexacopter Frame
Easy transportation is very important, especially when you try to put it in the car by yourself…
Fold it up, it’s very portable
It’s foldable, easy to put in the back seat of your car
– Frame weight : 750g
– Arms diameter : 16mm
– Drone dia : 650mm
– Center body dimension : 190 x 200 x 2.0mm
– Mount mounting hole : 16mm hole x 2 / 19mm hole x 2 / 25mm hole x 4 / 28mm hole x 3
– Drone’s weight (everything it needs to fly) : around 2.3kg
– Payload (it can carry) : 1~1.3kg
Our Flight Reference :
– Battery Supply : One 4S 14.8V 5500mah for 13 minutes
– Motor : Tarot 4006 620kv Motor
– ESC : Hobbywing Platinum 30A-OPTO
– Propeller : Tarot 1355 Carbon Propellers
– Carrying : Tarot T-2D Brushless Motor Gimbal, TS352 FPV Transmitter, GoPro Hero 3+ (They weight about 700g)
This package includes :
1. 1 X Tarot 650 Sport Airframe and Motorized Landing Gear
2. 1 X Controller for the Landing Gears
3. 1 X Manual with English
4. Battery Velcro Tape
