Description
The T-1 flight controller has been specifically designed for commercial and industry multi-rotor UAV platforms. It is suitable for quad, hex and octo configurations and it features advanced functionality and safety protocols that make it ideal for serious UAV users.
Besides supporting a wide range of multirotor platforms it also supports SBUS, PPM and PWM and with improved GPS position lock. This flight controller is accurate to 1.5m horizontally and 0.8m vertically.
Flight missions are programmable with up to 128 waypoints possible and with a “point to go” function, you can direct the flight of your UAV platform straight from your smart phone or device.
There are also 8 built in flight functions, including stable mode, GPS mode, intelligent orientation mode, skyway flight mode, click and fly mode, smart circle mode, failsafe mode (return to home) and low voltage protection.
The T1 is a premium FC system that will not just meet your needs, it will exceed your expectations!
Features:
• Built-in damping
• Supports nine types of multirotor platform quads hex and octocopter
• Supports SBUS, PPM and PWM receivers
• Sophisticated orientation control algorithm makes control easy
• Accurate GPS position lock
• Stronger immunity to magnetic field interference
• Failsafe – loss of signal return to home function
• Low battery alert and protection system
• Hexa-rotor protection for single motor failure
• Point to Go function – Change destination on mobile device/tablet
• Flight Missions Programmable by PC ground station or smart phone with up to 128 waypoints
• 8 Flight modes
Specs:

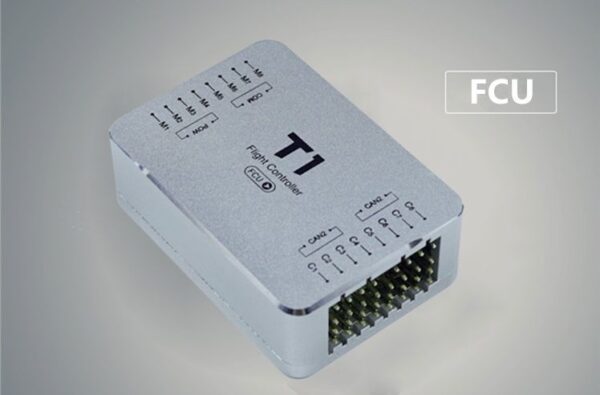

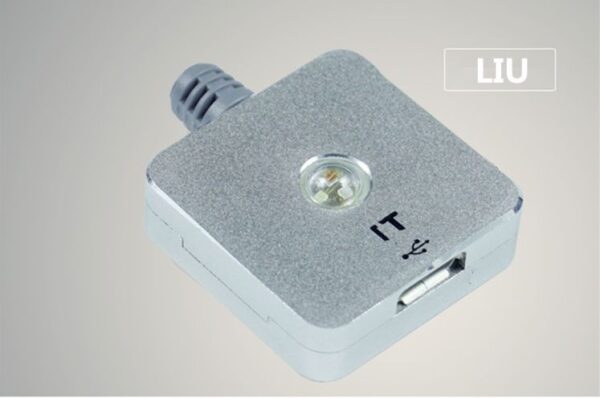

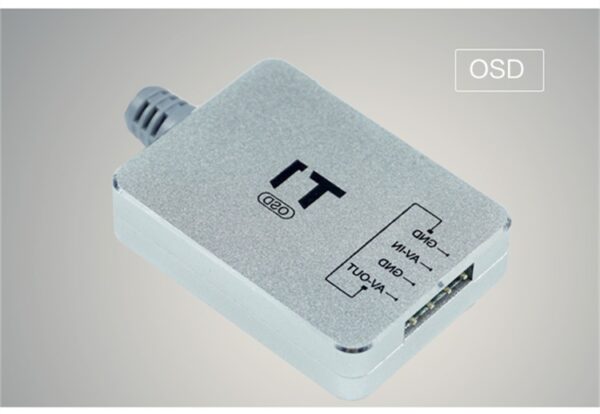

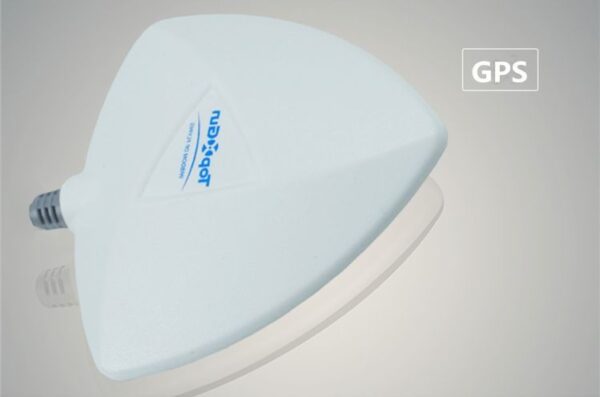

Weight: 75g (includes FCU, PMU, LIU. GPS and OSD)
Maximum output channels: 8
Maximum vertical speed: 6m/s
Maximum Horizontal speed: 25m/s
Supported Receivers: SBUS,PPM,PWM
Recommended Battery: 3S-6S
Power Consumption: <5W
