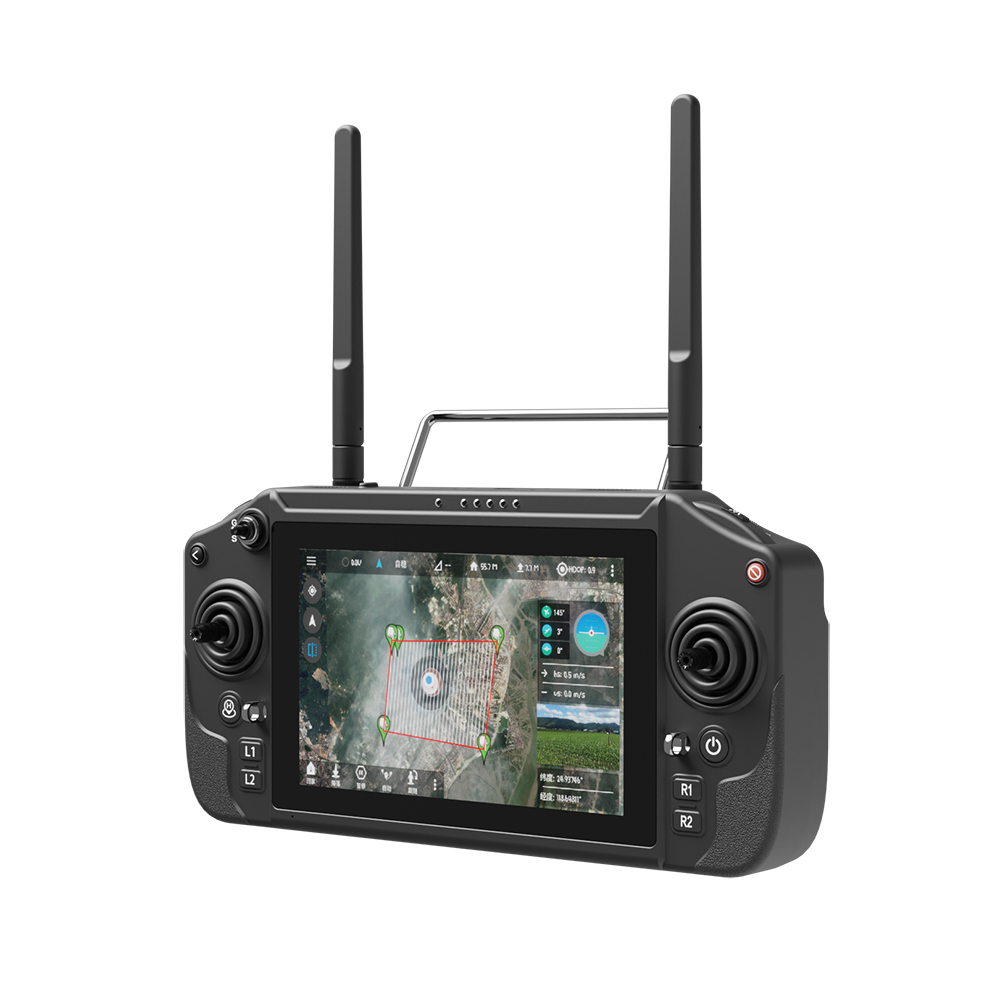

Skydroid H20: Long-Range Remote Control for Drones with 7″ Touch Screen Display

Description

The Skydroid H20 is powered by the latest Qualcomm Snapdragon 660 8-core processor, featuring an embedded Android 9 (64-bit) system, advanced SDR technology, and a sophisticated protocol stack that enhances image clarity, reduces latency, and improves resistance to interference for extended transmission distances.

• It is compatible with SIM cards, LAN ports, USB interfaces, Type-C connections, and TF card slots, providing versatile connectivity options.
• The R20 model boasts a variety of interfaces, including dual serial port passthrough transmission, dual LAN ports, and SBUS, enhancing its operational flexibility.
• It features a 7-inch high-brightness IPS LCD display that supports FHD digital image transmission, ensuring high-quality visuals.
• Equipped with dual fans, the system effectively manages heat, ensuring the remote control operates efficiently under various conditions.

Specifications:

• Item Brand: Skydroid
• Item Model: H20
• Display: 7-inch industrial touch & vision screen
• Resolution: 1280*800
• Processor: Qualcomm 660
• Computer Type: Android 9.1
• Size: 277(L)*138(W)“96mm(H)
• Weight: 1.2kg
• Battery Capacity: 20000mA/H
• Battery Working Time: 6-8Hrs
• Running memory: 4G
• System store memory: 64G
• Antennas: Dual antenna/2.4G
• Channels:     16
• Dynamic frequency modulation: supports frequency hopping
• RF power: 23dBm@CE/FCC
• Remote control range: 5-20KM (ground to air, visibility)
• Working temperature: -10℃-55℃）
• Charging interface:     TYPE-C
• External interface: USB, SIM card slot, TF card slot, Type-C
• Applications: Helicopter, fixed wing, multi-rotor, unmanned vehicle, unmanned boat, etc

R20 Receiver Specification

• Item Model: R20
• Channels: 16
• Working Voltage: 7.2V-72V
• RF Power: 23dBm@CE/FCC
• Size: 76.4(L)*59(W)*15(H)mm
• Weight: 65g

Package Included:

• Skydroid H20 Long Range Radio x 1
• Skydroid R20 Receiver x 1
• ONLY GRAY Colour Available
