Description

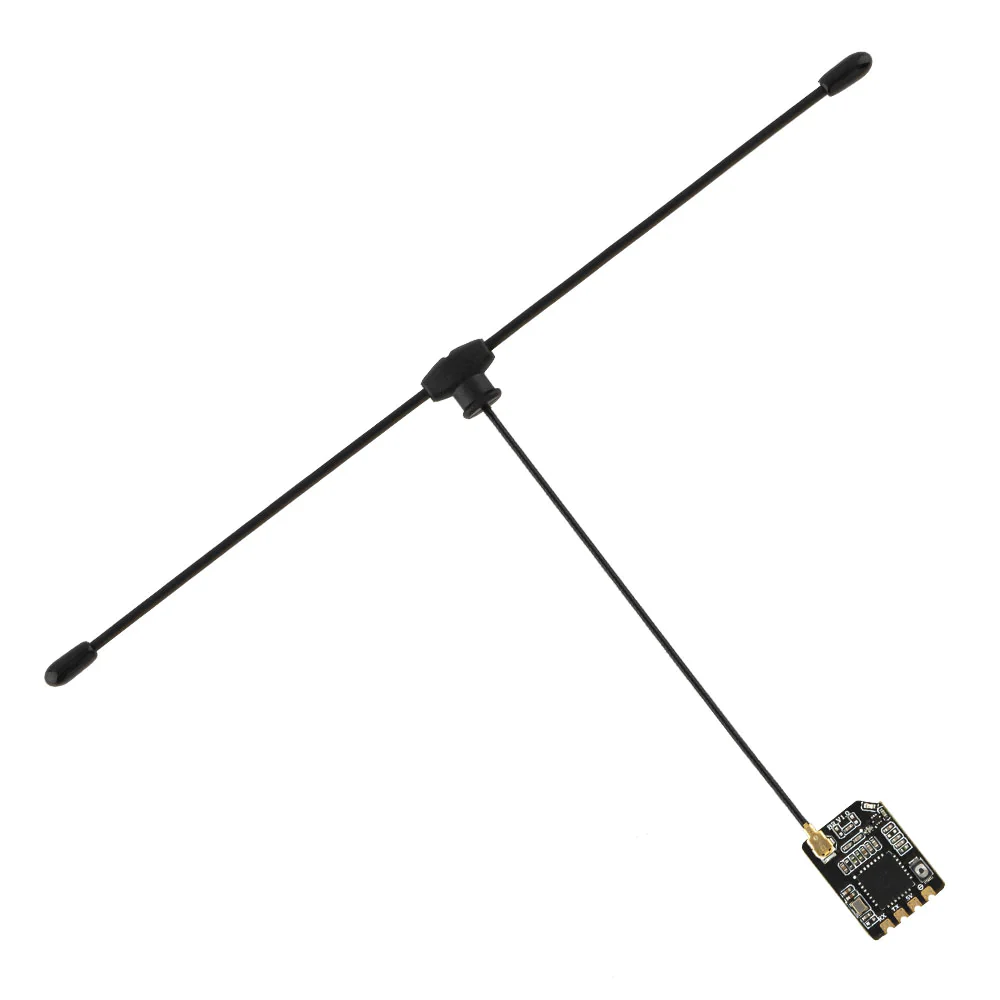

Bandit BR1 Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity and exceptional long-range performance. The included T Antenna and Y Antenna designed with high-sensitivity are both lightweight and easy to install depending on your application.
Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.
Features
- Built-in TCXO oscillator
- Utilizing 0402 components, superior resistance to vibration
- Lightweight and compact design
- High-sensitivity 915/868MHz T Antenna and Y Antenna included
Specifications
- Item: Bandit BR1 Expresslrs Receiver
- Regulatory Domain: FCC915
- MCU: ESP8285
- RF Chip: SEMTECH SX1276
- Telemetry RF Power: 50mw/17dbm
- Antenna: 915/868MHz T Antenna & Y Antenna
- Antenna Interface: IPEX1
- Bus Interface: CRSF
- Working Voltage: DC 5.0V
- Dimension: 18*13.8mm
- Weight: 1.7g (with Y antenna)/2.9g (with T antenna)
Package Includes
- 1x Bandit BR1 Expresslrs Receiver
- 3x Receiver Shrink Tube Sleeves
- 1x Y Antenna (Installed on Receiver)
- 1x T Antenna
- 1x CRSF Wire
- 1x Manual
