SIYI MK15 Mini HD | Handheld Ground Station | Android Ground Station | 15KM long range

Description

Technical Specification:-

• Model: SIYI MK15 [ETA Approved]
• Max Transmission Range: 15 kilometers (unobstructed, free of interference)
• Agriculture Control Range: 3.5 kilometers (flying at 3-meter’s altitude)
• Channels: 13 physical channels, 16 communication channels
• Compatible Agriculture Flight Controllers:
  – BOYING Paladin V2
  – JIYI K++ V2 / K3A Pro
  – VK V7AG
  – Pixhawk / APM based flight controllers Compatible Enterprise Flight Controllers:
  – JIYI KX Compatible Pixhawk Based Flight Controllers:
  – Compatible Android GCS (standard RTSP video stream):
  – QGround Control
  – JIYI IFLY / Agri-Assistant
  – BOYING Agriculture
  – VK V7 Pro Compatible Windows GCS (standard RTSP video stream):
  – Mission Planner

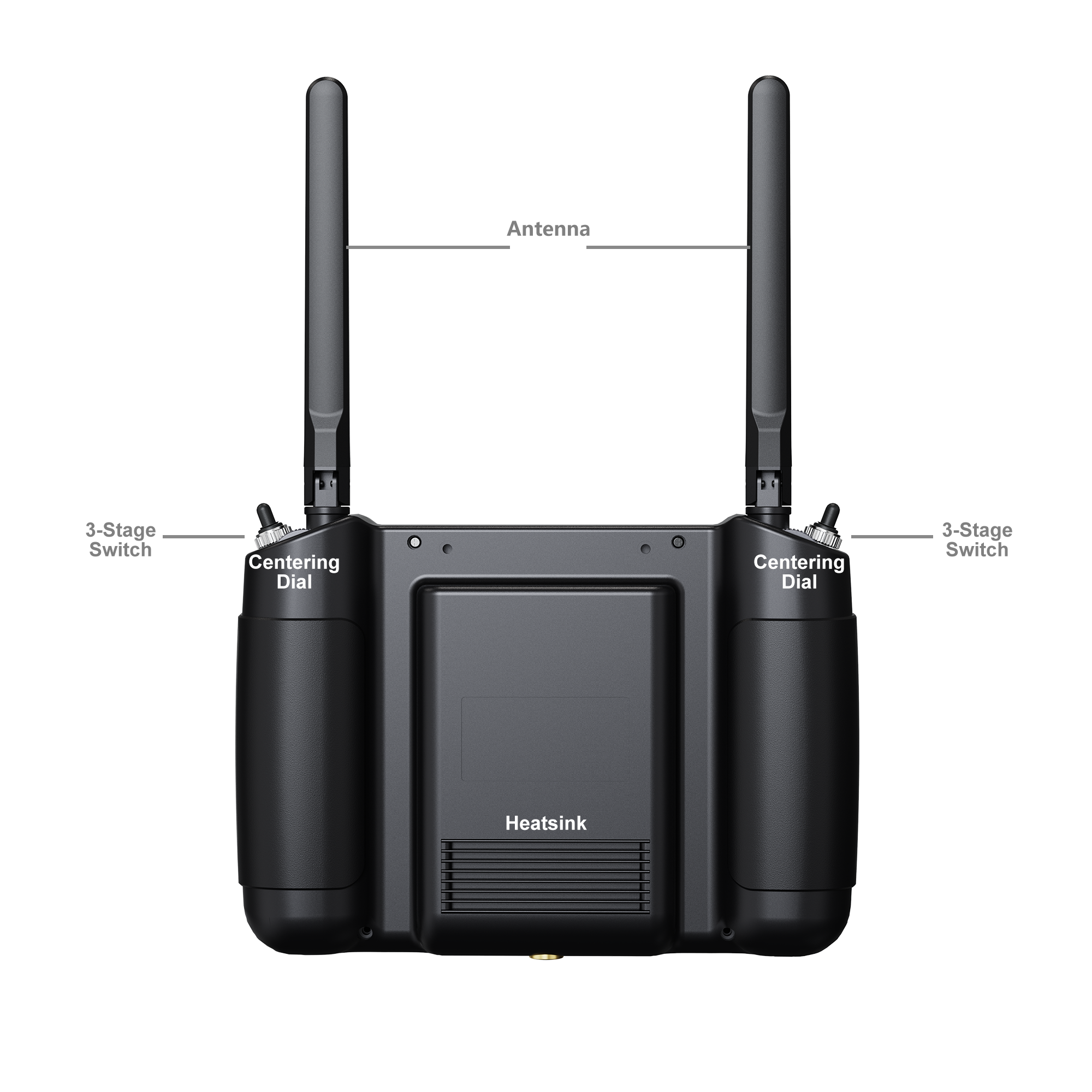

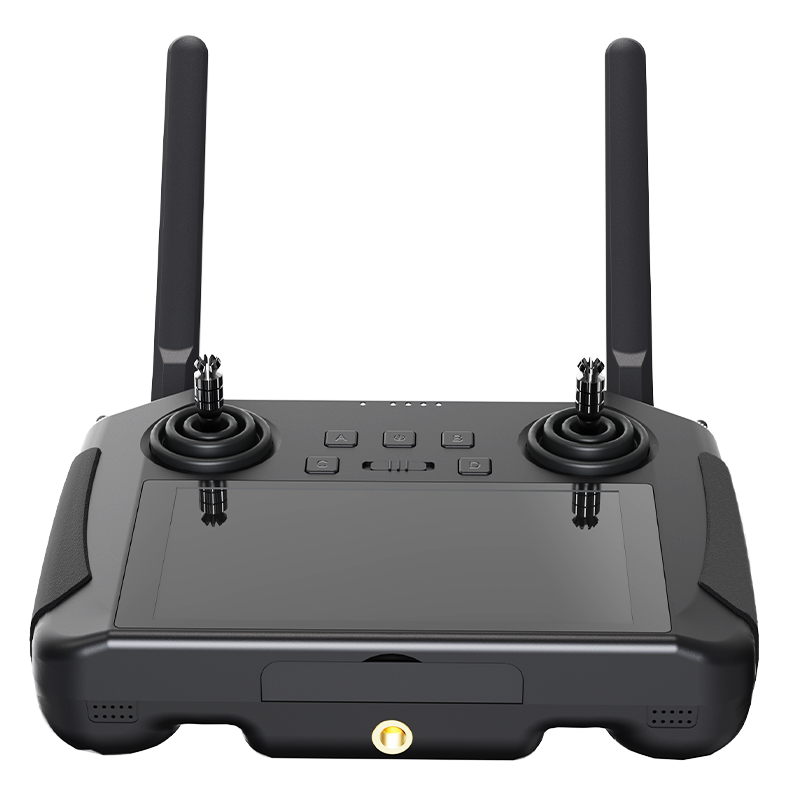

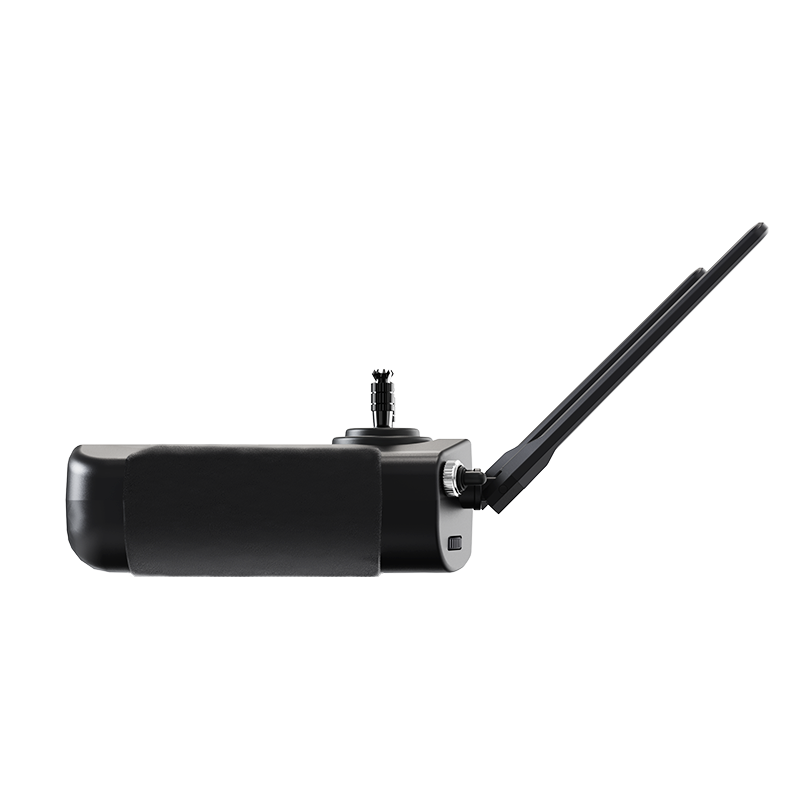

Remote Controller:-

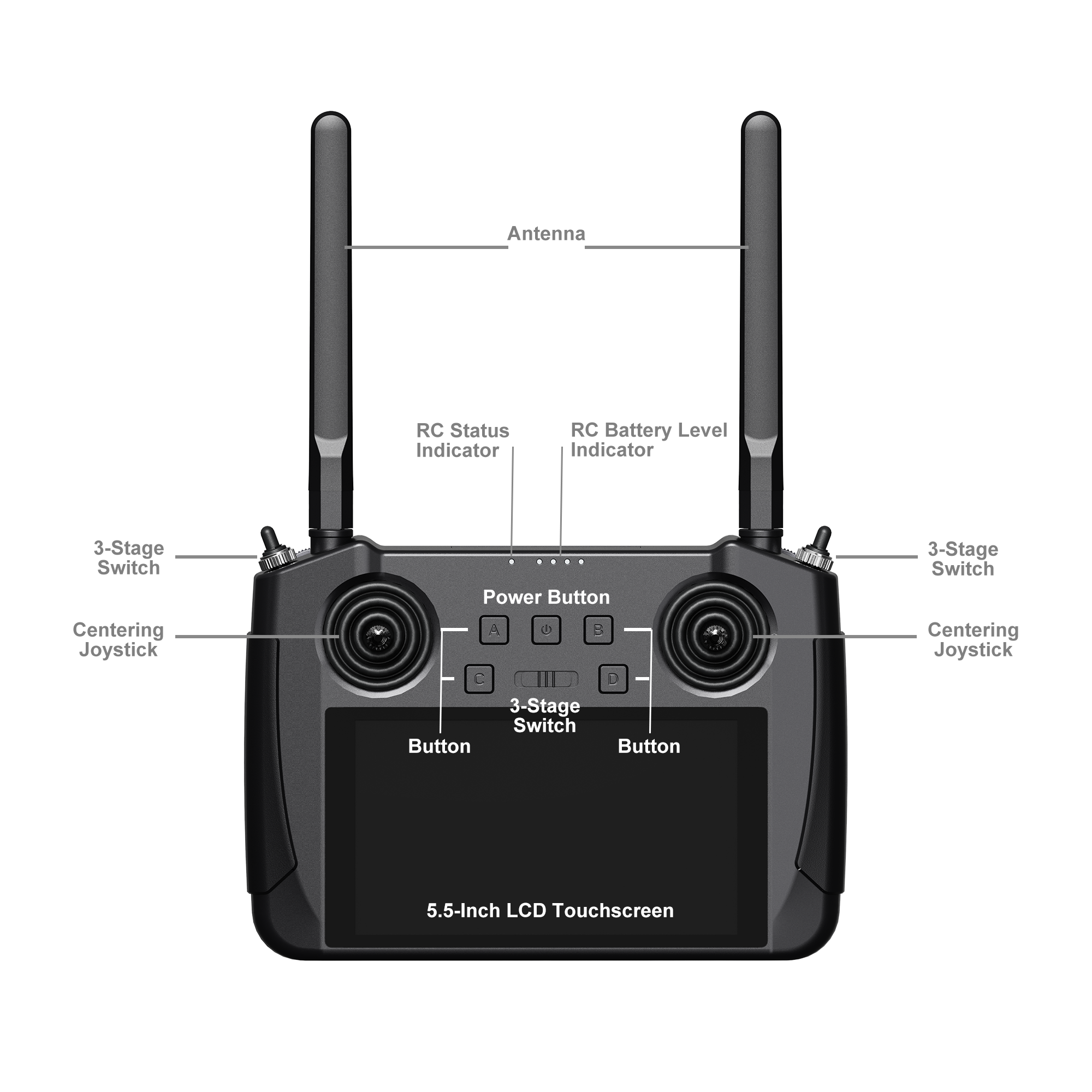

• Monitor: 5.5-inch High Definition and High Brightness LCD Touchscreen
• System: Android 9.0 OS, 2 G RAM & 16 G ROM
• Dimension (antenna overlapped): 189 x 138 x 41 mm
• Weight: 850 g
• Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
• Fast Charging Protocol: PD 30W
• Battery Life: 15 hours

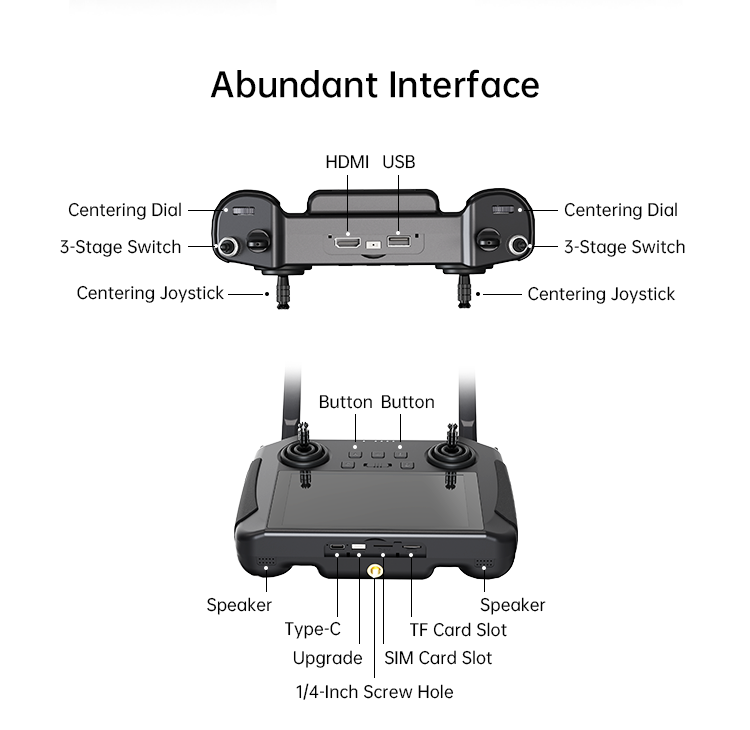

• Interface & Ports:
  – Charging: Type-C
  – Firmware Upgrade: Bottom DATA (4-Pin)
  – 4G/LTE Network: SIM Card Slot
  – External Storage: TF Card Slot
  – Tripod Connect: 1/4-inch Screw Hole
  – Video Output: Standard HDMI
  – External RTK: Top DATA (4-Pin)
  – Data Transfer: USB-A
• Waterproof Level: IP53
• Working Temperature: -10 to 55℃

Air Unit:-

• Signal Output: 16 channels of S.BUS, 5 channels of PWM
• Interface & Ports:
  – SBUS: 3-Pin
  – Datalink (to FC): UART 4-Pin
  – PWM Channel 1 to 5: 6-Pin
  – Video Input: Ethernet 8-Pin
  – Firmware Upgrade: Type-C
• Dimensions (antenna excluded): 70 x 55 x 16 mm
• Weight (antenna excluded): 100 g
• Antenna Gain (standard omni): 5 dBi
• Power Input: 14.8 to 58.8 V (4S to 14S)
• Working Temperature: -10 to 55℃

IP67 FPV Camera:-

• Camera Angle: FOV 105°
• Dimensions: 106 x 25 x 41 mm
• Weight: 108 g
• Searchlight Power Consumption: 8 W
• Luminous Flux: 1 W / 120 to 140 lm
• LED Type: Transparent
• LED Angle: 120°
• Waterproof Level: IP67
• Working Temperature: -10 to 55℃

Note :- Agricultral Mk15 which have not HDMI Output, For HDMI video out put you need to purchase Mk15 Industrial version.
