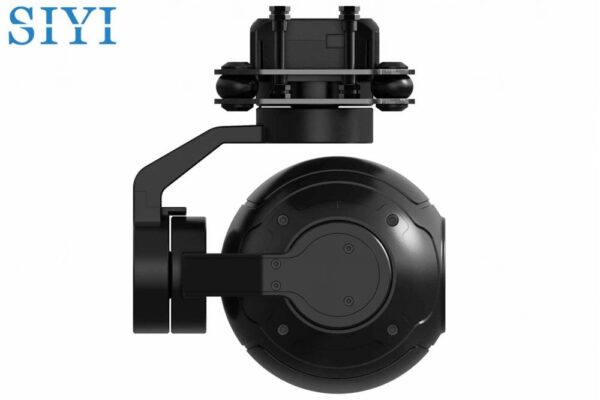

SIYI ZR10 10X Optical zoom & 30X Hybrid Zoom Gimbal Camera – 2K QHD

Description

Specifications of Optical zoom & 30X Hybrid Zoom Gimbal Camera –

• Model: ZR10
• Video Output Port: Ethernet
• Control Signal Input Port: S.Bus / PPM / UART / UDP
• Working Voltage: 11 to 25.2 V
• Power Consumption: 3 W
• Working Temperature: -10 ~ 50 ℃
• Waterproof Level: IP4X
• Dimension: 121*101*78 mm
• Weight: 381 g

Gimbal –

• Angular Vibration Range: ±0.01°
• Controllable Pitch Angle: -90° to +25°
• Mechanical Pitch Angle: -135° to +45°
• Controllable Yaw Angle: -160° to +160°

Camera –

• Lens: 10X Optical Zoom (30X Hybrid Zoom)
• Focal Length: 5.15±5% to 47.38±5% mm
• Minimum Focus Distance: 200 mm
• Image Sensor: 1/2.7”-inch, 4 MP effective resolution
• Aperture: F1.8 to F2.5
• FOV: Diagonal 79.5°, Horizontal 71.5°
• TF Recording Resolution: 2K (2560*1440) @ 30 fps
• Video Storage Bitrate: 12 Mbps
• File Storage Format: FAT32
• Image Format: JPEG
• Video Format: MP4 (Recorded in H265, *auto converted to MP4 after restart)
• Supported MicroSD Cards: MicroSD Class10, Max 128GB
• Still Photography Mode: Single
• Metering Mode: Evaluative metering
