Description
Details

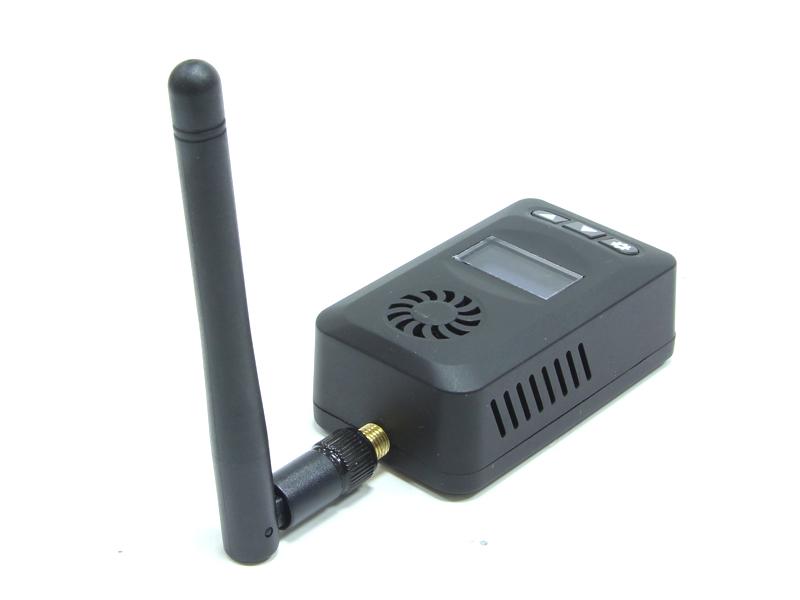

The SKY-N2000 Transmitter packs a whopping 2000mW of ultra clean 5.8GHz power into a compact package! A must for those looking for longer range and locked in video. It also features a bright OLED LCD screen for easy viewing. This transmitter is transmitting a full range of 32 channels and uses an easy to use 3 button interface, it also comes with a clean pre-wired harness, and only weighs in at 47g, it’s perfect for a wide range of aircraft!
Features
- 32 channels: Cover A, B, E bands and F bands
- Three buttons – two for the band and channel – one setup button
- 2Ch video input, Remote channel switching via spare channel on RC transmitter
- 128*64 super bright OLED color digital display with high brightness & contrast ,clearly visible under the sun
- Support 2-6S battery and low battery alarm
- Screen Display: Current/Temperature/PA Power detection
TX SKY-N2000 specs:
- Power input: 7-24V
- Transmitting power: 2000mA
- Antenna gain: 2db
- Video bandwidth: (5Mhz @6.5v) (6Mhz @12v) (6Mhz @28v)
- Audio bandwidth : 6.5Mhz
- Audio Sub Carrier: 4.7KΩ
- Weight: 47g
- Dimension: 60x 35x 20mm (excluding antenna)
- Video format supported: NTSC/PAL
- Antenna connection: SMA MALE (not RP-SMA)
Frequency and channel frequency table:
Compatible with Fatshark, ImmersionRC Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.
Included
- 1 x 2000mW transmitting unit (TX)
- 1 x stock dipole whip antenna 2db
- 1 x power in harness
- 1 x power out video out audio out harness
- 1 x user manual
