HD Video Glasses FPV / video glasses 5.8G 40ch

Description

Product Specifications :

Glasses Body Weight: 258g

Size: 168mm * 158mm * 105mm

Display: 5-inch

Aspect Ratio: 16: 9

Resolution: 800 * 600

Videos System format: NSTC / PAL (automatic identification)

Receiver: 40 bands

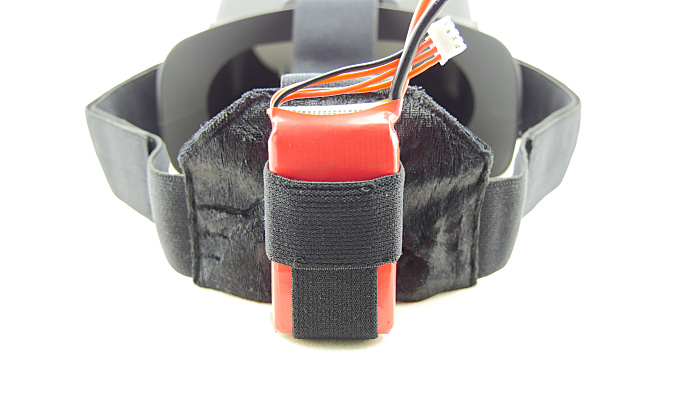

Operating voltage: 7V ~ 15V (2S ~ 4S)

Operating temperature: -20 ° ~ 80 °

Product List:

Lens body * 1PCS

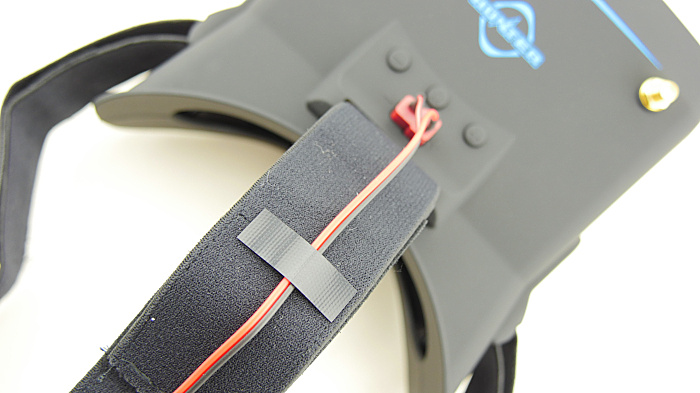

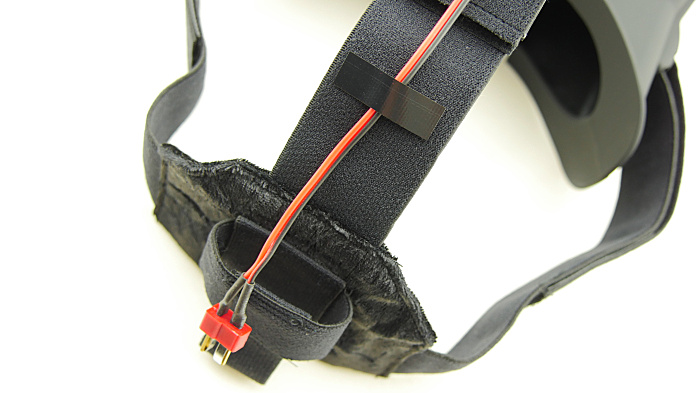

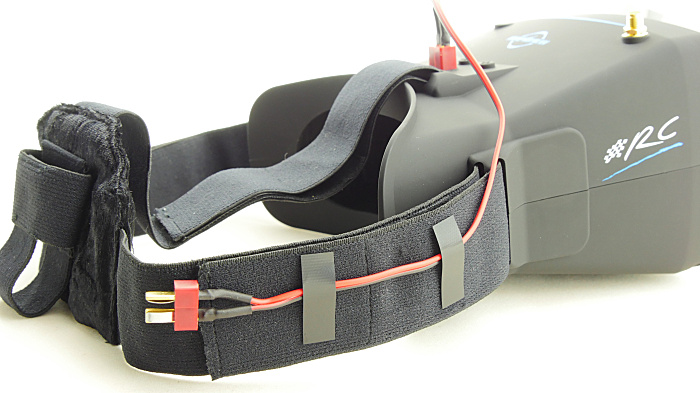

Head strap * 1PCS

Face cushion * 2PCS (thick / thin one each)

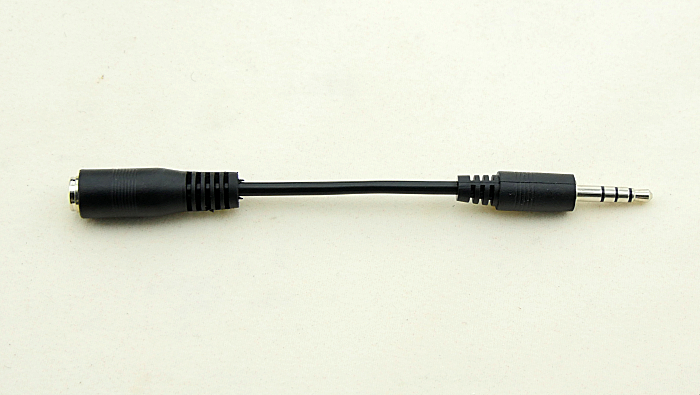

Extension cords * 1PCS

5.8G antenna * 1PCS

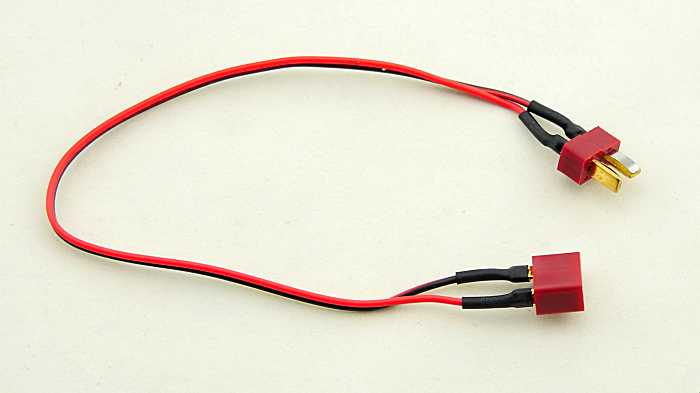

Beam line deduction * 2PCS

Glasses menu:

Shortcut menu:

1: button + and button – you can adjust the screen brightness (amplitude of accommodation is 10% of a file)

2: Press the Menu key can directly enter the fast sweep mode.

3: Voltage display or current frequency display: Press any key to display the pop-up voltage and current frequency display.

General menu:

1: manual frequency selection, 5.645 ~ 5.945 (a total of 40 frequency points) are sequentially arranged, through buttons + or – to select the desired frequency. Press button + or – to enter the fast conversion mode.

2: automatic sweep, ultra-high-speed automatic frequency selection.

3: brightness adjustment, using the keys + or – to select the desired brightness. Press button + or – to enter the fast conversion mode.

4: contrast adjustment by key + or – to select the desired contrast. Press button + or – to enter the fast conversion mode.

5: Color adjustment by key + or – to select the desired color. Press button + or – to enter the fast conversion mode.

Socket Function:

1: external video input (four plug), the system will automatically recognize the input signal, switch operating modes.

2: Video output (four plug). Experience the original screen sharing.

3: audio output. (Three sections plug)
