Description

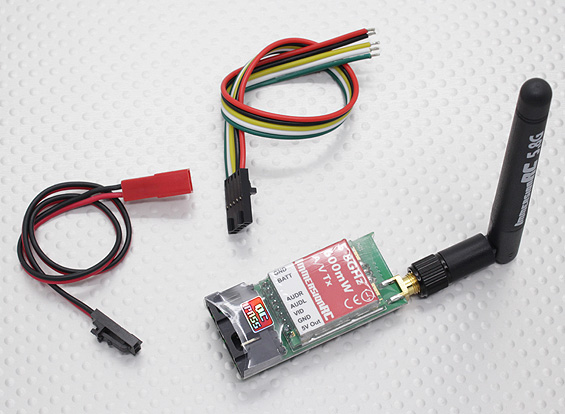

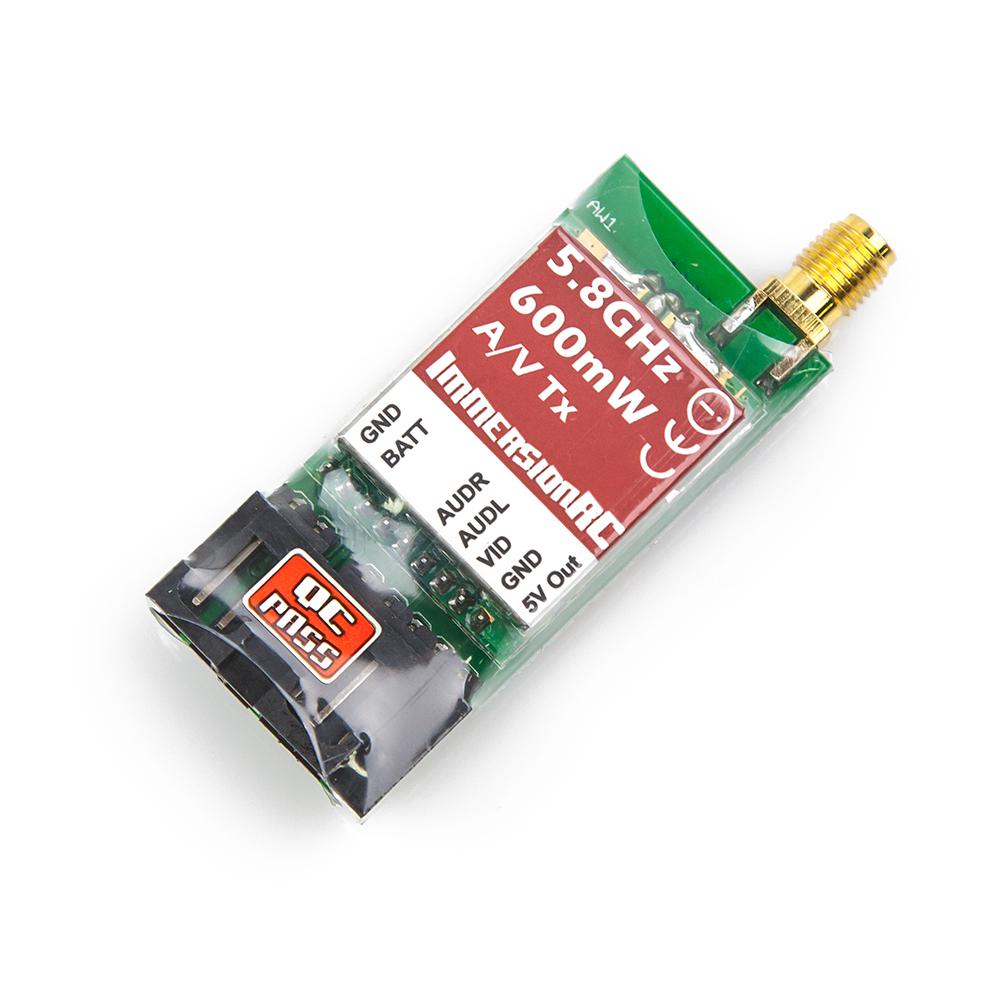

This transmitter is compatible with the Fat Shark RCV922 or similar camera and is also an ideal plug & play upgrade for the Fat Shark 5.8ghz 100mw FPV system.
Features.
600mW (28dBm, +/- 1dB) of clean output power
SMA Antenna connector, with supplied 5.8GHz antenna.
Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
Fully compatible with 2.4GHz R/C radios
On-board quiet switching regulator, powers 5v cameras (including HD versions)
Specs:
Weight: 18 grams
Size: 50 x 23mm
Input voltage range: 7~25v
Camera Power Supply: 300mA / 5v
Video Input: 1Vpp, 75 Ohms
