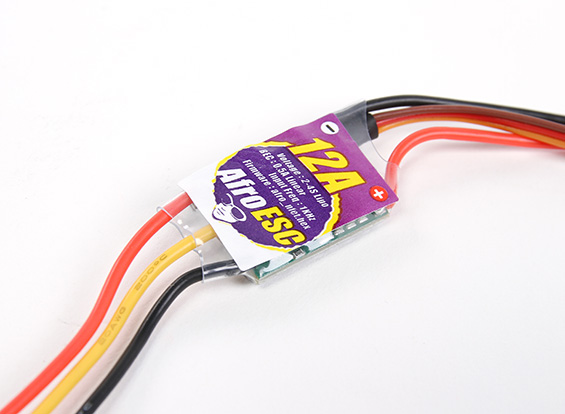

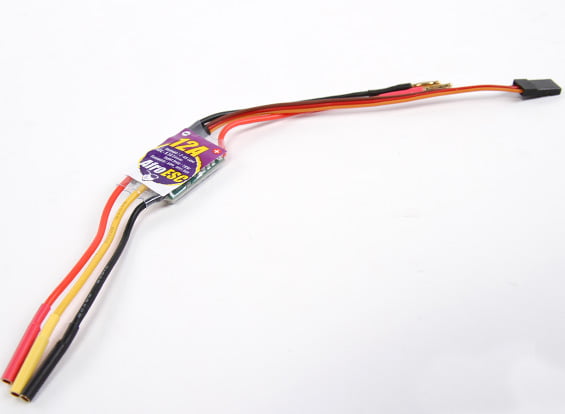

12Amp – UltraLite Multirotor Afro ESC BEC V3 (SimonK Firmware)

Description

Enter Simon and Hamasaki AKA SimonK and timecop. This combination of hardware and firmware expertise in conjunction with the Hobbyking in house engineering team gave us the edge needed to develop an ESC like no other and hence the Afro series was born.

Boasting high efficiency, all N-channel MOSFET design, jitter-free hardware PWM input, and smooth power response the Afro ESC series are set to change the expectations of multi-rotor pilots around the globe. The Afro ESC series ship with multi-rotor specific SimonK software preloaded! No need to reflash. For added convenience the Turnigy USB linker can be used via the PWM signal lead for any future software updates eliminating the need for complicated flashing jigs or the need to cut open the heat shrink.

MikroKopter I2C compatibility has also been built in as standard. A DIY port is available under the shrink wrap which allows using the ESC with MikroKopter hardware that uses I2C control.
Specs:
Current Draw: 12A Continuous
Voltage Range: 2-4s Lipoly
BEC: 0.5A Linear 5.0v
Input Freq: 1KHz
Firmware: afro_nfet.hex
Discharge wire/plugs: 20AWG/Male 2mm
Motor wire/plugs: 20AWG/Female 2mm
Weight: 10g (Included wire, plug, heat shrink)
Size: 25 x 20 x 6mm
