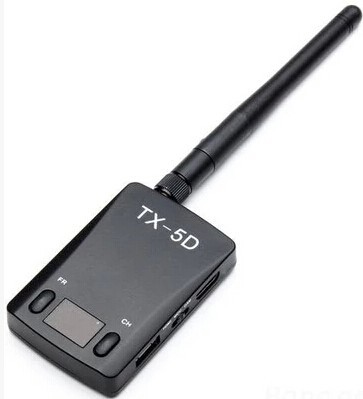

SkyZone TX-5D Dual Input HDMI | Analog Video Transmitter with Video Switch | 600mW 5.8GHz

Description

The TX-5D can also remotely switch and synchronize the video channels via an RC switch when paired with some Skyzone receivers, this lets you quickly jump to a new channel live and in the air if you run into interference or video loss.

The TX-5D supports the full 32ch range of the 5.8GHz band at 600mW for a wide range of compatibility and applications.

Features:

• 32 Channel 5.8GHz
• 600mW TX power
• RC controlled video switch between the two video inputs
• RC controlled live channel sync and changing
• HDMI and analog video input
• 7~24V input power

Specifications:

• Item Name: Transmitter Module
• Item No.: TX-5D
• Working frequency: 5.8Ghz
• Frequency point: 32
• Power input: 7.4~16V (3S Lipo suggested)
• Working current: 220mA at 12V
• Video band width: 8MHz
• Audio coding: 6.5MHz
• Antenna gain: 2dbm
• Dimension: 63x42x12mm (not including the antenna)
• Support Input: HDMI AV Audio

Frequency Range:

FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880
