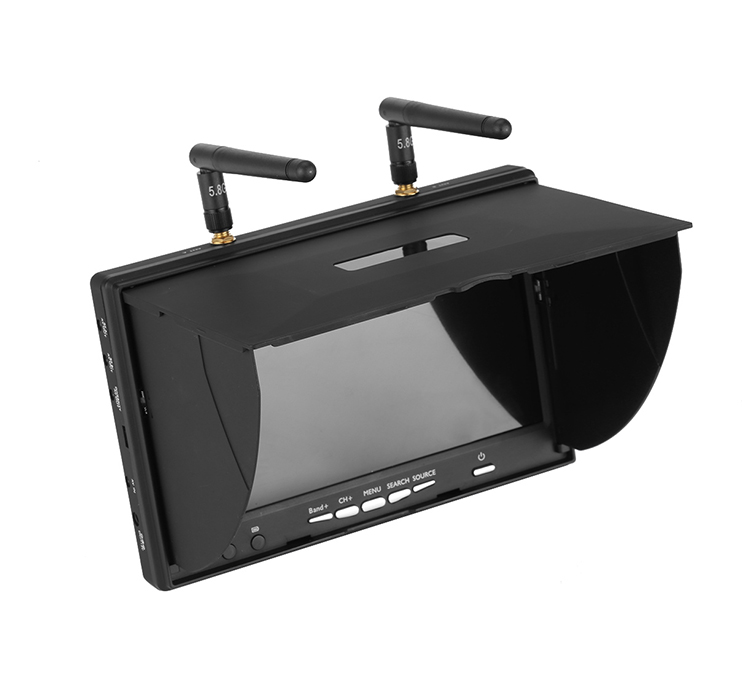

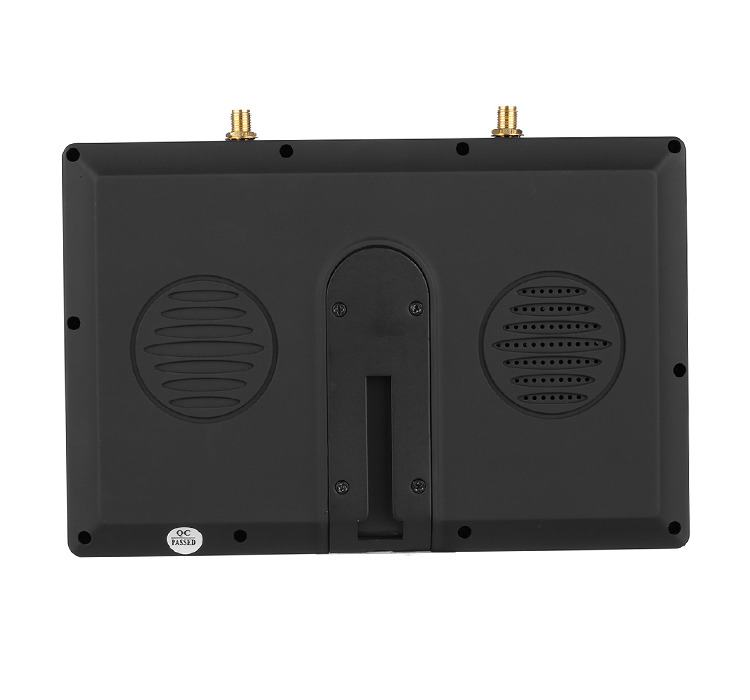

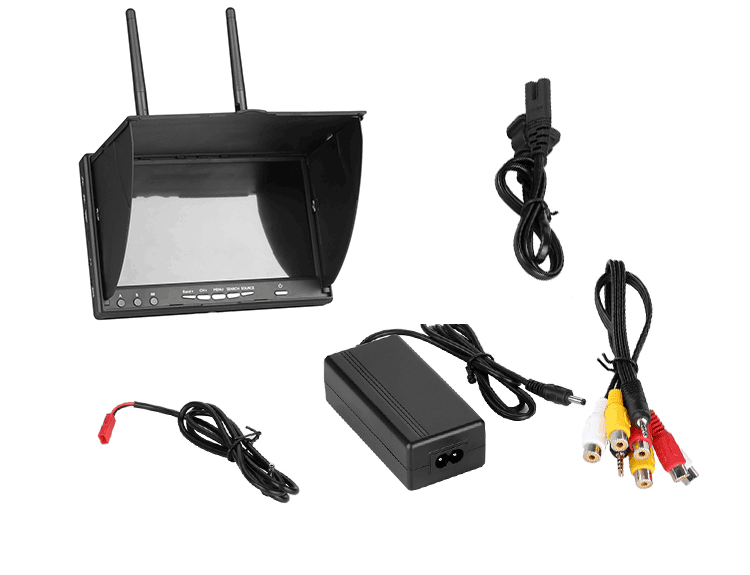

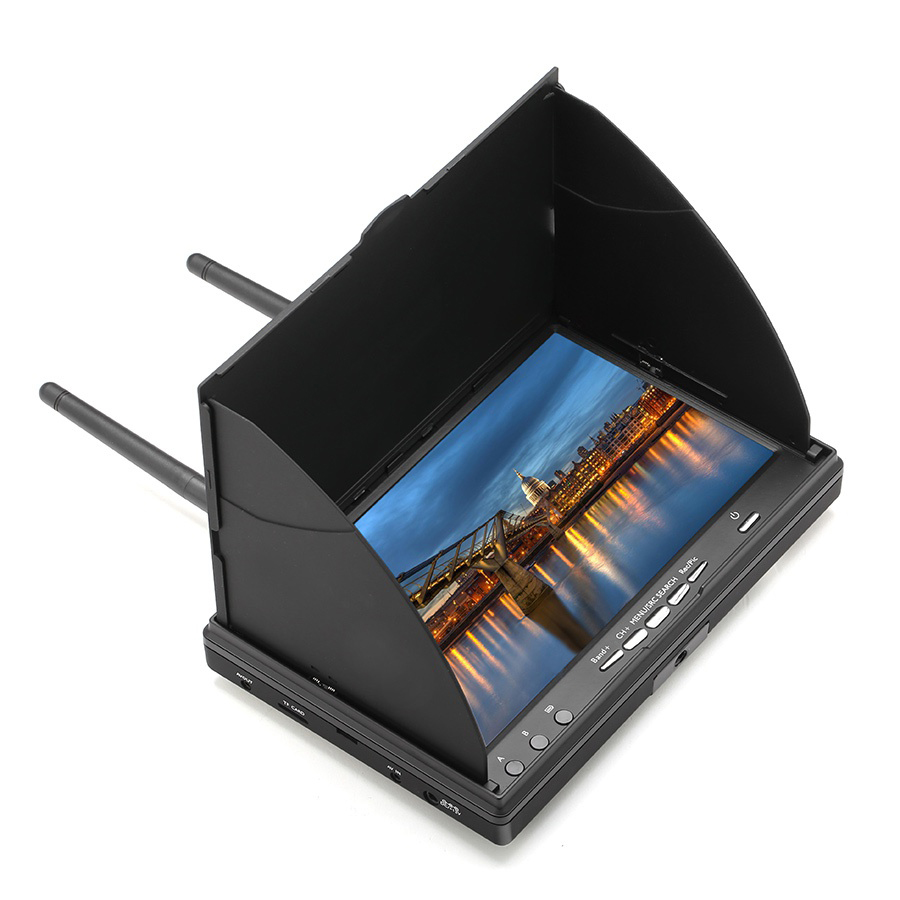

7Inch Diversity FPV LCD Screen with built-in battery & DVR Function

Description

Product parameters:

Name: 7inch LCD Screen

Built-in 5.8 GHz dual diversity receiver

Built-in 2 ch 5.8 ghz AV output and 1 ch AV input

Built-in high performance Li-POLYMER battery: 2000 mah / 7.4 v

Battery operating state

OSD display

RSSI signal indicator

channel indication

Features:

DVR function built-in dual receiver module

Double buffered AV output does not affect 2.4 ghz R / C radio

AV receiver with versatile input is lightweight and durable

40-channel built-in battery for easy portability and outdoor use

Automatic signal search, simple operation

Work status display: Always pay attention to the working status of the device.

Note: it cannot receive two different channels at the same time

Automatic signal search

Support Chinese and English menus

Format: JPEG, AVI Screen Size: 7 inches

Screen type: TFT LCD / long life, LED backlight resolution: 800 * 480

Brightness: 600 cd / m2 viewing angle: 140/120degree (horizontal/vertical)

Size: 180 mm x 120 mm x 50 mm (Note: Height: 28 mm)

Operating voltage: DC 7 ~ 16 v Power consumption: max 650 mA @12V

Battery charging current: 850 mA @12V(max) Operating temperature: -10°C~ + 65°C

Connector: RP-SMA female (outer pin) antenna connector: RP-SMA male (inner hole)

Support for up to 32G C10 SD card.
