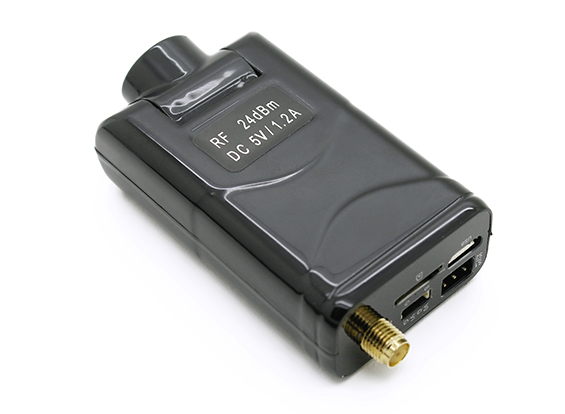

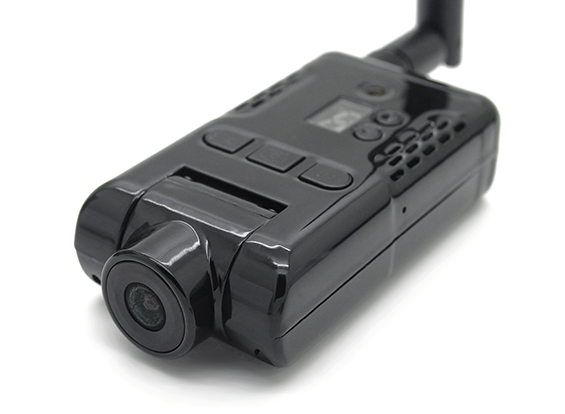

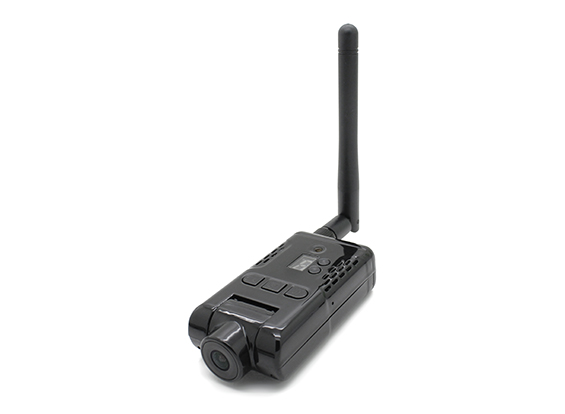

The Skyzone SKY-HD01 is a high definion 1080p 30fps FPV/Action Cam that is very easy to install and use.
Great for FPV flying it has a built in 5.8Ghz 400mw transmitter with up to 40 channels easily selectable across 5 bands thanks to the LED display.

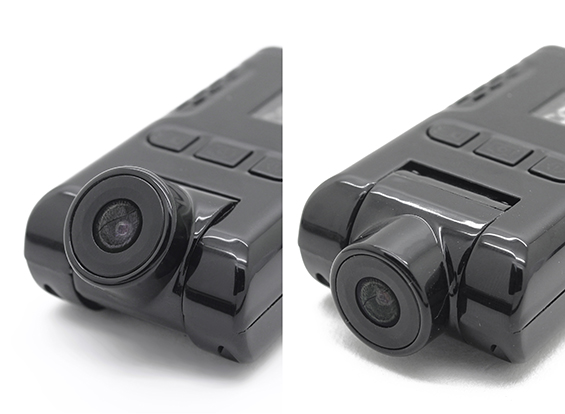

The Lens FOV is 150 degrees and can be tilted within its housing to ±45 degrees. It can be powered from your main flight battery through a voltage step down or using its own built in Lipoly to provide up to 20 minutes of operation.
The SKY-HD01 also supports OSD and PWM remote control, has a built in microphone and utilises a micro SD card for on board recording. A micro usb cable is provided to download images/video and to charge the camera’s internal battery.
This is an excellent value and no fuss plug & play unit for any FPV/aerial photography application.
• Full HD 1080p 30fps
• Built-in 5 Bands 40CH 5.8Ghz 400mw transmitter
• Lens Rrtation range of ±45 degrees
• FOV angle 150 degrees (Diagonally)
• Supports PWM remote control
• Supports OSD
Camera:HD 1080p 30fps
Latency: about 0.15s
Picture Format: Jpeg
Video Compression: h.264
RF Output: 24dBm
RF Output Impedence: 50 Ohm, SMA port
SD Card supported: Micro SD 32GB
Power Supply: 5V/1.2A
Built-In battery: 3.7V 500mAh
Dimensions: 65 x 37 x 20mm
Weight: 72g (with antenna and cables)
Sky-HD01 FPV/Action Cam
