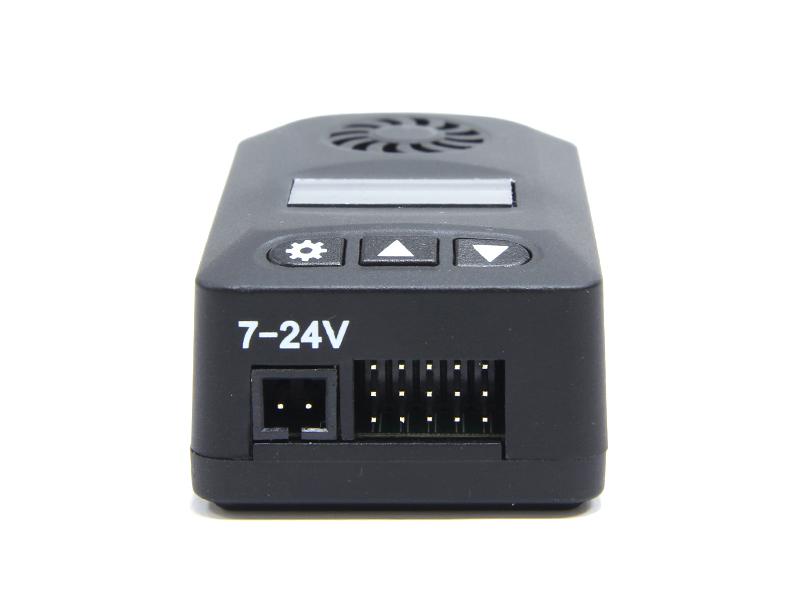

Skyzone 5.8GHz 32CH 2000mW A/V Transmitter with OLED Display

The SKY-N2000 Transmitter packs a whopping 2000mW of ultra clean 5.8GHz power into a compact package! A must for those looking for longer range and locked in video. It also features a bright OLED LCD screen for easy viewing. This transmitter is transmitting a full range of 32 channels and uses an easy to use 3 button interface, it also comes with a clean pre-wired harness, and only weighs in at 47g, it’s perfect for a wide range of aircraft!

Features

• 32 channels: Cover A, B, E bands and F bands
• Three buttons – two for the band and channel – one setup button
• 2Ch video input, Remote channel switching via spare channel on RC transmitter
• 128*64 super bright OLED color digital display with high brightness & contrast ,clearly visible under the sun
• Support 2-6S battery and low battery alarm
• Screen Display: Current/Temperature/PA Power detection

TX SKY-N2000 specs:

• Power input: 7-24V
• Transmitting power: 2000mA
• Antenna gain: 2db
• Video bandwidth: (5Mhz @6.5v) (6Mhz @12v) (6Mhz @28v)
• Audio bandwidth : 6.5Mhz
• Audio Sub Carrier: 4.7KΩ
• Weight: 47g
• Dimension: 60x 35x 20mm (excluding antenna)
• Video format supported: NTSC/PAL
• Antenna connection: SMA MALE (not RP-SMA)

Frequency and channel frequency table:

Compatible with Fatshark, ImmersionRC Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.

Included

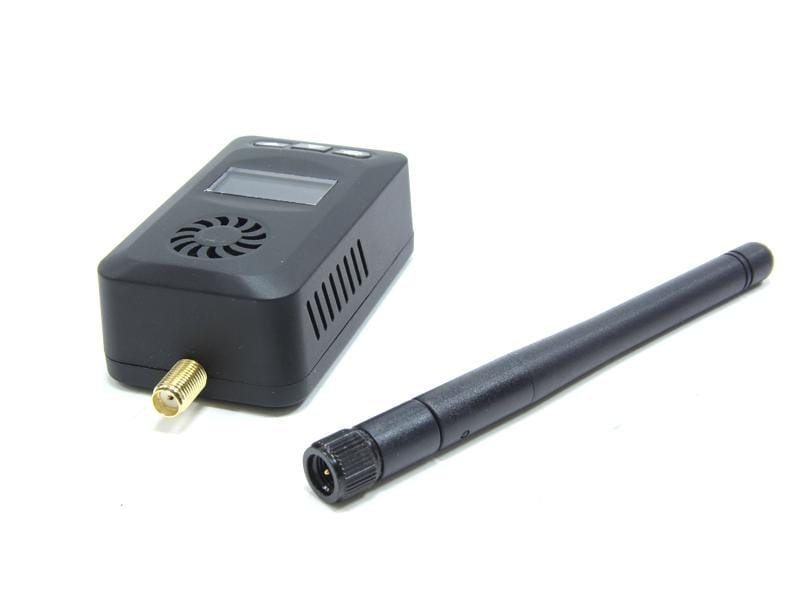

• 1 x 2000mW transmitting unit (TX)
• 1 x stock dipole whip antenna 2db
• 1 x power in harness
• 1 x power out video out audio out harness
• 1 x user manual
