Description
Features
- Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
- Dual buffered AV outputs
- Can receive 2 different channels at the same time
- Not affect by 2.4GHz R/C Radios
- AV Receiver with Diversity inputs
- Small, light weight, durable
- 4 Bands and total 32 Channels
- Built-in battery , easy to carry and outdoor use
- A key to automatic signal search,Simple operation
- Work status OSD display:Always be aware of the device working condition.
Specifications
- Built-in 5.8Ghz Dual diversity receiver automatically for best reception

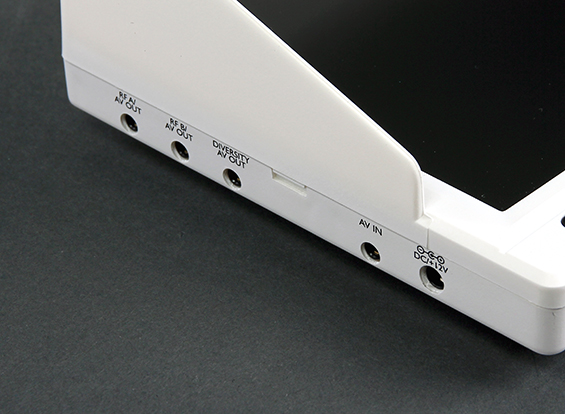

- Built-in 2CH 5.8Ghz AV output and 1CH AV input
- Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
- Work status OSD display : RSSI indication ; Battery indicator;Channel indication
- A key to automatic signal search
- Support Chinese and English menu
- Screen size:7”
- Screen type:TFT LCD Screen/long life, LED backlight
- Resolution: 800*480
- Brightness: 450cd/m2
- View Angle:140/120degree (Horizontal/Vertical)
- Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
- Working Voltage: DC 7~16V
- Power Consumption: 650 mA @12V
- Battery charging current : 850mA @12V ( max )
- Working temperature: -10℃~+ 65 ℃
- Connectors:SMA female(outer hole)
- Antennas Connectors:SMA male (inner needle)
Including
- 1 x 7″ LCD Screen Receiver Monitor with built in Rechargable Battery
- 2 x 5.8G Antenna
- 2 x AV Cable
- 1 x Charging Cable
- 1 x Shade Hood
