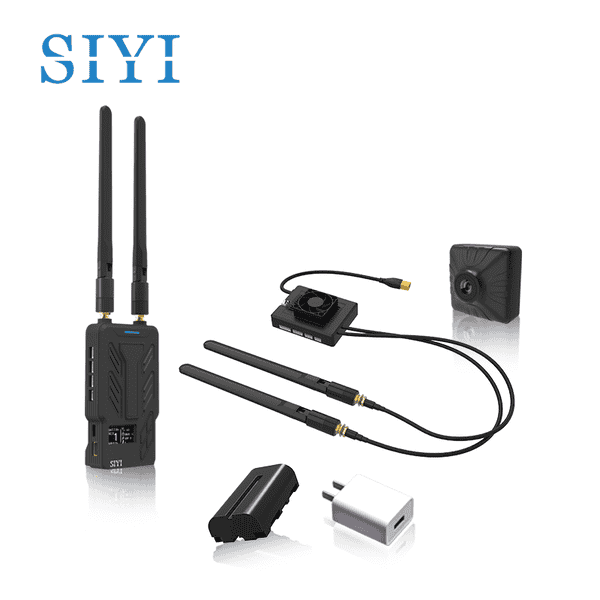

Specification of SIYI HM30 Long Range Full HD Digital Image Transmission | FPV System 1080p 60fps 150ms
| Max Transmission Range | 30 km
(Unobstructed, free of interference) |
| Channels | 16 communication channels |
| Datalink Compatible Flight Controllers | PX4 / ArduPilot Open-Source Flight Controllers:
SIYI N7, etc. INAV Open-Source Flight Controllers |
| Video Stream Compatible GCS (Android) | SIYI Factory Apps:
SIYI FPV Open-Source GCS: QgroundControl Mission Planner |
| Video Stream Compatible GCS (Windows) | Open-Source GCS:
QGroundControl Mission Planner (H264 only) |
Ground Unit
| Monitor | 0.96-inch OLED Display |
| Compatible Battery Type | NP-F550 / F750 / F950 Series Quick Release Batteries
(HM30 fly more combo comes with NP-750 quick release battery) |
| Fast Charging Protocol | PD 30W |
| Antenna Gain | Standard Omni Antenna: 5 dBi
Standard Long Range Antenna: 11 dBi (Optional) Lollipop Antenna: 5 dBi |
| Interface & Ports | S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin)
Datalink Output: UART (GH1.25 4-pin) Ethernet Port: LAN (GH1.25 4-pin) Power Output: VCC (GH1.25 4-pin, without bucket) GCS Datalink Communication: Type-C Firmware Upgrade: Type-C Charge: Type-C Power Input: PWR (XT30) Tripod Connector: 1/4-inch Screw Hole |
| Product Dimensions (Battery and antennas excluded) | 109 x 61 x 28 mm |
| Product Dimensions (Battery and antennas excluded) | 132 g |
| Waterproof Level | IP53 |
| Working Temperature | -10 ~ 50℃ |
Air Unit
| Signal Output | 16 channels of S.Bus
5 channels of PWM |
| Interface & Ports | S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin)
Datalink (to FC): UART (GH1.25 4-Pin) PWM Channel 1 to 5: PWM (GH1.25 6-Pin) Video Input / Network Communication: LAN (GH1.25 8-Pin) Firmware Upgrade: Type-C |
| Antenna Gain | Omni Antenna: 5 dBi (Standard)
Lollipop Antenna: 5 dBi (Optional) |
| Working Voltage | HM30 Air Unit:
3S ~ 6S / 12.6 ~ 25.2 V 4S to 18S Power Module (Optional): 16.8 ~ 75.6 V |
| Power Consumption | HM30 Air Unit:
– Average: 2.8 W – Summit: 12 W HM30 Air Unit + 4S to 18S Power Module: – Average: 3.2 W – Summit: 12 W |
| Dimensions (Antenna Excluded) | 70 x 55 x 16 mm (fan included) |
| Weight (Antenna Excluded) | HM30 Air Unit:
74 g HM30 Air Unit + 4S to 18S Power Module: 109 g |
| Working Temperature | -10 ~ 50℃ |
R1M Recording FPV Camera (Optional, packed with both HM30 combos)
| Video Output Port | Ethernet |
| Image Sensor | 1/2.9 Inch, 2 MP |
| FOV | Diagonal: 90°
Horizontal: 80° |
| Working Voltage | 12 V |
| Power Consumption | 2.5 W |
| Video Recording Resolution | 1080p (1920*1080) @ 30 fps
720p (1280*720) @ 30 fps |
| Recording Bitrate | 12 Mbps |
| Video Recording Format | MP4 |
| Supported TF / SD Card Type | MicroSD Class10
Less than 32GB |
| File Storage Format | FAT32 |
| Dimensions | 42 x 42 x 25 mm |
| Weight | 23 g |
| Working Temperature | -10℃ ~ 50℃ |
Air Unit HDMI Input Converter (Optional, packed with MK32 / MK15 HDMI combo)
| Video Input | Micro HDMI |
| Video Output | Ethernet |
| Working Voltage | 12 V |
| Power Consumption | 3 W |
| Video Recording Resolution | 1080p (1920 × 1080) @ 30 fps
720p (1080 × 720) @ 30 fps |
| Video Storage Birate | 12 Mbps (H265 codec) |
| File Storage Format | FAT32 |
| Video Recording Format | H265 |
| Supported TF / SD Card Type | MicroSD Class10, Less than 32GB |
| Dimensions | 42*41*11 mm |
| Weight | 26 g |
| Working Temperature | -10℃ ~ 50℃ |
Ethernet to HDMI Output Converter (Optional)
| Video Input Port | Ethernet |
| Video Output Port | Micro-HDMI |
| Working Voltage | 8.4 ~ 25.2 V |
| Power Consumption | Average: 1.5 W
Summit: 5 W |
| Video Recording Resolution | 1080p (1920*1080) @ 30 fps
720p (1280*720) @ 30 fps |
| Video Recording Bitrate | 12 Mbps |
| Supported File System | FAT32
ExFAT |
| Video Format | MP4 |
| Supported TF / SD Card Type | Micro-SD Class10, max 128 GB |
| Product Dimensions | 42 x 37 x 13 mm |
| Product Weight | 25 g |
| Working Temperature | -10 ~ 50℃ |
