2.4GHz 2 Watt Signal Amplifier for DJI Phantom 1 & 2 (White)

This is an easy to fit mini signal amplifier module designed to fit the DJI transmitters as used with the Phantom 1 and 2. The range can effectivily be doubled once this unit is fitted and a range of up to 4km has been achieved.

The amplifier can automatically switch between transmitting and receiving mode without damaging the 2.4GHz radio control unit. This is due to its built in high speed auto switching circuit.

It can be applied to other transmitting and receiving devices that utilise the 2.4GHz frequency, such as other 2.4GHZ radio units and WiFi routers etc.

Features:
• Small and lightweight
• Easy to install
• 2 watts of power
• Able to transmit and receive

Specs:
Receiving Gain: 10dB
Transmitting Gain: 11dB
Acceptable Noise Factor: ≤3.0dB
Input Power Range: 4dBm~20dBm
Peak Power: 33dBm-2W (input power plus amplifier power)
Input Voltage: 3.7~5.5V
Dimensions: 36x26x4.8mm (LxWxH)
Standard Antenna Gain: 6DBI

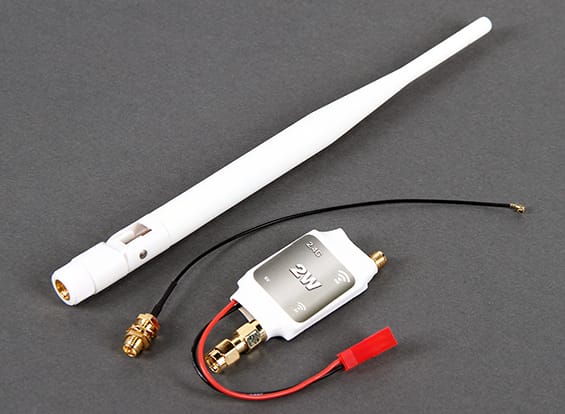

Included:
1 x Dipole antenna
1 x 2 Watt amplifier with JST power connector
1 x RP-SMA to SMA adapter
1 x U.FL to RP-SMA cable
