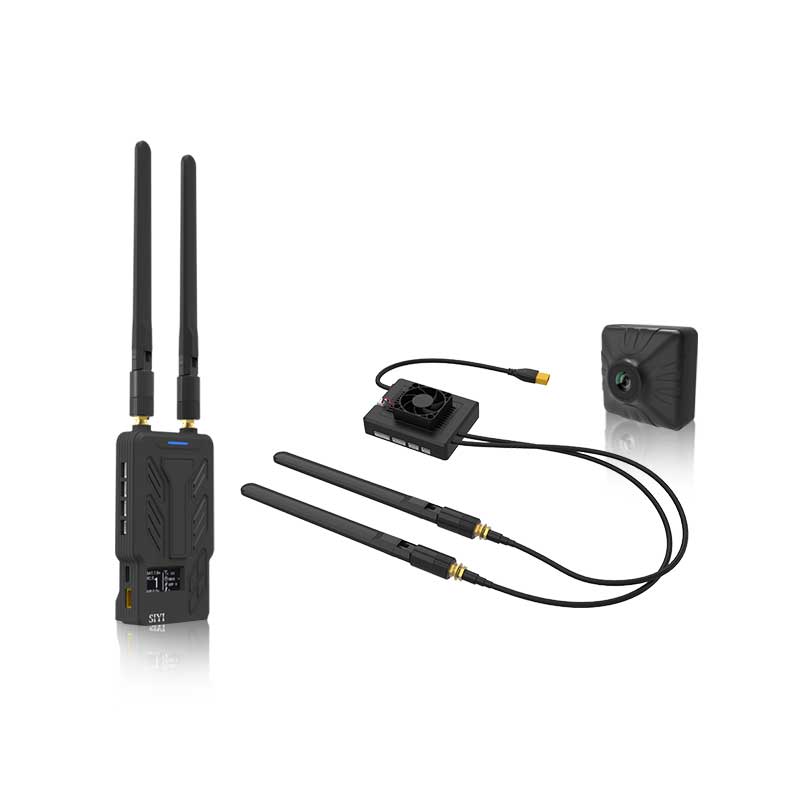

SIYI HM30 Long Range Full HD Digital Image Transmission | FPV System 1080p 60fps 150ms | SBUS PWM Mavlink Telemetry OSD | 30KM CE FCC

₹34,999.00

Rated 0 out of 5

Full HD Digital Image Transmission in both directions
Transmission range of up to 30KM – Low latency of 150ms for smooth video streaming at 1080p@60fps
Supports H.264 & H.265 decoding for high-quality video playback
Equipped with an OLED touchscreen for easy navigation and control
Features FPV OSD for real-time flight data overlay
Dual RC & RC Relay capability for enhanced control options
Integrated IP camera for capturing aerial footage
Comes with a long-range antenna for extended signal coverage
Supports PD Fast Charging for quick and convenient power replenishment
Compatible with PIX and QGC for seamless integration with flight control systems.

In stock

Description

Max Transmission Range	30 km (Unobstructed, free of interference)
Channels	16 communication channels
Datalink Compatible Flight Controllers	PX4 / ArduPilot Open-Source Flight Controllers: SIYI N7, etc. INAV Open-Source Flight Controllers
Video Stream Compatible GCS (Android)	SIYI Factory Apps: SIYI FPV Open-Source GCS: QgroundControl Mission Planner
Video Stream Compatible GCS (Windows)	Open-Source GCS: QGroundControl Mission Planner (H264 only)

Monitor	0.96-inch OLED Display
Compatible Battery Type	NP-F550 / F750 / F950 Series Quick Release Batteries (HM30 fly more combo comes with NP-750 quick release battery)
Fast Charging Protocol	PD 30W
Antenna Gain	Standard Omni Antenna: 5 dBi Standard Long Range Antenna: 11 dBi (Optional) Lollipop Antenna: 5 dBi
Interface & Ports	S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin) Datalink Output: UART (GH1.25 4-pin) Ethernet Port: LAN (GH1.25 4-pin) Power Output: VCC (GH1.25 4-pin, without bucket) GCS Datalink Communication: Type-C Firmware Upgrade: Type-C Charge: Type-C Power Input: PWR (XT30) Tripod Connector: 1/4-inch Screw Hole
Product Dimensions (Battery and antennas excluded)	109 x 61 x 28 mm
Product Dimensions (Battery and antennas excluded)	132 g
Waterproof Level	IP53
Working Temperature	-10 ~ 50℃

Signal Output	16 channels of S.Bus 5 channels of PWM
Interface & Ports	S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin) Datalink (to FC): UART (GH1.25 4-Pin) PWM Channel 1 to 5: PWM (GH1.25 6-Pin) Video Input / Network Communication: LAN (GH1.25 8-Pin) Firmware Upgrade: Type-C
Antenna Gain	Omni Antenna: 5 dBi (Standard) Lollipop Antenna: 5 dBi (Optional)
Working Voltage	HM30 Air Unit: 3S ~ 6S / 12.6 ~ 25.2 V 4S to 18S Power Module (Optional): 16.8 ~ 75.6 V
Power Consumption	HM30 Air Unit: – Average: 2.8 W – Summit: 12 W HM30 Air Unit + 4S to 18S Power Module: – Average: 3.2 W – Summit: 12 W
Dimensions (Antenna Excluded)	70 x 55 x 16 mm (fan included)
Weight (Antenna Excluded)	HM30 Air Unit: 74 g HM30 Air Unit + 4S to 18S Power Module: 109 g
Working Temperature	-10 ~ 50℃
