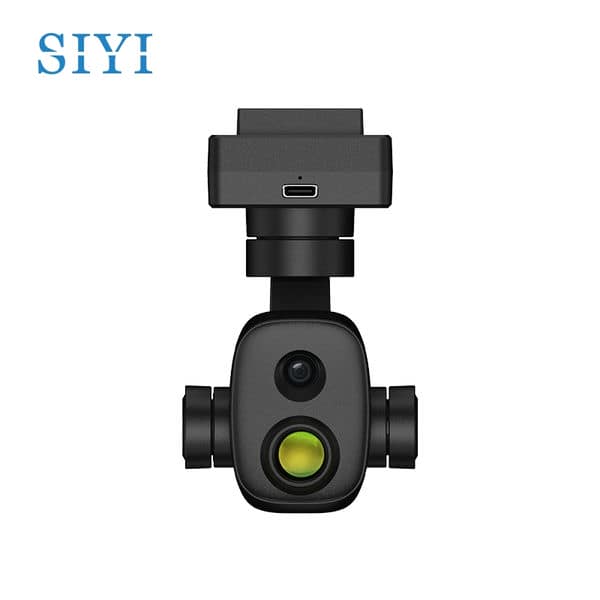

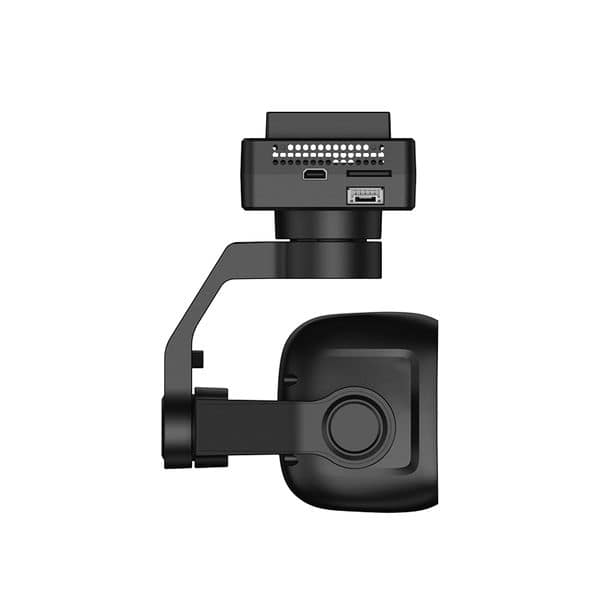

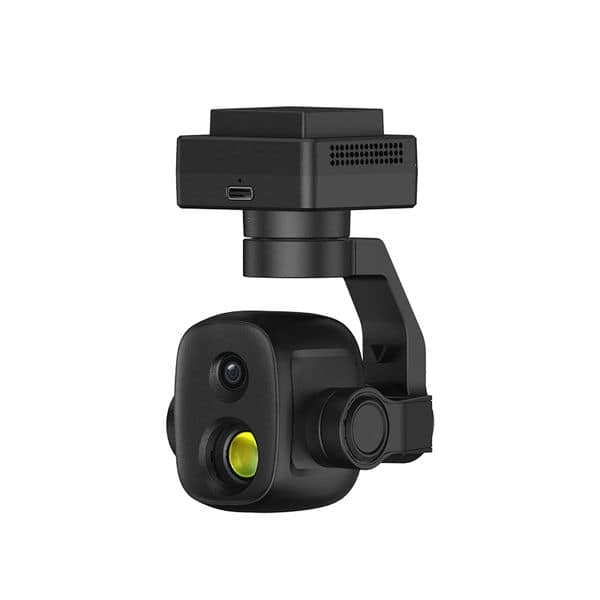

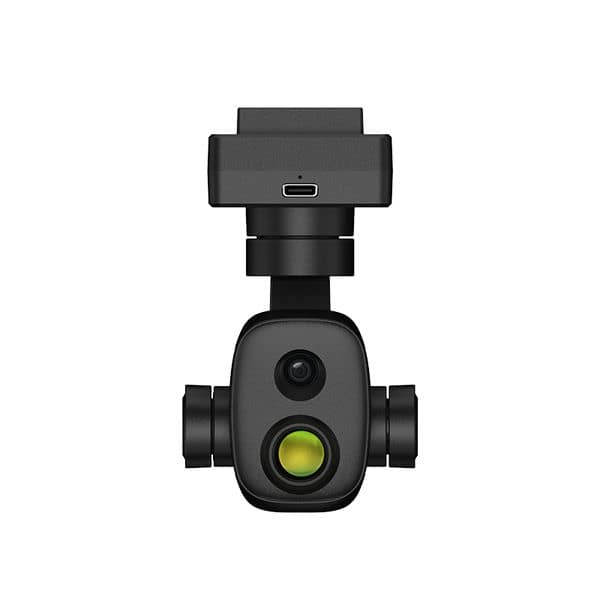

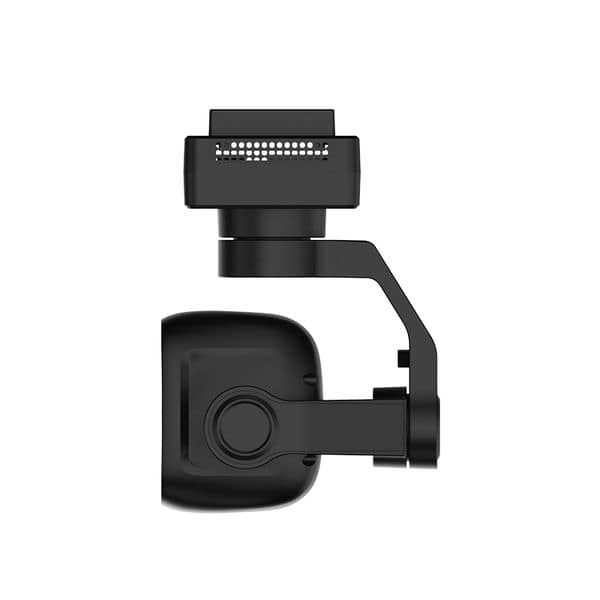

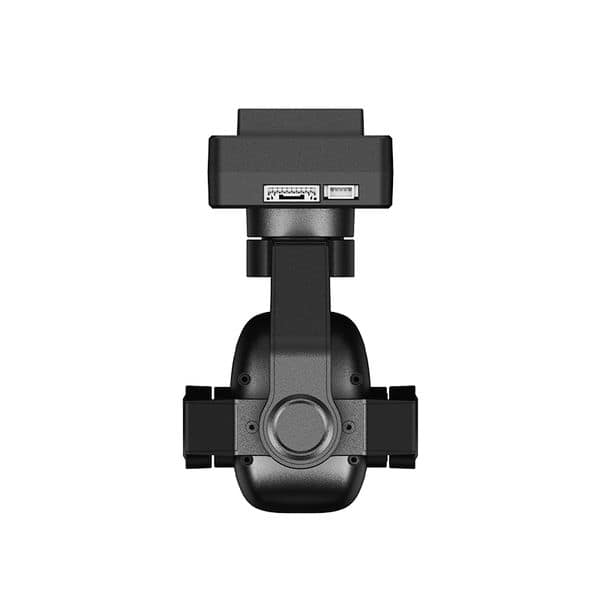

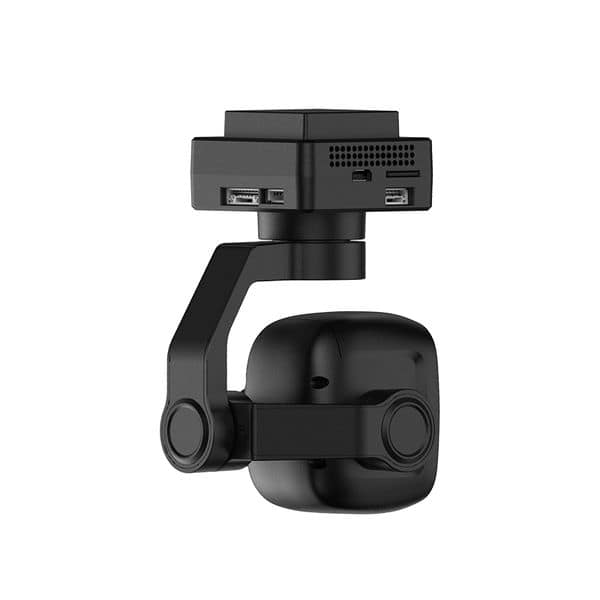

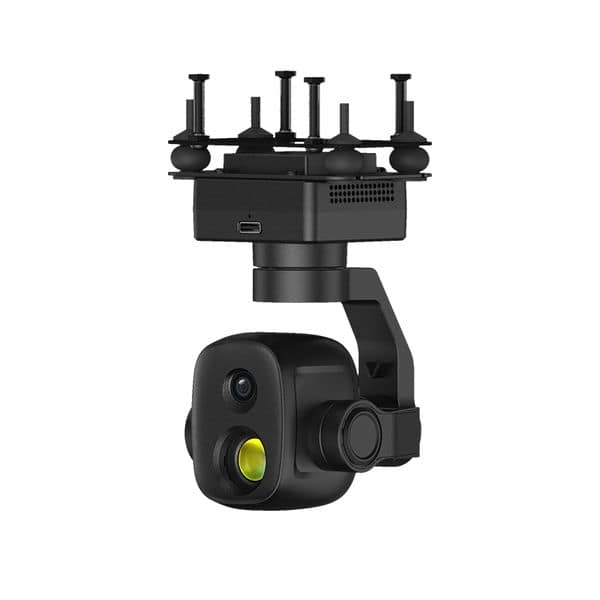

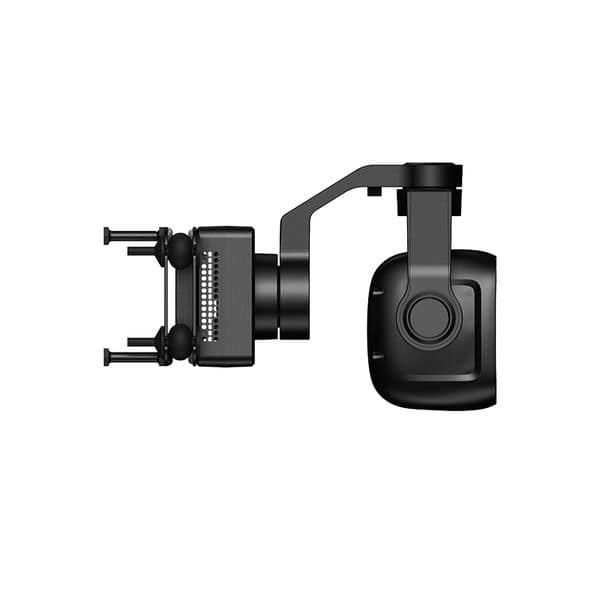

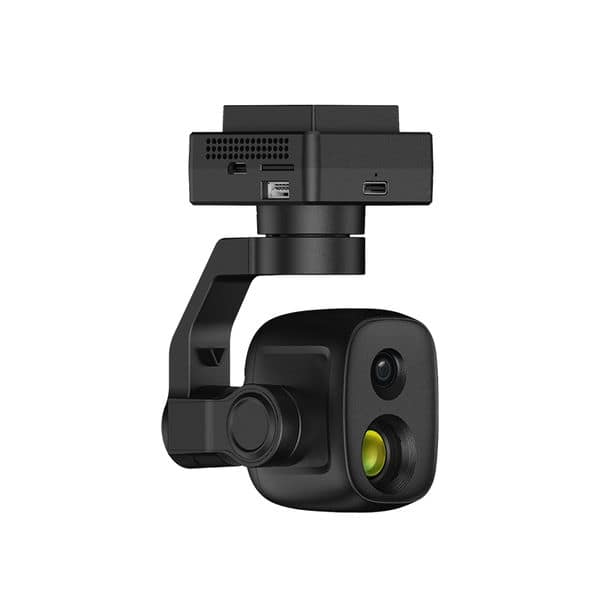

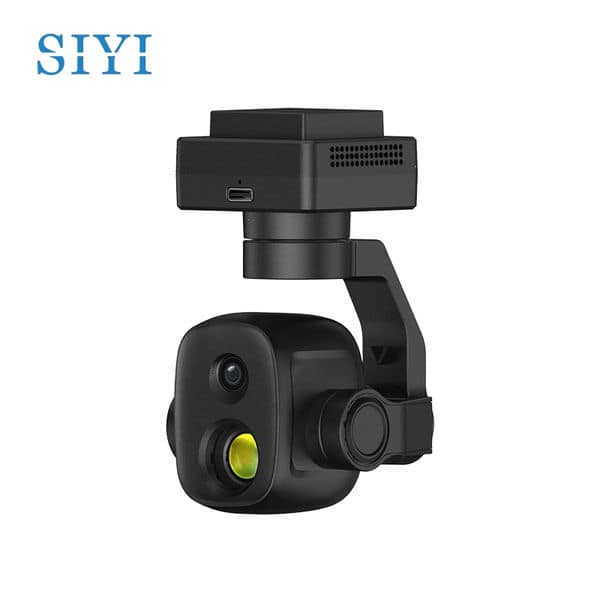

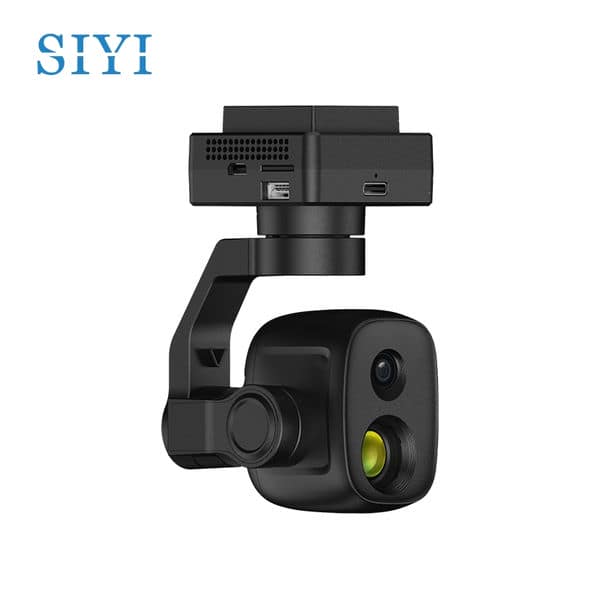

SIYI ZT6 Dual Sensors 4K Digital Zoom Gimbal Camera 640 x 512 Thermal Imaging Drone Camera
₹315,000.00 ₹325,000.00
- Thermal imaging with a high resolution of 640 x 512 for temperature measuring
- Capable of recording and capturing photos in 4K Ultra HD
- Features split image and synchronized zoom functions
- Allows for a 540-degree rotation on the yaw axis

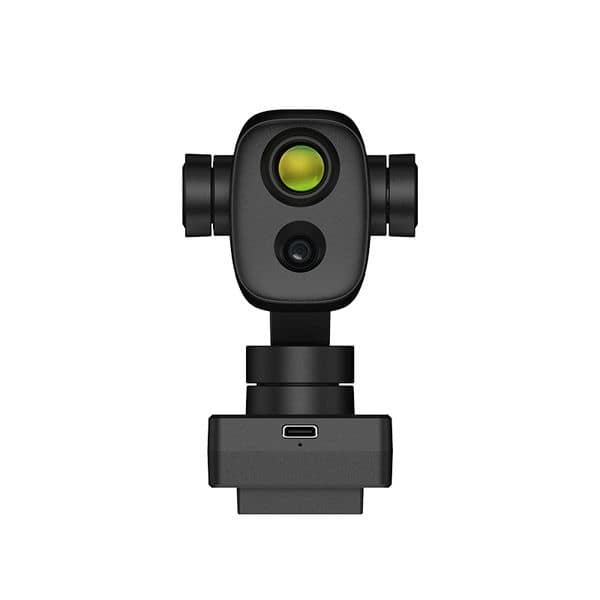

- Includes a nose mode and upside down mode for versatile usage
- Compatible with ArduPilot and PX4 (Mavlink) systems
- Offers Ethernet, HDMI, and CVBS video output options
- Utilizes a high accuracy and high collaboration control algorithm for precise control.
Out of stock
Description
Specification for SIYI ZT6 Dual Sensors 640 x 512 Thermal Imaging Drone Camera
| Video Output Port | Ethernet / CVBS Micro-HDMI |
| Control Signal Input Port | S.Bus UART Ethernet UDP / TCP |
| Control Signal Output Port | S.Bus |
| High Accuracy 3 Axis Stabilization | Yaw Pitch Roll |
| Working Voltage | 11 ~ 25.2 V |
| Power Consumption | Average 6.5 W Summit 15 W |
| Waterproof Level | IP53 |
| Working Temperature | -10 ~ 50 ℃ |
| Dimension | 73.5 x 75 x 131.5 mm |
| Weight | Excluding Anti-Vibration Board: 177 g Excluding Anti-Vibration Board: 197 g |
Gimbal
| Angular Vibration Range | ±0.01° |
| Controllable Pitch Angle | -90° ~ +25° |
| Controllable Yaw Angle | -270° ~ +270° |
| Rotatable Roll Angle | -45° ~ +45° |
Optical Camera
| Lens | Fixed Focal Length 6x Digital Zoom |
| Equivalent Focal Length | 20 mm |
| Image Sensor | Sony 1/2.7 Inch CMOS 8 MP Effective Resolution |
| Aperture | F2.8 |
| FOV | Diagonal 93° Horizontal 84.5° |
| Video Recording Resolution | 4K (3840 x 2160) @ 30 fps 2K (2560 x 1440) @ 30 fps 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
| Still Photo Resolution | 4K (3840 x 2160) |
Thermal Imaging Camera
| Thermal Sensor | Uncooled VOx Microbolometer |
| Resolution | 640 x 512 |
| Zoom | 2X Digital |
| Lens | Focal Length: 13 mm Aperture: F1.0 Fixed Focus Athermalization |
| Wavelength Range | 8 ~ 14 um |
| Temperature Measuring Range | High Gain: -20 ~ +150℃ Low Gain: 50 ~ +550℃ |
| Temperature Measuring Accuracy | ±2℃ (-20 ~ +150℃) ±5℃ (50 ~ +550℃) |
| Temperature Measuring Mode | Point Anywhere Measurement Full Image Measurement Selected Box Measurement |
General Camera Specs
| Video Storage Bitrate | 15 Mbps (H.265 Codec) |
| File Storage Format | FAT32 ExFAT |
| Image Format | JPG |
| Video Format | MP4 |
| Supported MicroSD Cards | MicroSD Class10, Max 256 GB |
| Still Photography Mode | Single |
| White Balance | Auto |
Additional information
| Weight | 1 kg |
|---|
