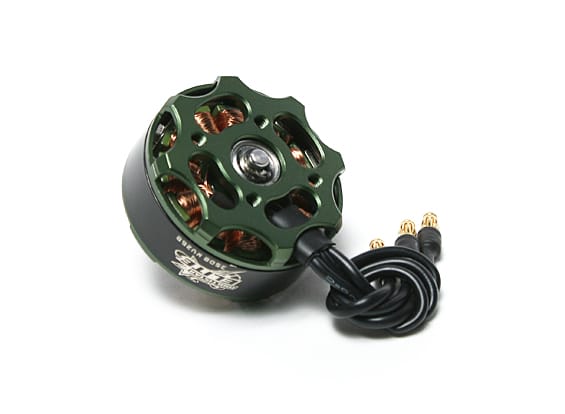

Multistar Elite 3508-268KV High Voltage Endurance Motor

4,099.00

In stock

Purchase this product now and earn 410 Reward Points!

Frequently Bought Together

The Turnigy Multistar Elite Outrunners are designed with one thing in mind – maximizing Multi-rotor performance! The new Multistar Elite motors are the new standard in Multirotor performance. Each Elite motor is built for a specific type/application allowing for further refinement and efficacy/power to be optimized.

Multistar Elite motors are more than a fancy name and new dark green color.. Built using the highest quality components from EZO Japan bearings, n45sh Magnets, .2mm laminations, 180deg oxygen free copper wire, .005g balancing, Perfect wind laid down and 100% QC, and then the design of each motor are also evaluated for their type application and everything from their mounting, to the prop type adapters are taken into consideration. The Elite motors are truly works of art

The Elite 3508 268kv Has been optimized for 8s operation and a 12~14inch propeller.  The Motor comes with removable/replaceable knurled prop shaft and direct bolt style propeller mounting options. The high efficiency and low amp draw of HV setups take advantage of higher density/low C batteries, and offer record breaking flight times.

Multistar Elite is unmatched in quality and value, and the performance speaks for its self.

Features:
• EZO Japan Bearings
• N45SH Magnets
• .2mm Laminations
• 180deg oxygen free Copper wire
• .005g Or better balancing
• Perfect laydown windings
• 100% QC

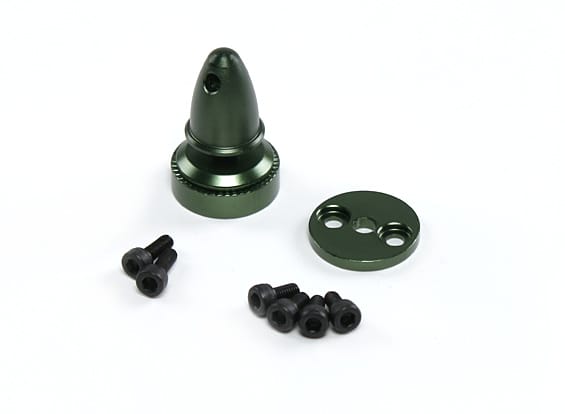

• Replaceable CW/CCW prop adapter and direct bolt prop supported

Specs:
KV(RPM/V): 268KV
Lipo cells:  4-8 s
Max current:  330W
Max Amps:  11A
No Load Current:  0.13A/10V
Internal Resistance:  0.618 ohm
Number of Poles:  12/14
Dimensions(Dia.xL): 35×8 mm
Motor Shaft:  4mm
prop shaft: 5mm
Weight: 96g
bolt hole spacing: 19*25 mm
Lamination thickness: 0.2 mm
Magnets:N45 SH
Bearing: EZO Japan
Balancing spec: 0.005g

Prop data:

Multistar 3508 268KV @ 32V (8s)
12.5×6           50%  800g 4A      100% 1200g 7A
13×3.8 SF      50%  580g 1.5A    100% 1320g 4.9A
13×4.7 SF      50%  620g 2.2A    100% 1410g 5.2A
13×5.5 C        50%  670g 2.7A    100% 1600g 6.8A
14×4.7           50%  710g 3A       100% 1460g 7.8A

Multistar 3508 268KV @ 25V (6s)
14×4.7           50%  598g 2.4A   100% 1030g 5.6A
15×5 M.S.W   50%  712g 2.8A   100% 1144g 5.8A

A 680mm Hex such as the Tarot or 680UC pro Quanum AUW with battery and gimbal weighs 2.5~3.2Kg @ 3Kg/6(motors)=500g lift needed per motor to hover.

Hover efficiency 3508 268KV @ 32V (8s) 500g thrust x 6 =3K
12 wood                        1.96A
11×5.5 APC speed          2.3A
13×3.8 sf                      1.5A        (X 6= 9A hover)
13×4.7 sf                      1.6A
13×5.5 C                       1.6A
13×6.5 APC                   1.9A
14×4.7 sf                      1.4A        (X 6= 8.6A hover)
Hover efficiency 3508 268KV @ 25V (6s) 500g thrust x 6 =3Kg
15×5 Multistar White     1.7A         (x 6=10.2A hover)
14×4.7 SF                      2A

This sub 10A hover can allow the use of high density low discharge batteries. The increased capacity vs weight will increase flight time. Flights over 1 hour are possible with special batteries such as the Panasonic 18650 or GEB cells.
