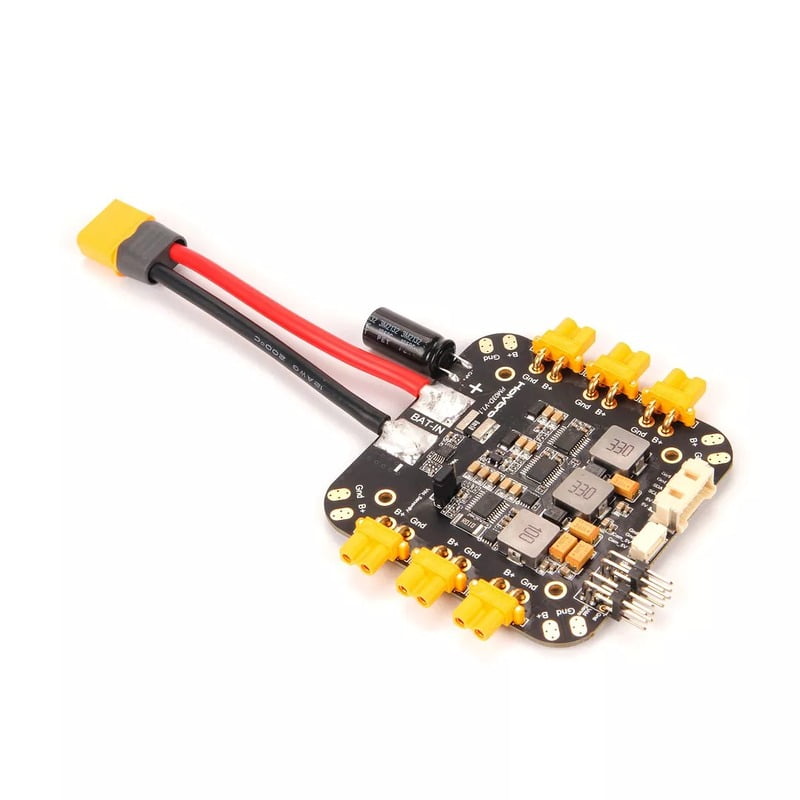

Holybro PM03D Power Module

Description

Features :-

• Integrated current and voltage sensing.
• High current rating (60A continuous/120A peak).
• Wide 2S to 12S LiPo input.
• Selectable 5.0V or 8.0V BEC output.
• Powerful 3 Amp continuous BEC.
• XT60 (or XT30) battery connector.
• Provides power to flight controller.
• Compact and lightweight design.
• Accurate battery telemetry for autopilot.
• Essential for safe drone power management.

Technical Specifications :

• Manufacturer: HolyBro
• Brand: HolyBro
• Generic Name: Power Module || PM || Power Management Unit || Current Sensor || Voltage Sensor || BEC || Battery Eliminator Circuit || Power Board || Drone Power Supply || Autopilot Power || Flight Controller Power
• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
• Ideal For: HolyBro Pixhawk Flight Controllers || Pixhawk 4 / 6C / 6X || ArduPilot Drones || PX4 Drones || Medium to Large Drones || FPV Drones (requiring robust BEC) || Fixed-Wing UAVs || Custom Drone Builds || Robotics Projects (requiring regulated power) || Educational Robotics

Package Details:-

• 1x HolyBro PM03D
• Power Module
• 1x 6-pin JST-GH cable
• Maximum input voltage: 6S battery
• Rated current: 60A
• Max current: 120A (<60 Sec)
• Max current sensing: 164A

Connections:-

• XT-60 for battery
• XT-30 for motor & peripheral device (battery voltage)
• Solder pads in each corner (battery voltage)
• CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)
• JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
• 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
• 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
• Dimension: 84*78*12mm (excluding wires)
• Mounting: 45*45mm
• Weight: 59g
