Genuine 500A ultra-large current distribution board for Drone/UAV

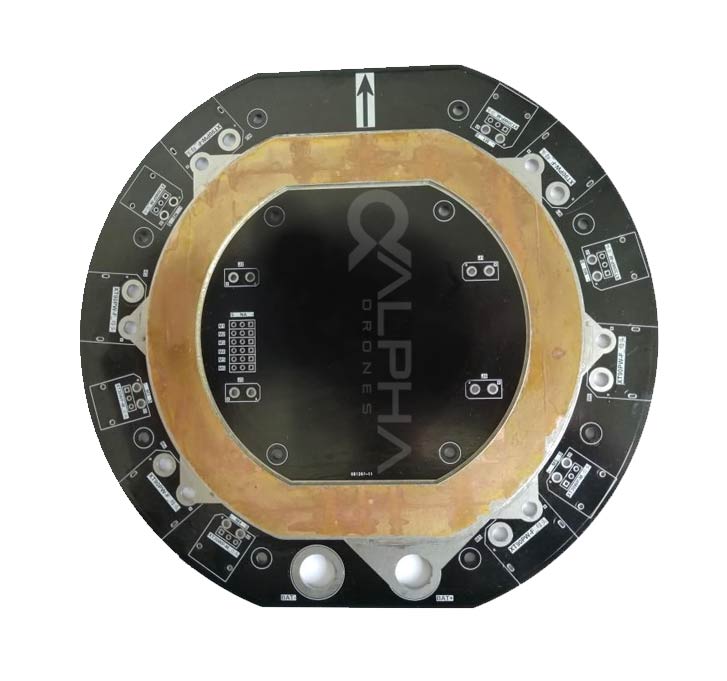

APL-500A Ultra-High Current Power Distribution Board

The APL-500A is Alpha’s first ultra-high current power distribution board, designed with an enhanced architecture to meet the demanding requirements of large-load agricultural drones. With a continuous current output capacity of 500A, it delivers reliable and stable performance in high-power applications, making it the preferred choice for plant protection drones.

All components and accessories used in the APL-500A are non-standard, custom-designed parts, manufactured using specialized processes to ensure durability, precision, and high efficiency.

Product Specifications

• Input Voltage: < 240V (conservative rating)

• Continuous Current Capacity: 500A (conservative rating)

• Input Method: 10mm diameter through-hole soldering

• Output Options:

  • 8-way XT90 horizontal female connectors (soldered)

  • Direct wire soldering

• Signal Interface Options:

  • 2.54mm pin connector

  • XT30 horizontal male connector (XT30 soldering recommended)

• Overall Dimensions: 17 cm × 15.9 cm

• Installation Dimensions: 5 cm × 7 cm (refer to installation drawing for detailed layout)

• Mounting Hole Diameter: 3 mm

Note:

      1. During the welding process, ensure that the solder is fully melted to avoid the problem of overcurrent caused by poor welding.

      2. The shipment does not include all connectors, and the bare board is shipped.
