Description

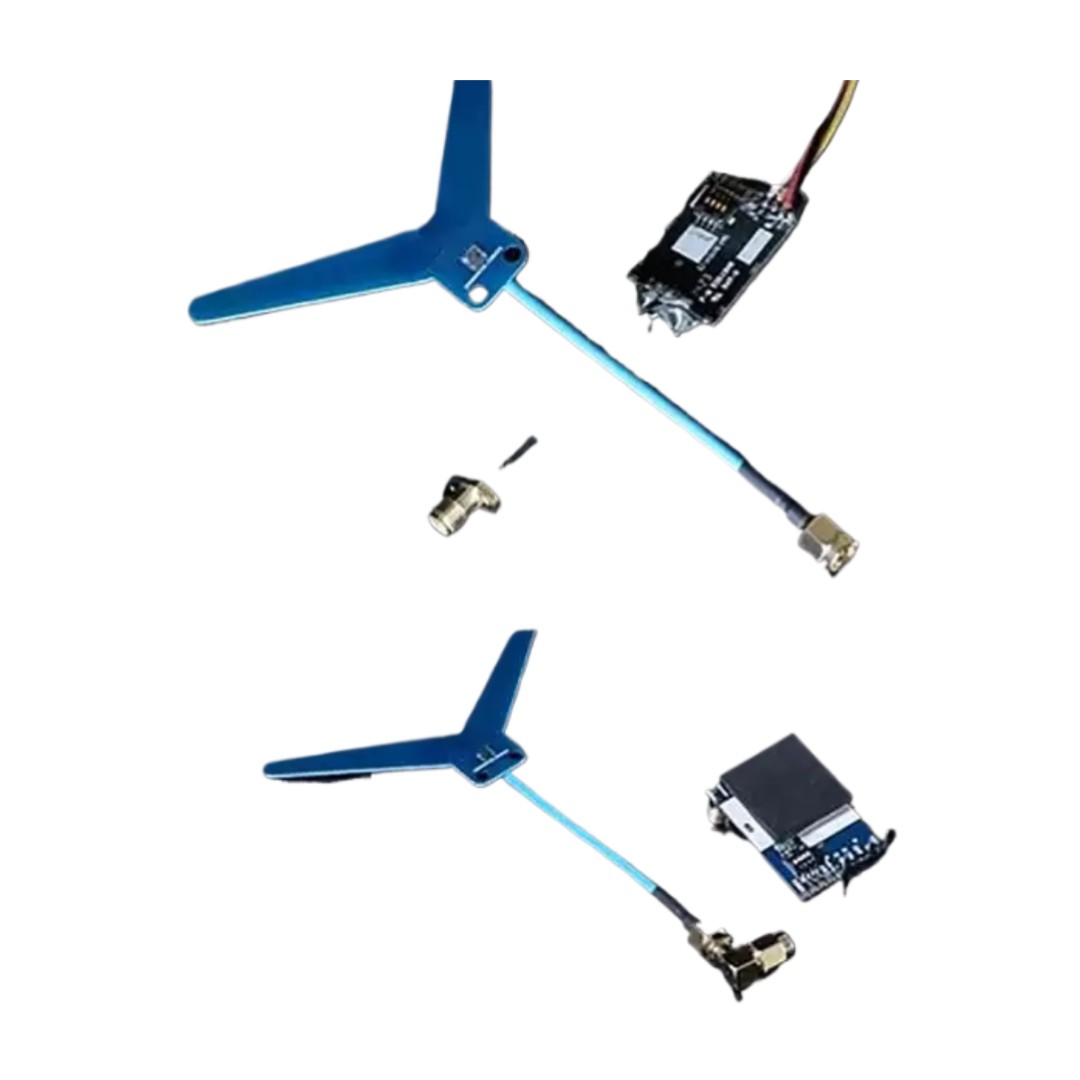

The 1.2GHz 8-channel 700mW signal transmission FPV system includes a transmitter and receiver combo, complete with an antenna. It operates within a voltage range of 3.7-5V and is designed for audio and video applications in RC drones.
- This FPV system features a 1.2GHz frequency with a 700mW transmission power, comprising an 8-channel transmitter and receiver set, along with an antenna. It functions on a voltage range of 3.7-5V, suitable for audio and video transmission in remote-controlled drones.
- Featuring a 1.2GHz frequency and 700mW power output, this 8-channel FPV system includes a transmitter-receiver combo and an antenna. It operates on a voltage range of 3.7-5V, making it ideal for audio and video transmission in RC drones.
- The 1.2GHz 8-channel FPV system offers a 700mW signal transmission capability, consisting of a transmitter and receiver combo with an antenna. It operates efficiently within a voltage range of 3.7-5V, designed for audio and video applications in RC drones.
- This FPV system operates at 1.2GHz with a transmission power of 700mW, featuring an 8-channel transmitter and receiver combo along with an antenna. It is compatible with a voltage range of 3.7-5V, perfect for audio and video transmission in remote-controlled drones.
1.2Ghz 700mw wireless sound and video transmitter working voltage 3.7-5V. VOLUME 28X21X3 MM. Can operate from a single battery
8 channels to choose from
CH1:1080mhz
CH2:1120mhz
CH3:1160mhz
CH4:1200mhz
CH5:1240mhz
CH6:1280mhz
CH7:1320mhz
CH8:1360mhz
1. Working frequency range: 1.0G-1.360GHz
2. Transmission frequency group
1080MHz 1120MHz 1160MHz 1200MHz
1240MHz 1280MHz 1320MHz 1360MHZ
3. Video signal standard: PAL/NTSC.
4. Audio input impedance: 1KQ video input impedance: 75, video output: 1Vp_p
5. Input voltage: DC3.7-5V
6. Working temperature: -20C°+60C°.
7. Module size: 40*27*4mm
8. Module weight: 6g.
