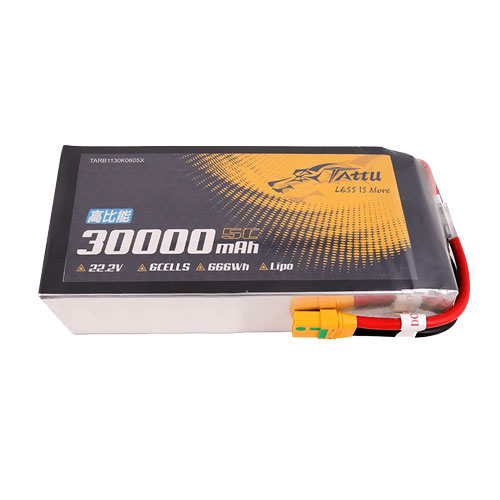

Tattu Semi-Solid 6s 30000Mah 5C Battery

Description

Tattu Semi-Solid 30000mah 6S 22.2V 5C Lipo Battery for UAV Agriculture Drones

Features:

1. Combination method: 6S1P (six strings and one parallel)

2. Nominal capacity: 30000MAH@0.5C (discharge)

3. Minimum capacity: 28800MAH@0.5C (discharge)

4. Nominal voltage: 22.2V (CELL 3.7V)

5. Battery shipping voltage: 22.5-23.1V (CELL 3.75-3.85V)

6. Internal resistance: 7.76±1.5MΩ

7. Size: 66.5×92.5x209MM

8. Battery weight 2480±100G

9. Standard charging: 6.0A CC (constant current) charging to 25.2V,

10. Fast charging: continuous current: 15A, continuous voltage: 25.2V cut-off current: 0.02C;

11. Charging time standard charging: 7.5 Hours; fast charging: 3.0 hours

12. Maximum continuous discharge current: 6000MA (0.2C) 15000MA (0.5C) 60000MA (2C)

13. Maximum instantaneous discharge current: instantaneous current: 100A, duration: ≤3S;

14-rate discharge performance ≥ 27.0MIN Standard charge/stand still for 5 minutes and discharge to 17.1V with 60A;

Package Includes:

1 x Tattu Semi-Solid 30000mah 6S 22.2V 5C Lipo Battery
