Description

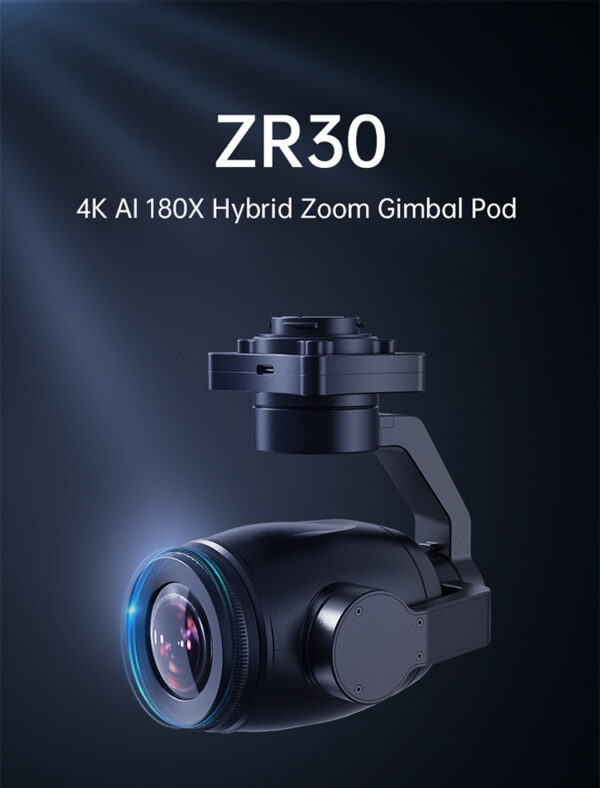

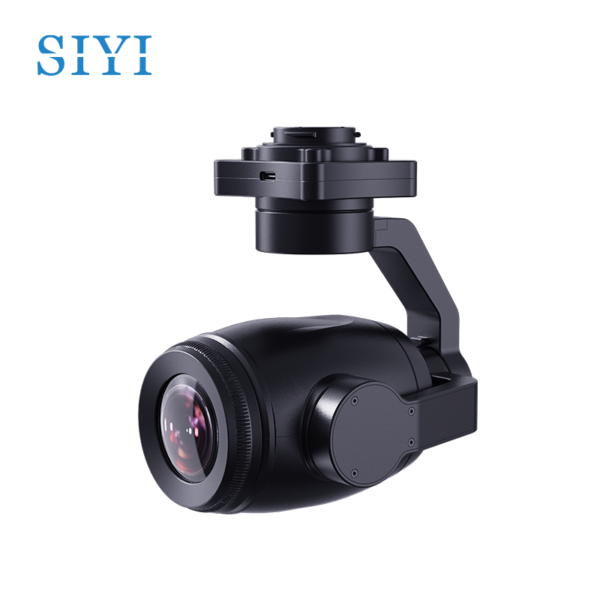

Overall Specification of SIYI ZR30 :-
- Model: ZR30
- Video Output Port: Ethernet, Micro-HDMI
- Control Signal Input Port:
- – S.Bus, UART
- – UDP (Ethernet)
- Working Voltage: 11 to 25.2 V
- Power Consumption: Summit 20 W
- Working Temperature: -10 ~ 50 ℃
- Dimension: 132*100*159 mm (including the quick release board)
- Weight: 628 g (including the quick release board)
Quick Release Board-
- Dimension: 82*65*18 mm
- Weight: 38 g
Gimbal-
- Angular Vibration Range: ±0.01°
- Controllable Pitch Angle: -90° to +25°
- Controllable Yaw Angle: -270° to +270°
- Roll Angle: -45° to +45°
Camera-
- Lens: 30X Optical Zoom (180X Hybrid Zoom)
- Focal Length: 4.5±5% to 148.4±5% mm
- Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
- Aperture: F1.3±5% to F2.8±5%
- FOV: Diagonal 65.4°, Horizontal 58.1°
- TF Recording Resolution:
– 4K (4096 x 2160) @ 25 fps
– 2K (2560 x 1440) @ 30 fps
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps - Video Storage Bitrate: 12 Mbps (H.265 codec)
- File Storage Format: FAT32
- Image Format: JPG
- Video Format: MP4
- Supported MicroSD Cards: MicroSD Class10, Max 128GB
- Still Photography Mode: Single
- Metering Mode: Evaluative metering
