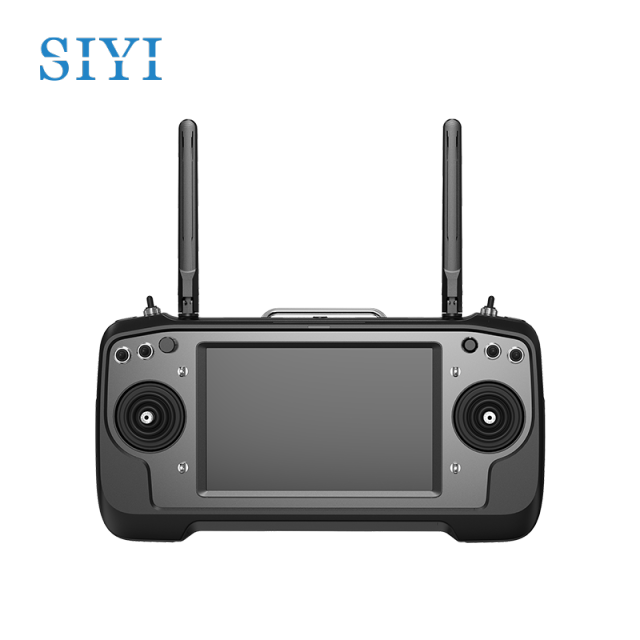

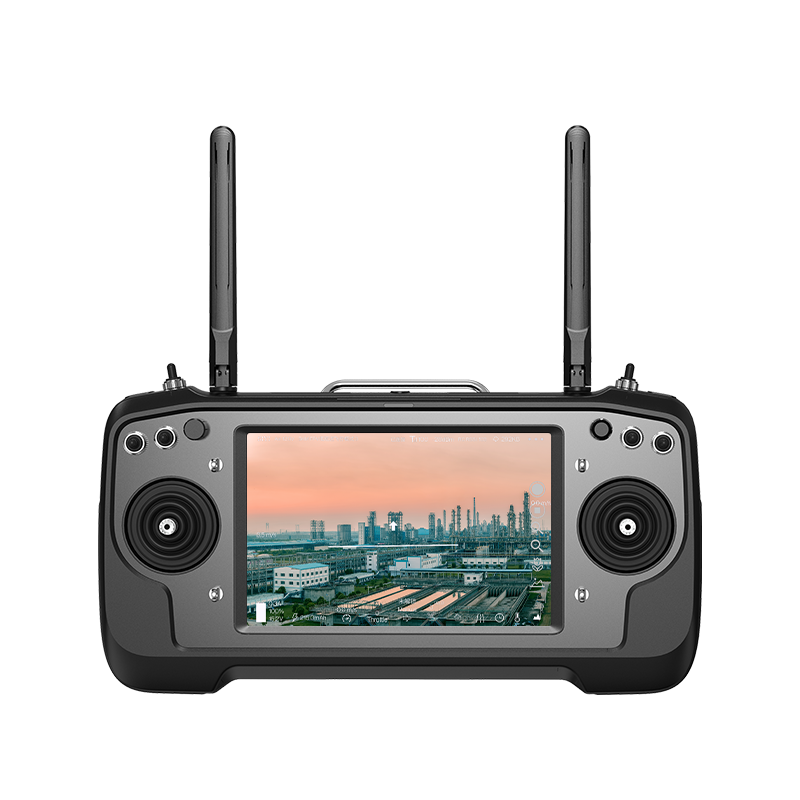

SIYI MK32 Enterprise Handheld Ground Station Smart Controller with 7 Inch HD High Brightness LCD Touchscreen Dual Full HD Digital Image Transmission

Description

Specifications Of Siyi Mk32

• Model: MK32
• Max Transmission Range: 15 kilometers (unobstructed, free of interference)
• Channels: 16 physical channels, 16 communication channels
• Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
• Image Transmission Compatible Android GCS:
• QGroundControl
• SIYI FPV
• Image Transmission Compatible Windows GCS:
• QGroundControl
• Mission Planner (H264 only)

Ground Station

• Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
• System: Android 9.0 OS, 4G RAM & 64G ROM
• Dimension (antenna overlapped): 308 x 148 x 72 mm
• Weight: 1440 g
• Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
• Fast Charging Protocol: PD 30W
• Charging Time: 3.5 Hours (30W PD Charging)
• Battery Life: 10 hours
• Interface & Ports:
  – Video Output:  Standard HDMI
  – External Device: USB-A
  – MIC Input: Top Audio Port
  – Charging: Type-C
  – Firmware Upgrade: Type-C
  – File Transfer: Type-C / USB-A
  – Mobile Network: SIM Card Slot
  – External Storage: TF Card Slot / USB-A
  – Communication: LAN (Ethernet)
  – RC Input / Output: Bottom Audio Port
• Waterproof Level: IP4X
• Working Temperature: -10 to 50℃

Air Unit

• Signal Output: 16 channels of S.BUS, 5 channels of PWM
• Interface & Ports:
  – Remote Control: SBUS (GH1.25 3-Pin)
  – Datalink (to FC): UART (GH1.25 4-Pin)
  – PWM Channel 1 to 5: GH1.25 6-Pin
  – Video Input / Network Communication: Ethernet (GH1.25 8-Pin)
  – Firmware Upgrade: Type-C
• Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
• Weight (antenna excluded): 74 g
• Antenna Gain: 5 dBi
• Power Input: 12.6 to 25.2 V (expandable to up to 75.6V with BEC)
• Working Temperature: -10 to 50℃

Air Unit HDMI Input Converter (Optional or Packed with HDMI Combo)

• Video Input Port: Mini HDMI
• Video Output Port: Ethernet
• Working Voltage: 12 V
• Power Consumption: 3 W
• TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps
• Video Storage Bitrate: 12 Mbps
• File Storage Format: FAT32
• Video Format: H.265
• Supported MicroSD Cards: MicroSD Class10, Max 32GB
• Working Temperature: -10 to 50℃
• Dimensions: 42 x 41 x 11 mm
• Weight: 26 g
