Description

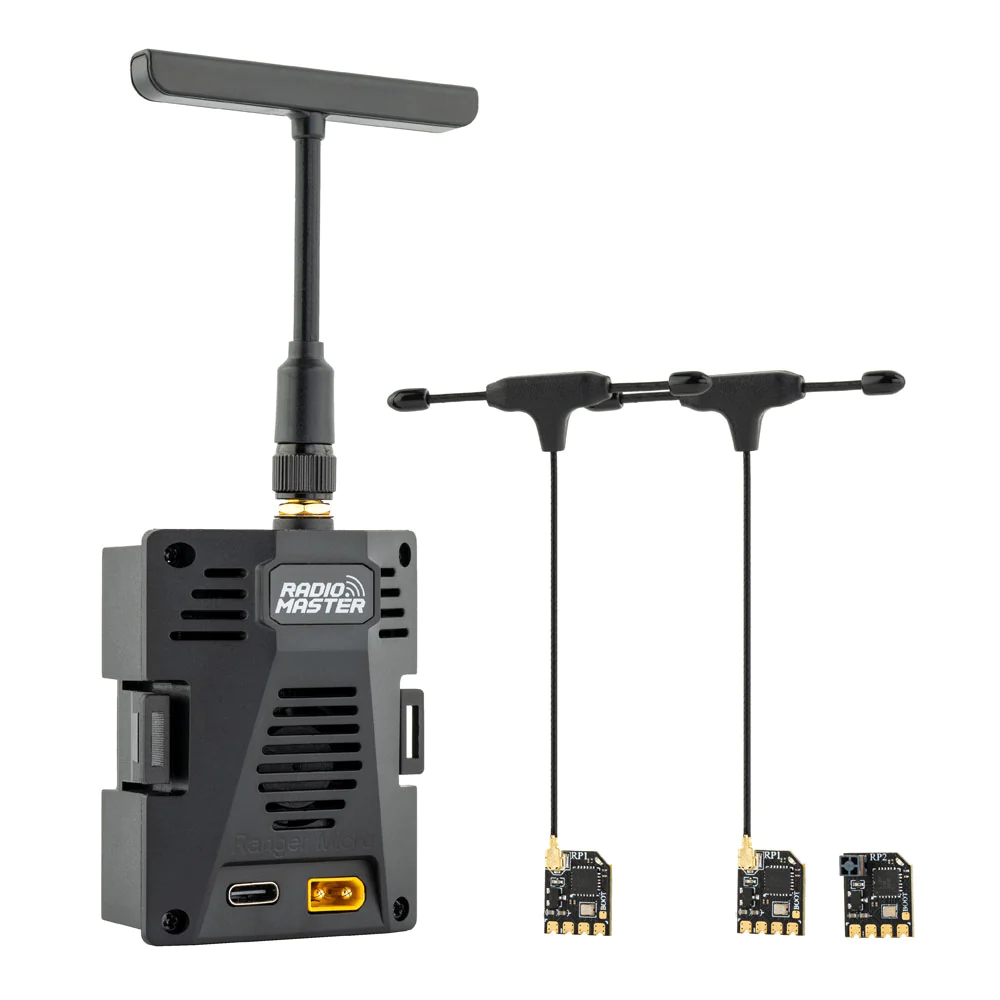

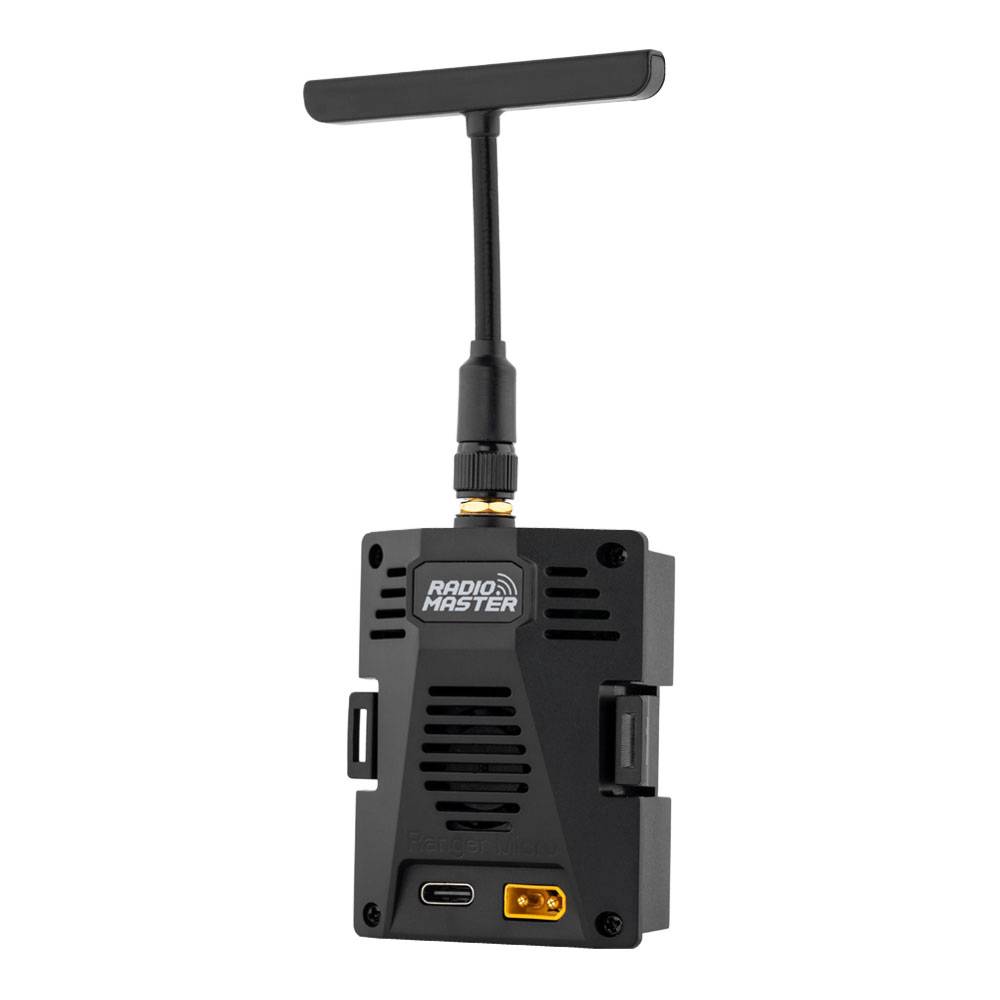

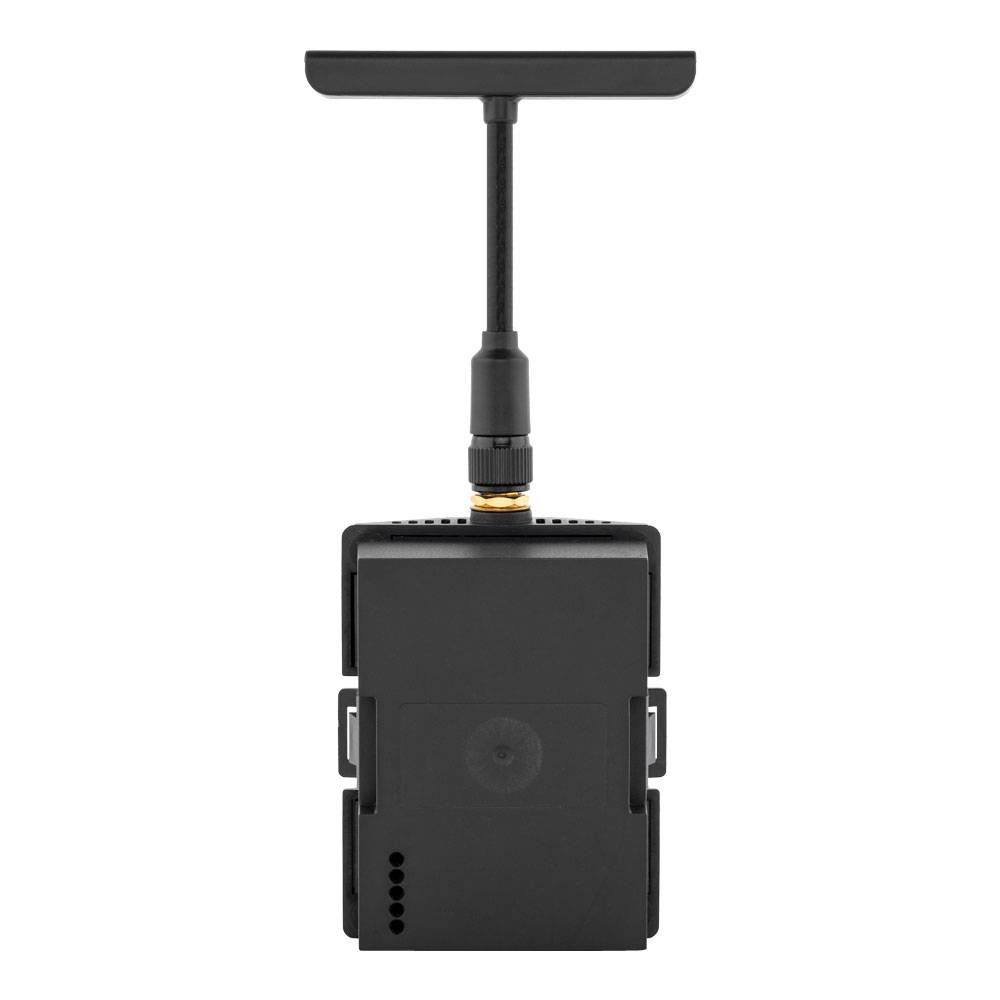

The RadioMaster Ranger Micro 2.4GHz ELRS Module features a JR module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.
Features
- The JR connector supports TX16S MKII/TX12 MKII or JR standard 5pin socket radios.
- Micro ExpresssLRS 2.4GHz Module
- High-Efficiency Cooling System
- WiFi and Bluetooth Support
- Max F-1000Hz Packet Rate
- 1W Power Output
Specifications
- Dimension: 136*49*33mm, 50g (with Moxon antenna) / 74*49*33mm, 40.5g (without antenna)
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- MCU: ESP32(main), ESP8285(aux,as esp backpack)
- Frequency Range: 2400 MHz to 2480 MHz

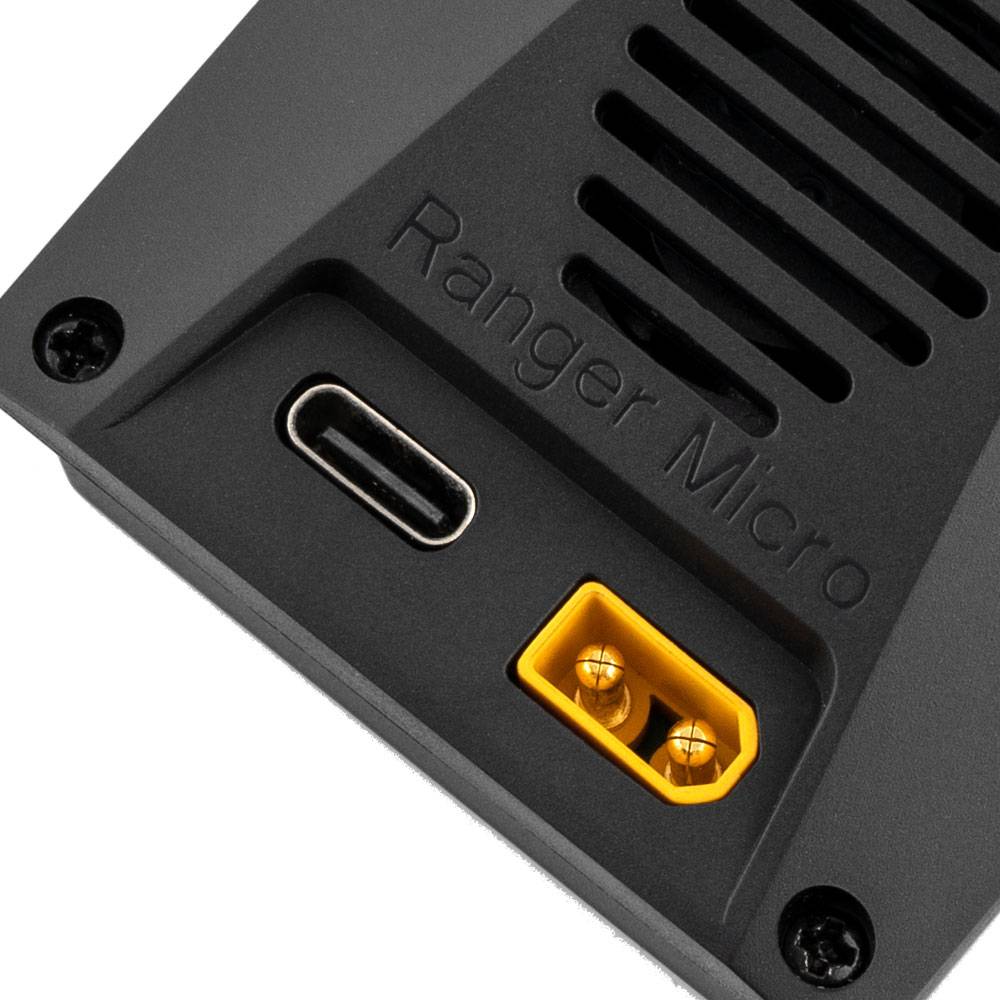

- XT30 Power supply voltage: DC 6V – 16V
- Maximum packet rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Weight: 50g (with Moxon antenna)
- Regulatory Domain: ISM2400
- Item: Ranger Micro Module
- RF chip: SX1281IMLTRT
- Bluetooth support: Yes
- Wifi Support: Yes
T-ANTENNA
- Antenna polarization: vertical/horizontal polarization
- Type: T-type Omnidirectional Antenna
- Connector: RP-SMA Male
- Frequency: 2.4GHz
- Weight: 9.5g
Includes
- 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module
- 1x JR Standard 5pin Socket Module Bay Adapter
- 1x Hexagon Socket Screwdriver
- 1x 2.4GHz T Antenna – RP-SMA
- 1x Futaba CRSF socket cable
- 3x M2*5 Screws
