Description

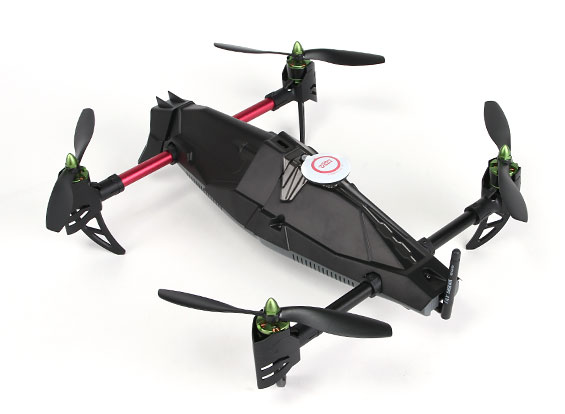

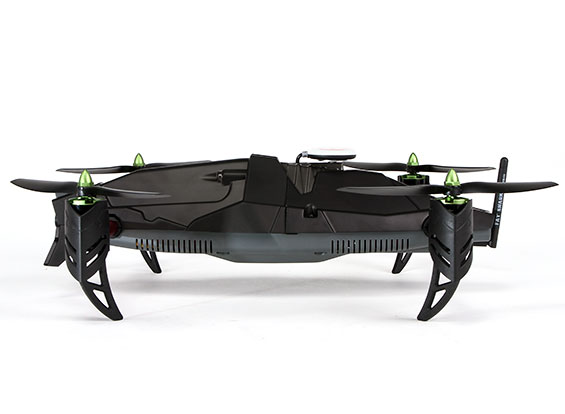

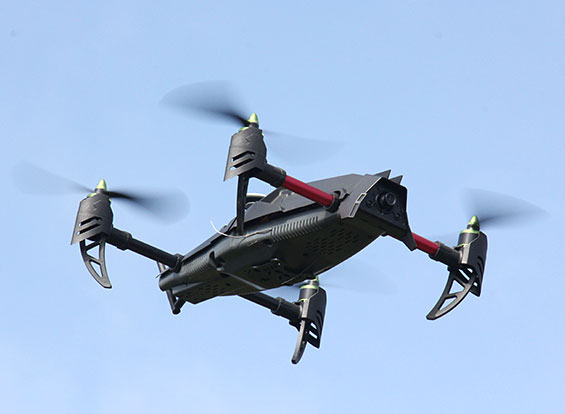

The Venture FPV Quad started life as a H-quad giving the camera a forward unobstructed view of the sky ahead, as well as allowing for optimal equipment separation to minimise video transmission interfererence & perfect flight controller positioning for the DJI Naza. With a layout decided, a sleek purpose built molded frame was forged with an aluminum main spar and unibody strengthening. All the best provisions were taken into consideration, making the Venture the best FPV cross platform frame available with options and provisions beyond any other Quad in its class.

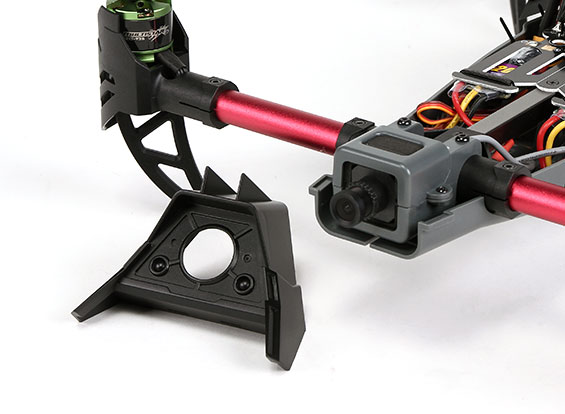

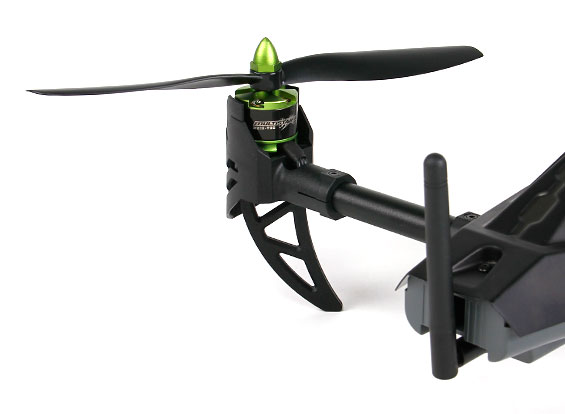

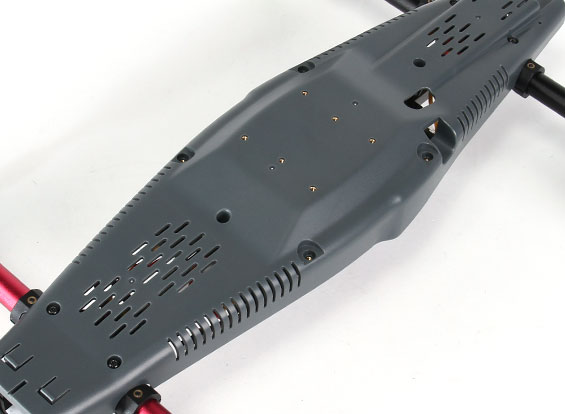

The Venture frame has a center spar to which most components attach. The ESC mount/power distribution board has pre-fitted 20A Afro ESC’s and filtered FPV power lines. It also handles the centerline battery mounting. The Multi-mount FC position and Power module support is pre-fitted with a DJI Naza Lite and remote UBEC/USB module. The cross arms allow for in-tube wiring and the motor mounts not only look good, but protect the included 2213 MultiStar motors and have replaceable/optional landing skid options. The front arm mount houses a protected center camera mounting cube with a FatShark FPV tuned 600TVL camera pre-installed and wired with vibration isolation pads. The lower molded unibody shell attaches to the arms and spar and has provisions for universal gimbal mounting and tall skids as an option. The lower shell also has a rigid top cross roll bar that also plays the role as the GPS mount. At the rear of the lower shell a mounting cube for the included Fatshark 250mW FPV video transmitter. The upper shell is vacuum formed polycarbonate for a balance in weight and strength and lends well to customizing. Access ports have been made for all types of gear so maintenance is a snap.
The Deluxe Package only requires you to install your favorite radio receiver and calibrate the transmitter, charge up your 2200 3s battery and slip on your FPV goggles for an elevated experience. If you’re new to FPV or just want a multi-rotor that you can pull out of the back of the car and fly FPV without any hassles, the great design and top quality components make the Quanum Venture Deluxe edition a platform you can trust.
The Venture is a refined evolution of multi-rotor DNA, and exemplifies cross use without compromise.
Features:
• Goggle ready FPV fun
• Pre installed and tuned DJI NAZA with GPS
• Pre installed MultiStar motors and matched Afro 20A ESC’s
• Pre installed FatShark 600TVL FPV tuned camera and 250mW video TX
• GPS/ATTI/RTH/Acro flight modes
• Unibody construction with spares availability
• Quad esc mounting/PDB with filtered FPV power
• Protected stylish Motor Mounts
• Universal gimbal mounting and tall skid options
• Provisions for all types of equipment pre-molded
• Styled looks with true functionality
• Pre-installed motors and ESC
Specs:
Wheelbase: 430mm
Weight: 440g (AUW 1050g w/battery)
Max prop: 8~10inch
FC mounting: Naza Lite GPS pre-installed
Power Distribution: 4 Afro 20A esc pre- installed with XT60 power lead
Motors: 2213 935KV Multistar Motors pre-installed
FPV camera: Fatshark 600TVL FPV tuned CMOS
FPV TX: Fatshark 250mW 8ch Video TX pre-installed
Gimbal Mounting: 45mm square and 40mm centerline
For Specs and information on individual components please visit the associated page under the related items
Included:
- Quanum Venture FPV frame
- DJI Naza Lite With GPS
- Fatshark 600TVL FPV Tuned CMOS camera
- Fatshark 250mW FPV video TX
- 4 x Afro 20A esc pre-installed
- 4 x 2213 935kv Multistar motors pre-installed
- 4 x Propellers 8×4.5

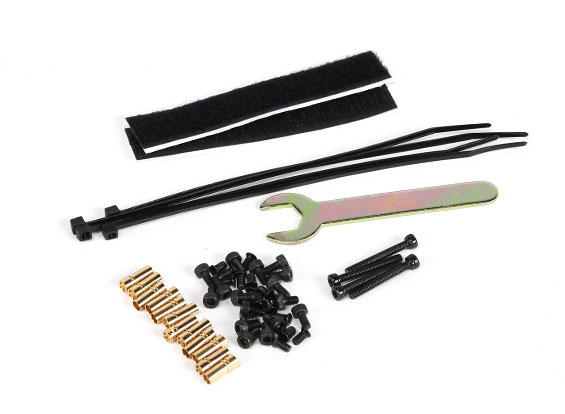

- Wrench set
- Hardware
- Instructions
Recommended Parts:
- 5ch Radio
- 2200~4000 3s battery
