MAD 5008 240kv Light weight | Long-endurance | High-efficiency Motor

Description

MAD 50 series high efficient drone motors. Customs stators. 24N28P, the most efficient motors. Arc magnets. Very good motor electromagnetic design. Designed for endurance flight. Ultra lightweight design.

ENTHUSIASTS EXTREME EDITION for extreme weight reduction while maintaining the highest possible performance.

• Open body design for better passive heat dissipation.
• Propeller installation compatibility.
• Reduced motor weight.
• Motor mounting holes standarization.

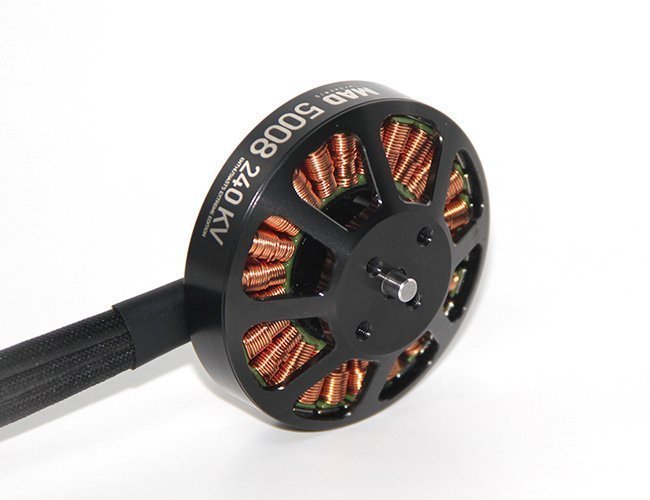

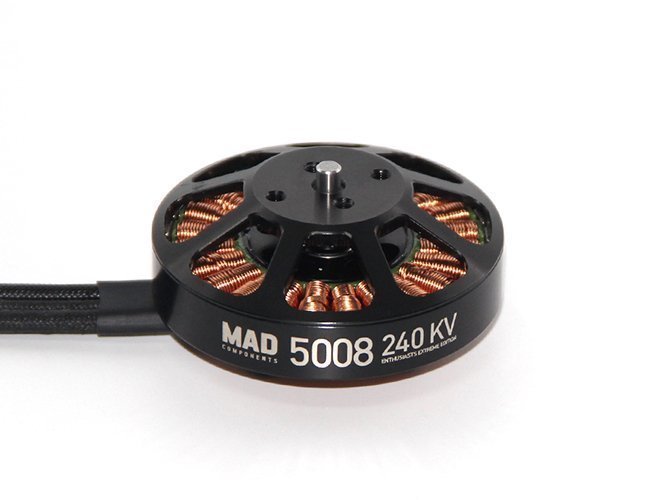

MAD5008 EEE COPTER MOTOR

Designed to carry payloads of 700–2500g per rotor, with 15-22in carbon propeller. Support 6S~12S. Max thrust of single rotor is up to 3880g, unit motor weighs 130g (with 150mm extension wire).

EXTREMELY REDUCED WEIGHT

• Airy case design
• Passive heat dissapation
• Lower power consumption & Maximized performance

HIGH VOLTAGE

• Designed for 6-12S voltage
• Increased torque

PROPELLER INSTALLATION COMPATIBILITY

• multiple propeller mounting options
• 2 x M3 Ø12, 2 x m3 Ø18 mm

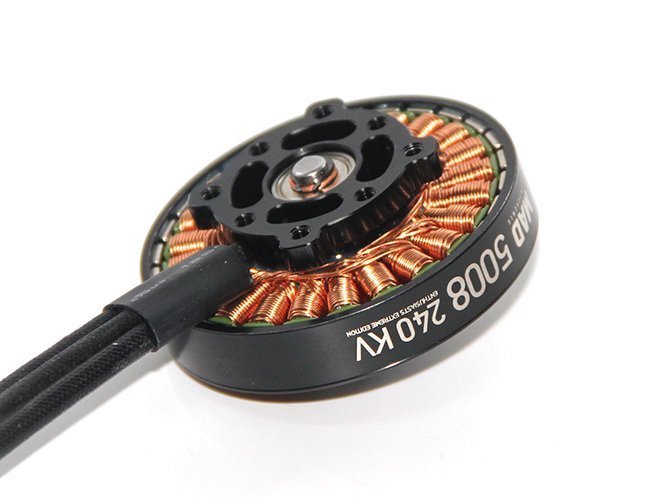

MOTOR SETUP COMPATIBILITY

• Mounting holes standardization
• 4 x M3 Ø30 mm
• 4 x M3 Ø25 mm
