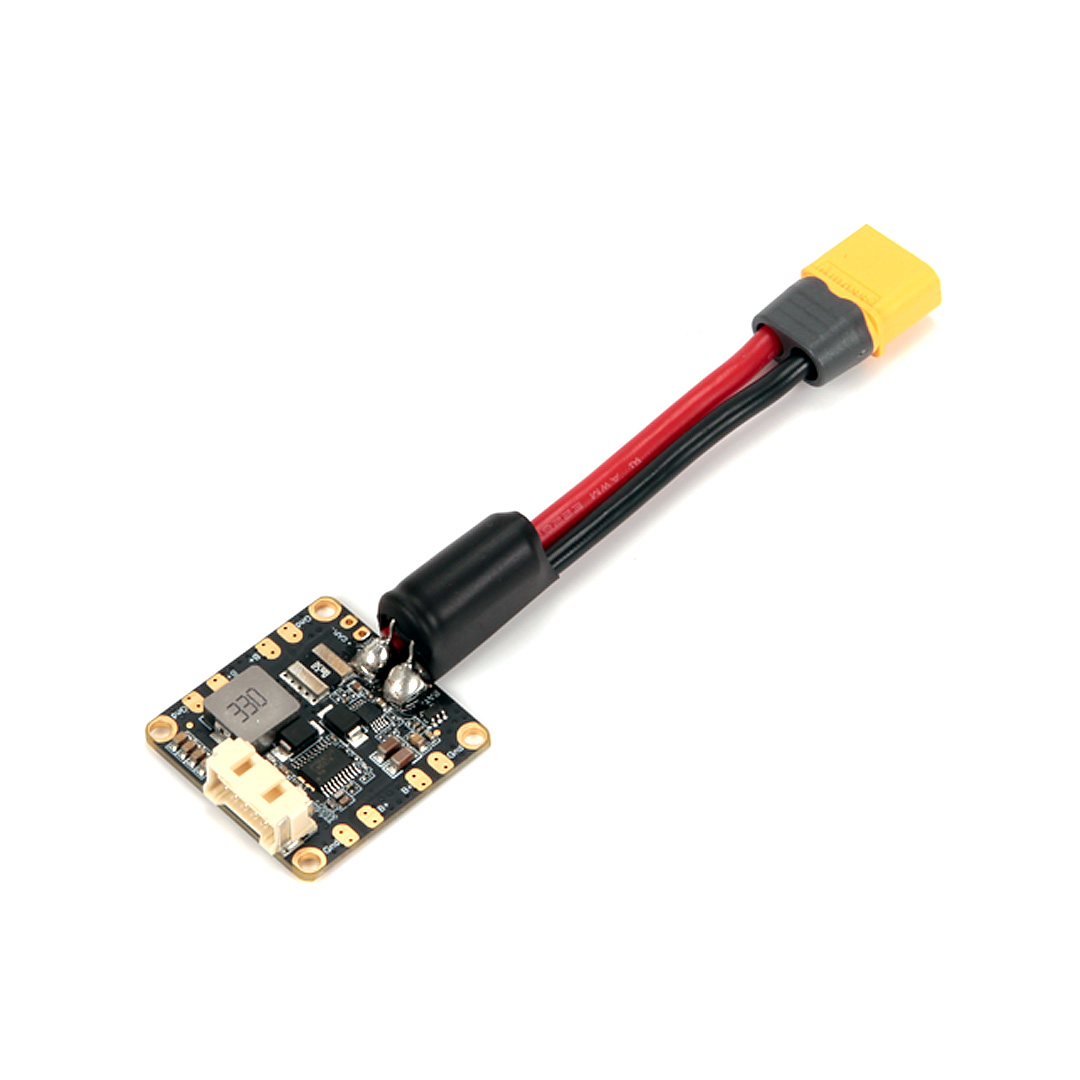

Holybro PM06D Power Module (14S)

Description

Holybro PM06D Specification:-

• Input voltage: 2S-14S
• PCB Cont. Current Rating:70A
• PCB Burst Current Rating: 120A (<60 Sec)
• Max current sensing: 327A
• Voltage and current monitor with 12C compatible interface
• Connector Outputs: 5.2V and 3A max
• Weight:24.5g
• Current Rating:
• The PMO6D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous cur rent and 60A burst current (<1

minute). If a higher current is needed, the plug type and wire size should be changed accordingly. You can refer to this chart as reference.

PX4 Parameter Setup:

If you are using the PMO6D 14S version, you must set SENS EN INA228 to enable.

Package Includes:

1x PMO6D Power Module

1x 6pin 2.00mm pitch cable

Note:-
– PM06D version is currently not support in Ardupilot at this moment. Support coming soon
– This PM uses 12C digital signal data output and is not compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flig ht controllers.
