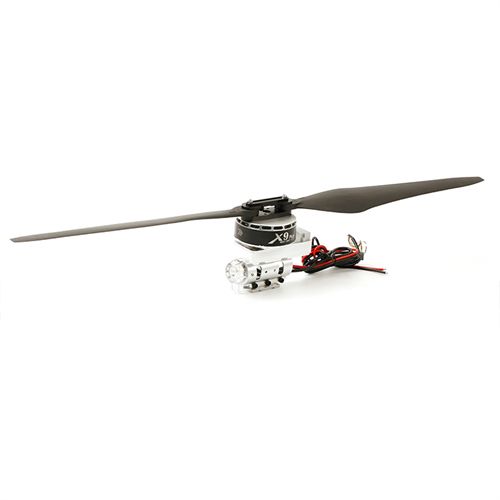

HOBBYWING XROTOR X9 CW / CCW 110KV MOTOR With InBuilt ESC & Propeller COMBO

Description

Tube-on-one structural design

The X9 is three-dimensional and designed with an integrated motor and ESC as one.The installation of the lightweight structure is convenient and can be matched with the circular carbon fiber tube(40mm).Optionally, it can be used with 34.7 propellers or 3411 propellers or 36190 propellers.

Smarter, more compatible & the perfect powertrain

The power system is smoother and improves the compatibility of the flight controller (can be used with more excellent flight controllers). The overall stability and reliability of the aircraft has increased with an improved flight effect. LED light color adjustment function remove the lampshade and uses the DIP switch to adjust the LED light color.Smarter, more compatible & the perfect powertrain.

The maximum tensile force of a single shaft can reach 23kg, which is suitable for large-load plant protection machines with 7-10kg/axis

X9 large-duty plant protection aircraft application, using FOC ESC (optimization algorithm based on field-oriented control) easy airworthiness 16kg load four-axis plant protection rotor aircraft or larger type.

All-weather application

The X9 is equipped with an overall waterproofing protection of IPX7 rating.It guarantees excellent waterproofing and dustproofing protection. The X9 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.

Excellent design for heat dissipation

The X9 system design are closely connected. The increase in conductive area greatly improves heat dissipation and can be used for higher power load. The overall structure is more reliable. Excellent design for heat dissipation.

Collision avoidance structure LED lights

The X9 motor seat-tail and anti-impact design absorbs impact, and protects both the motor and ESC from damaging caused by a malfunction crash.

Accessibility interface

The bottom of the powertrain is reserved for the nozzle mounting mount.It can be connected directly to various nozzles for installation using
a variety of plant protection models for auxiliary applications to simplify the structure.

Multiple protection functions

The X9 power system is equipped with several protection functions such as: Power-on self-test, Power-on voltage abnormal protection, Current protection and Stall protection.It is able to output an operating status data to the flight controller in real time including; input throttle amount, response throttle volume motor speed, bus voltage, bus current, phase current, capacitor temperature and MOSFET temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. It improves the overall system reliability.

Note: Using the Hobbywing DataLink data acquisition memory (Note: need to be purchased separately) can simultaneously collect the real-time operation data of the 8-channel power system, and pass it to the flight controller through the bus interface to form a closed-loop control system.

Support system upgrades

Hobbywing allows you to update your ESC to the latest firmware and synchronize it using a computer via the Hobbywing Data Link software at all times.
