Description

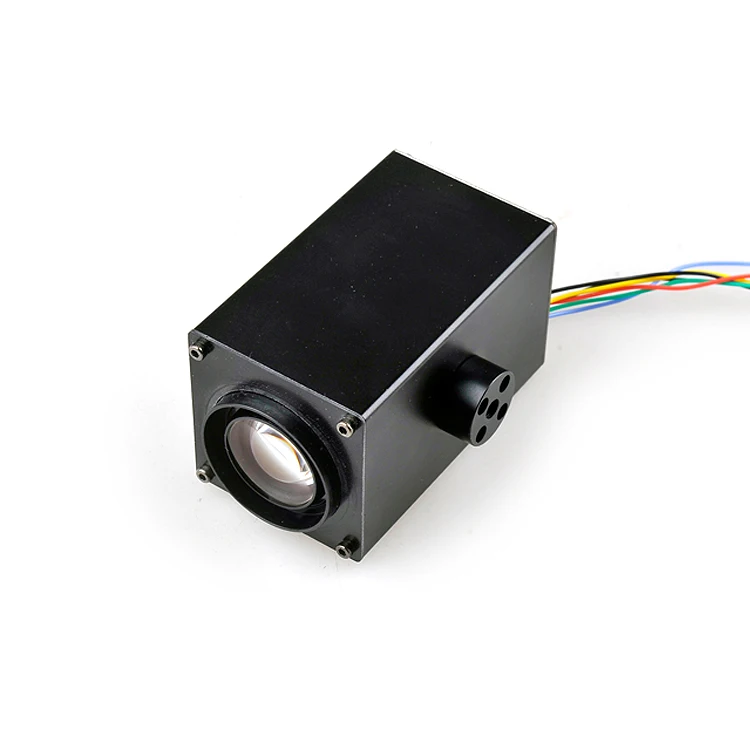

The camera comes with a SD card slot and supports up to 64G SD Card. The video recorded on the card is 1080P 25 frames. This camera can control the zoom and start and stop recording via the remote control. And with AV signal output, you can output analog images.
- 32X digital variable autofocus camera, with high-definition recording storage function, external output 5.8G. Analog signal real-time image transmission can be controlled by 32 times, 12V power supply direct input Wiring.
Definition:
- PWM zoom blue line in the signal line controls the zoom
- Green PWM recording line in the video function switch. -Yellow line AV OUT video signal output line.
- Video ground line GND black line.
- VCC12V device input power supply.
- Red line 12V positive line.
- Black line device power input device negative line.
Wiring method:
- Blue is connected to the receiver PWM signal port, and the receiver needs an external 5V power supply.
- The power supply must be connected to the negative pole of the camera’s input power supply, otherwise it cannot be controlled to connect to the ground.
- The ground wires of the yellow and black lines of the camera and the connection diagram of the image transmitter should be grounded with the camera’s power supply. Prevent no signal.
- The camera’s built-in 12V power input. It can be powered by the controller with a control at 12V.
Function introduction:
The camera has a built-in SD card slot, which can record video with an SD card. The camera will be on for about 20 seconds. After the screen is displayed, do not press the recording function for a few seconds and then start recording. Wait for the camera to work in the background. After the recording ends, wait about 5 seconds to start recording again or turn off the power. The camera is storing data too quickly, or the second recording is performed, which will result in the first recording failing and no video data.
