Description

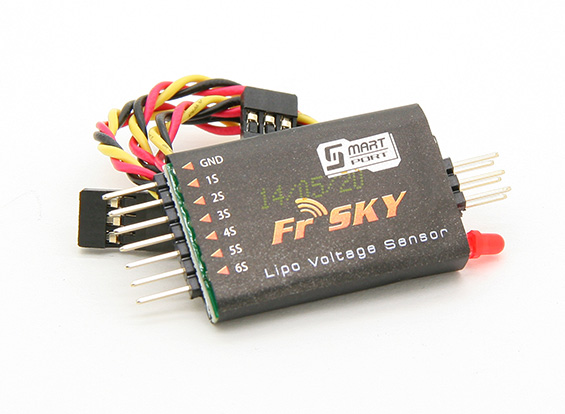

The latest sensor developed by FrSKY has been designed to collect important flight information and performance data which can be transmitted via the smart port of telemetry-enabled receivers such as X8R, X6R, X4R, etc to a Taranis transmitter .

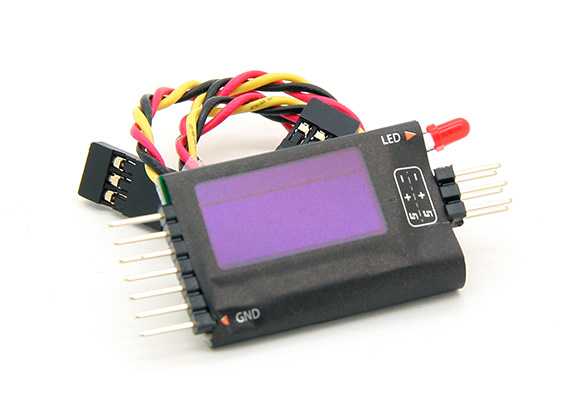

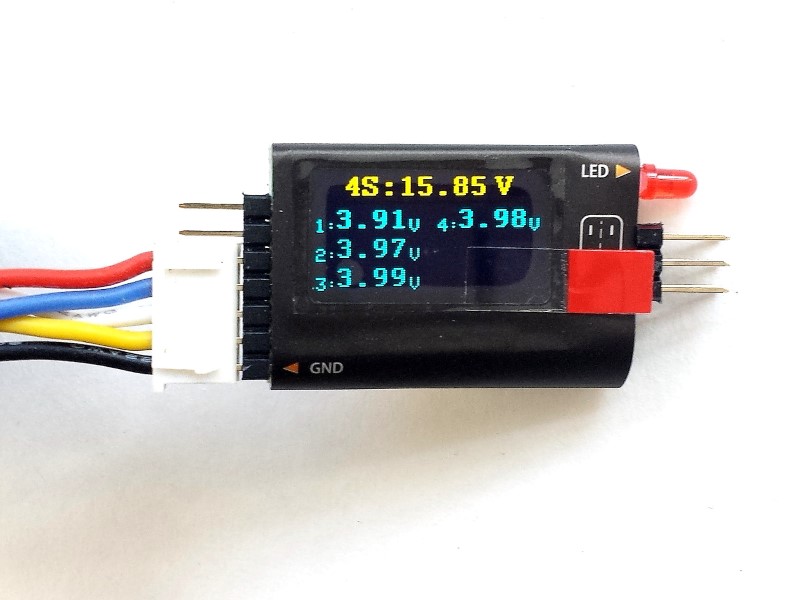

This particular sensor is used to monitor the voltages of LiPo packs. The latest sensor incorporates a colourful easy-to-read (even in the dark!) OLED (organic light-emitting diode) display showing both total voltage and individual cell voltages. Simply plug in your LiPo balance plug to view the voltage readings.
The sensor can also be used as a handy, pocket-size, stand-alone LiPo checker.
Features:
• Accurate display of LiPo cell voltages
• Clear OLED disply – can even be read in the dark!
• Light weight – only 5.2g
• Compatible with FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc.
Specs:
Measurement Range: 1s (3.7V) ~ 6S (22.2V) LiPo
Cell Voltage Display Range: 0.20V~4.20V
Voltage Display Resolution: 0.01V
Voltage Detection Precision: 0.03V
Operating Current: 15.5mA
Operating Temperature Range: -30 to +70C
Screen Resolution: 128 x 64 pixels
Display: OLED screen
Dimensions: 45 x 21 x 7mm
Weight: 5.2g
Measurement Range: 1s (3.7v) ~ 6s (22.2v)
