FlySight Black Pearl RC801 7inch HD with integrated battery and 12V/2A PSU

Brand: FlySight Categories: , Tags: , , , , , , , ,

₹14,500.00

0 reviews

Out of stock

Description

Higher resolution than most screens and supports all 32 channels in the 5.8GHz band with built-in Diversity Receivers auto switching to always display the clearest signal.

– Anti reflective matte screen and rubber coating

– build-in two 5.8GHz video receivers and a diversity system that will automatically select the best video signal

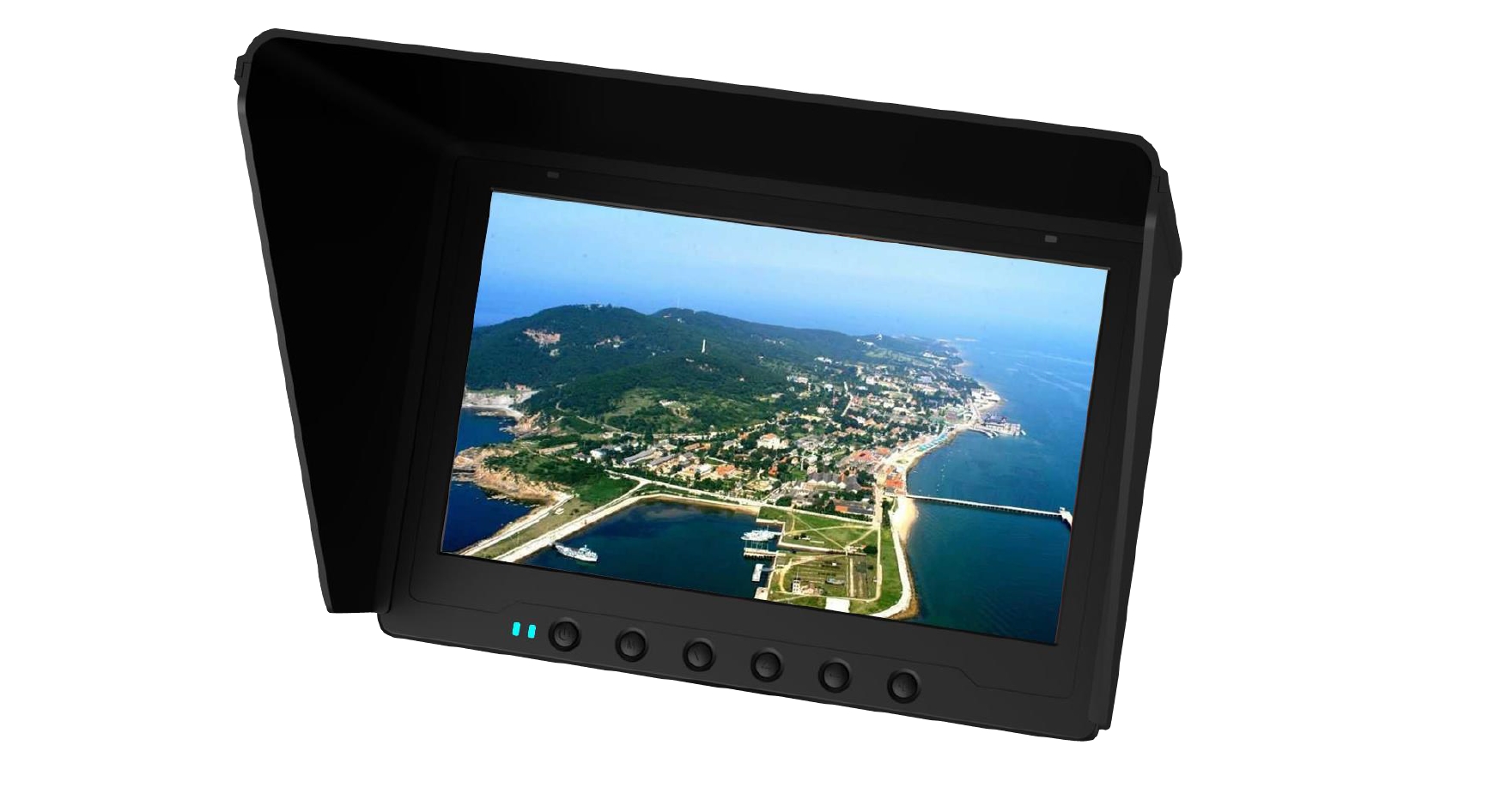

– Equipped with an efficient rigid sun hood
– standard tripod/photo screw to clamp it on standard system (1 /4 ” 20 threads per inch WBS )

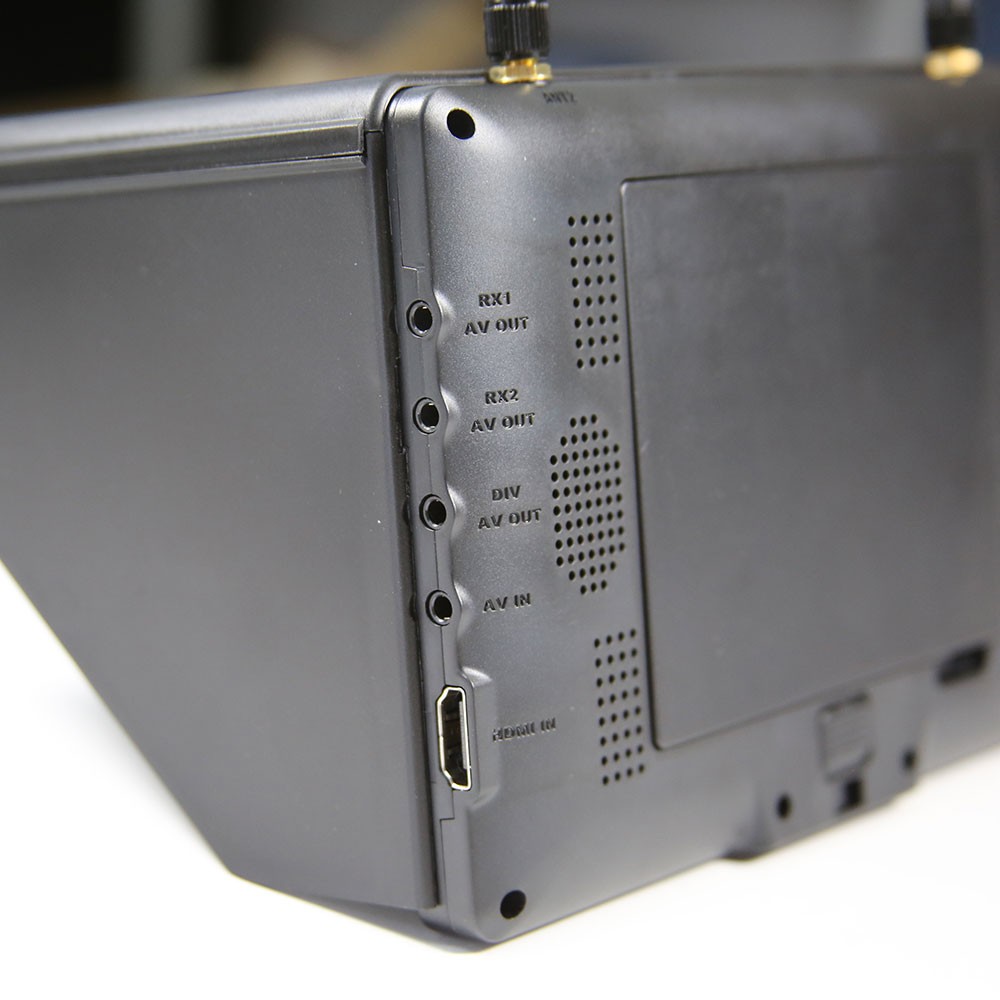

– A composite video input will allow you to display external sources
– HDMI video input
– Power 7 – 28V and a DC output for powering a pair of video googles or other equipment (Dcout = Dc in, MAX 1A)
– Channel selection via button (no more micro switch !)
– Built in speakers ( from your video Tx or video input sources )

Monitor supports Airwave and NextWave transmitters and many others on 5.8Ghz due to the 32channels;

♦ Compatiable with Fatshark,airwave,Immersionrc and others.
♦ Fully compatible with 2.4Ghz R/C radios;
♦ No Blue Screen

Frequencies for the 32Ch version:

Band CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
A 5865 5845 5825 5805 5785 5765 5745 5725
B 5733 5752 5771 5790 5809 5828 5847 5866
E 5705 5685 5665 5645 5885 5905 5925 5945
F 5740 5760 5780 5800 5820 5840 5860 5880











Includes:

– (1) LCD Monitor RC801 With 2 built in 5.8 Ghz Receivers RP-SMA antenna style only
– (2) Duck Antennas (can be replaced/upgraded)
– (2) AV Cables
– (1) XT-60 Power Cable to connect directly to a LiPo battery
– (1) 1100mah 3s In built LiPo (we still recommend using external LiPo if you wish to use for prolonged periods of time as the inbuilt battery is good for about 1hr – 1.5hr in best conditions.
– (1) Sunshade
Features

  • Specification:
    1. Screen size:7”
    2. Screen type: TFT LCD Screen/long life, LED backlight
    3. Resolution: 1024×600
    4. Brightness: 300cd/m2
    5. Contrast: 700:1
    6. View Angle: 140/120degree (Horizontal/Vertical)
    7. Working Voltage: DV 7-28V or 11.1V Li-battery
    8. Power Consumption: < 8w
    9. Size: 180mm x 120mm x 23mm
    10. Built-in 5.8Ghz Dual diversity receiver automatically for best reception
    11. Built-in 2CH 5.8Ghz AV output and 1CH AV input
    12. Support 9 languages menu selection
    13. Working temperature: -10℃~+ 65 ℃
    Features:
    1. Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
    2. Dual buffered AV outputs
    3. Can receive 2 different channels at the same time
    4. Not affect by 2.4GHz R/C Radios
    5. AV Receiver with Diversity inputs
    6. Small, light weight, durable

Additional information

Weight 2 kg
