Boscam RC805 5.8Ghz FPV 8 Channel Receiver with Channel Display

Description

The RC805 has been around for a while now; yes it doesn’t boast 40 channels like the latest FPV receivers do, but the 8 channels it does support is enough for people who fly on their own. Also, the Rx is a nice small unit and simple to use thanks to its number display and push button channel selection button – thankfully there’s not a fiddly little dipswitch in sight!

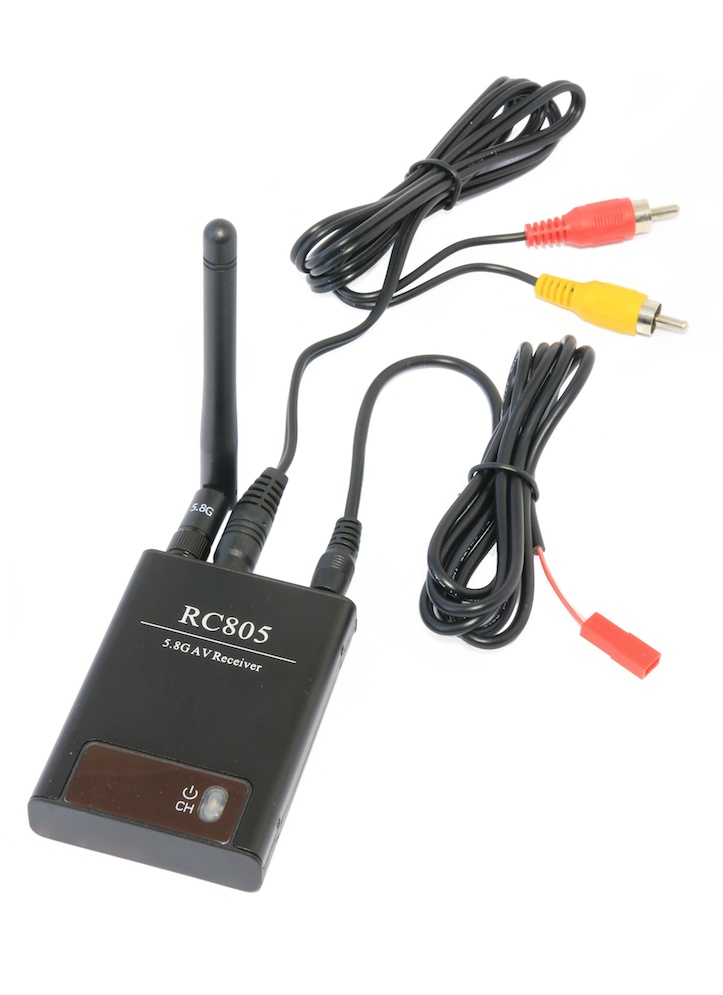

The receiver comes plug and play with a power and RCA cable, and it features two AV outputs which are handy if you want to plugin video goggles and a video monitor at the same time. The RC805 is a perfect match for the Boscam TS 351 200mw FPV transmitter.

Quite simply, for the money you can’t really good wrong, the RC805 is a well-proven FPV Rx.

Frequencies (Band E):

• CH1:5705
• CH2:5685
• CH3:5665
• CH4:5645
• CH5:5885
• CH6:5905
• CH7:5925
• CH8:5945

Specification:

• ​Output Frequency: 5.8Ghz
• Receiving frequency: 5665-5945MHz
• Channels: 8CH (Bands E)
• Receiving sensitivity: -90dBm
• Frequency control: Built-in frequency and phase lock loop (Channel button – LED Display)
• AV output: Dual 2CH output (2.5mm plug)
• Antenna connector: RP-SMA
• Input voltage: 8-12V
• Supply current: 150mA
• Dimension: 75x54x15mm
• Weight: 130g​

Contents:

• 1x RC805 5.8Ghz receiver
• 1x 2dbi 5.8Ghz “rubber duck” omni-directional antenna
• 1x RX power cable – JST connection
• 1x RCA cable connector set for video output
