We proudly carry the Circular Wireless hand tuned and impedance matched Heliaxial58.
Helical antennas are designed for maximum range, having a tighter focus than an Omni or patch style antenna. Helical antennas also have a broader “tune” range and have great gain across the entire 5.8Ghz band.

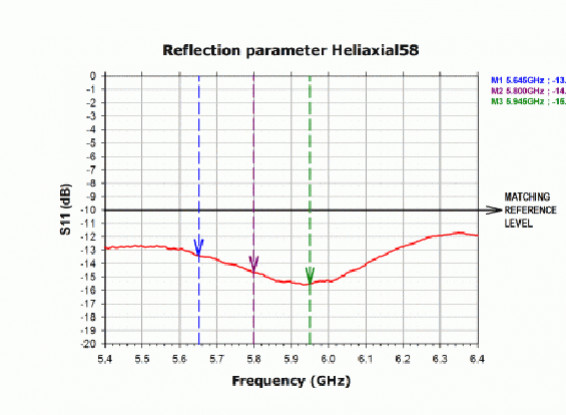

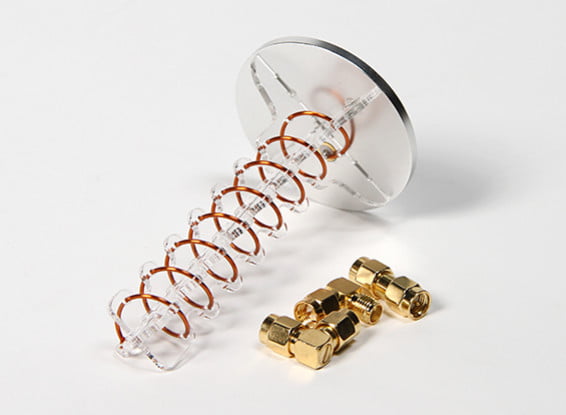

The Heliaxial58 is supported by a precision cut polycarbonate frame and a 3mm aluminum reflector, each antenna is hand tuned and impedance matched giving you a minimum of 12dbi return! The antenna includes 3 SMA adapters letting you achieve virtually any installation angle of your setup.
Helical antennas have a narrower focus for further range so its recommended to be used on a diversity system and or antenna tracker setup for the ultimate in video lock and range.
Specs:
Bandwidth: 5645-5945Mhz

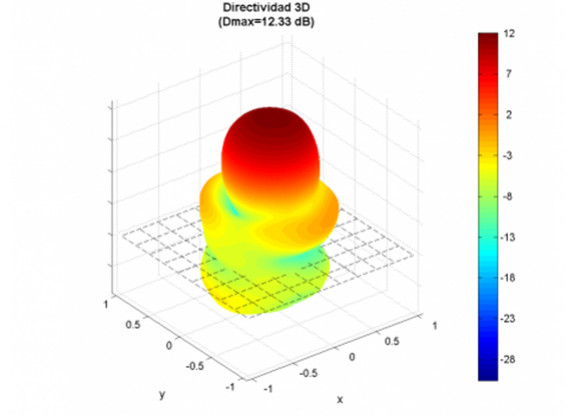

Gain: 12.2dbi
Cross polar rejection: >10dbi
Connection: SMA
