Description
The Aomway DVR Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface, one for the band and one for channel with a bright LCD, making channel swapping a breeze. There are two independent AV outputs for both audio and video, one is processed by the DVR for playback or blue-screen monitor, the other is DVR Bypassed for latency free video.
Use the DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 2~6 cell lipoly into the included prewired cable. It just doesn’t get any simpler than this.
*For best range and video link stability we recommend using circular-polarized, Patch or Helical Antenna Set (SMA) available below in the accessory’s tab
Features:
• 32 channels: Cover A, B, E bands and F bands

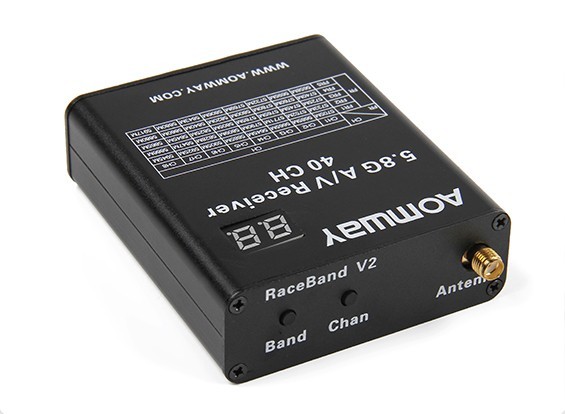

• Two switching buttons for the band and channel
• Two digits display for the band and channel
• Power off memory for last channel and band
• dual Independent video and audio signal outputs
• DVR recording of transmitted video
• DVR processed output on AV1 to help with “blue screens monitors”
• OSD for direct playback
Specs:
Video format supported: NTSC/PAL
Antenna connection: SMA, jack
Power input: 7~24V
Working current: 300mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 129g
Recording Quality: HD D1 AVI record mode, but 640×480 direct DVR playback
Memory: Micro SD (Trans flash) up to 64GB

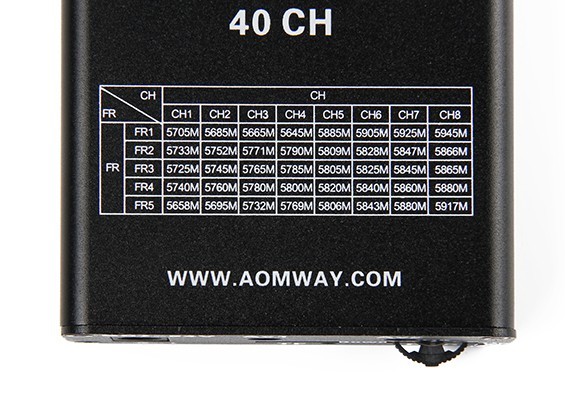

Frequency range:
5645~5945GHz 32ch
