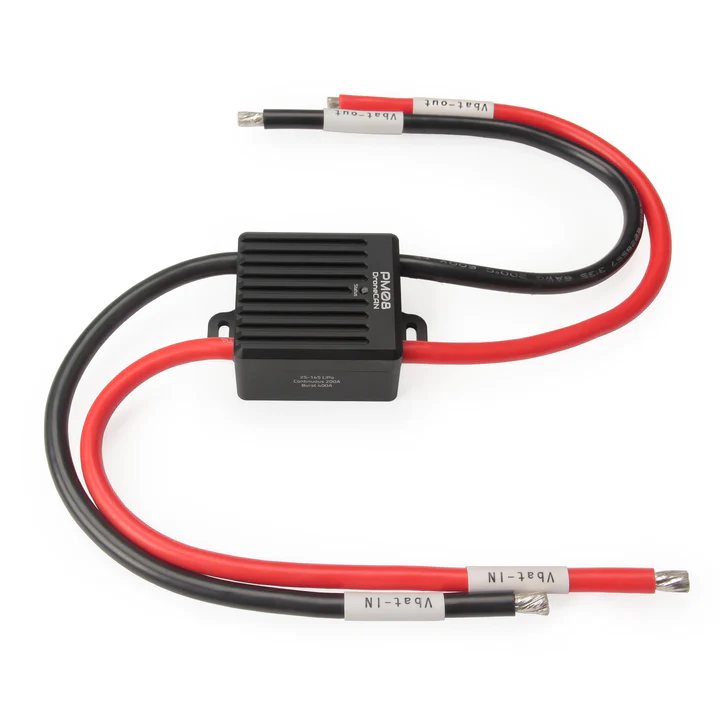

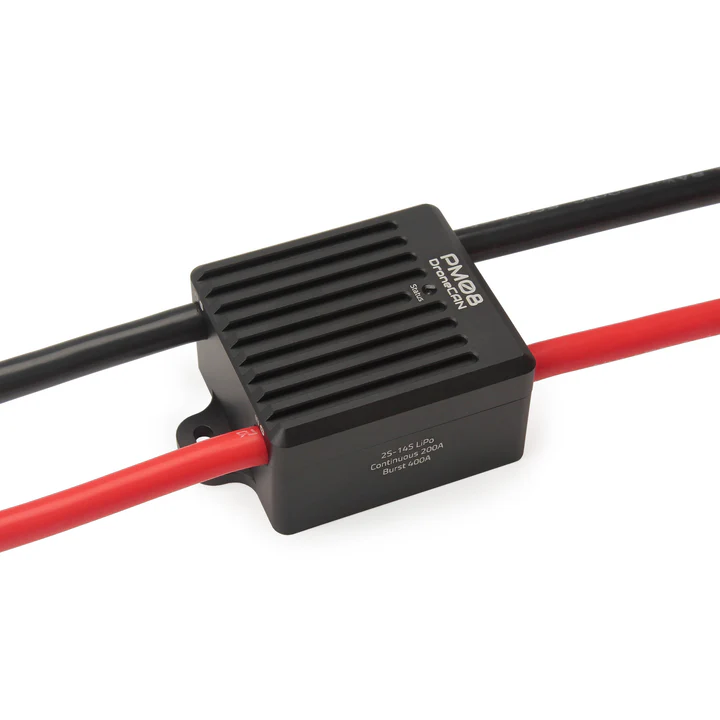

Alpha P200 CAN Power Module 14S 200A

Description

Feature of Alpha P200 14S CAN Power Module :-

• Supports 2-14S & 200A Cont, 400A Burst
• DroneCAN Communication Protocol
• Small & Compact Design
• Two 5V Output with Independent BEC IC and Circuitry

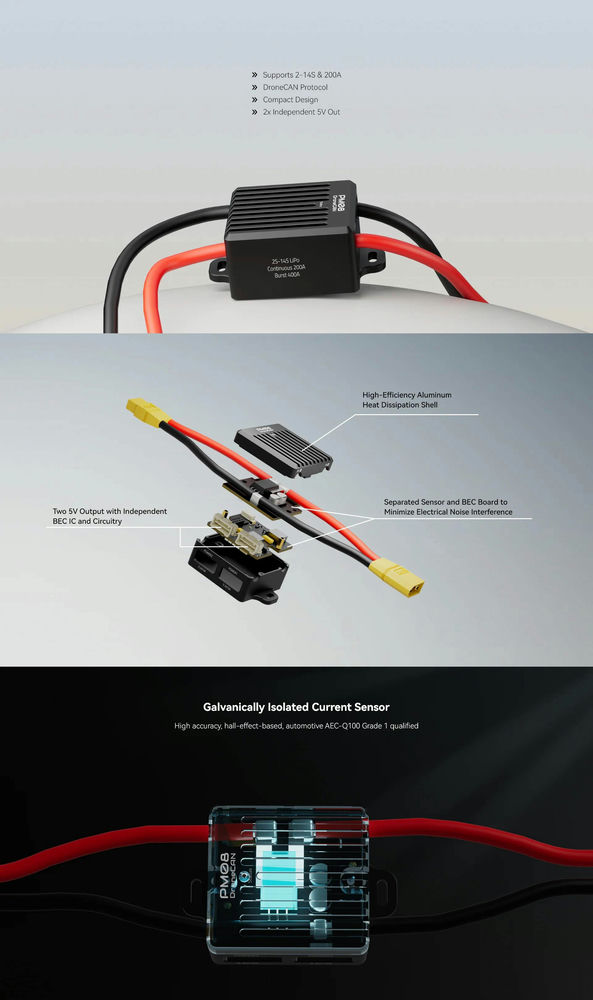

• Separated Sensor and BEC Board to Minimize Electrical Noise Interference

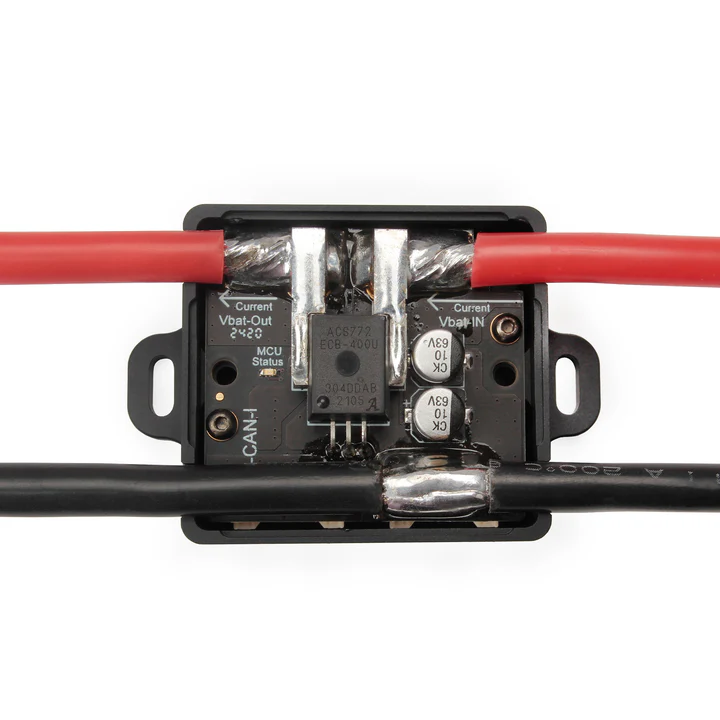

• Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
• High Accuracy Temperature Sensor for Temperature Monitor

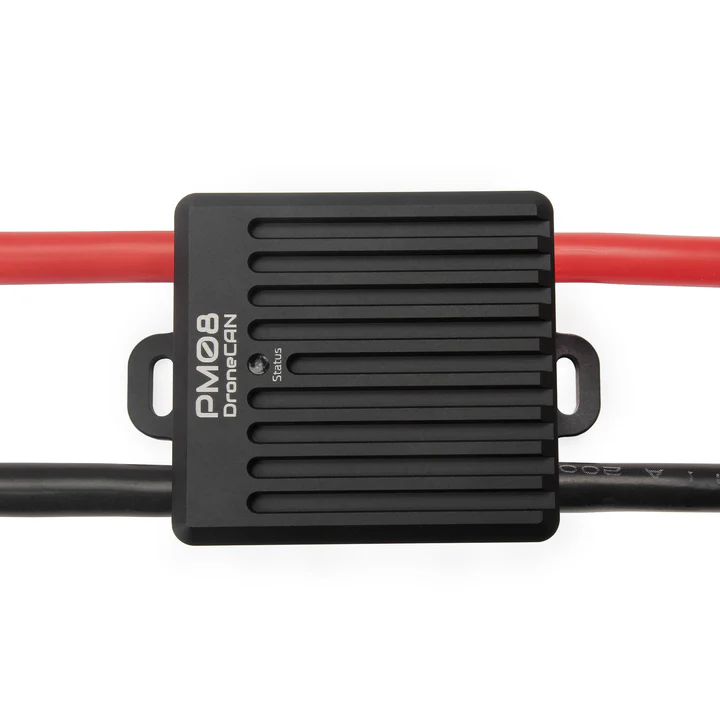

• High-Efficiency Aluminum Heat Dissipation Shell

Specifications :-

• Processor: STM32F405RG 168MHz 1024KB Flash  196KB RAM
• Voltage input: 7~60.9V (2S~14S)
• Continuous current:200A
• Burst current
  • 400A @ 25℃ 1 sec
  • 1000A @ 25℃ < 1 sec
• Max current sensing: 376A
• Voltage accuracy: ±0.1V
• Current accuracy: ±5%
• Temperature accuracy:±1℃
• Power port output: 5.3V/3A each port
• Protocol: DroneCAN
• Operating temperature:-25℃~85℃
• Software-Controlled CAN Termination
• Firmware upgrade: Support
• Calibration:  Support

Interface Type

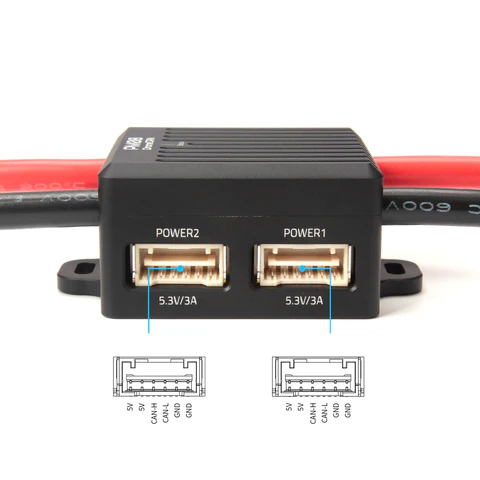

• Power & CAN Port: Molex CLIK-Mate 2mm 6Pin

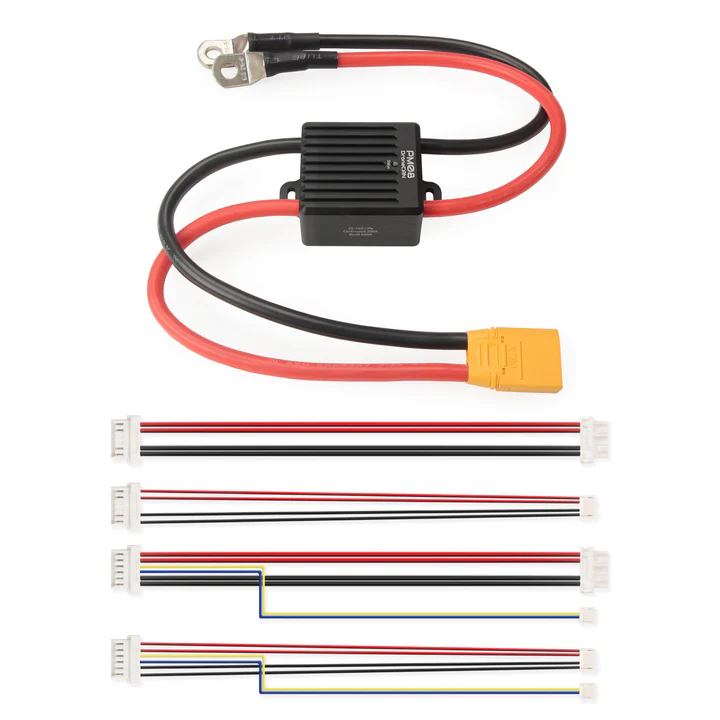

• Battery IN/OUT Options:
  • XT90 Connectors
  • Tinned Wires
  • XT90 & Ring Terminals

Status LED

• Flashing quickly continuously: MCU is in the bootloader stage, waiting for the firmware to be flash
• Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
• Flashing slowly (one-second intervals): CAN is successfully connected

Mechanical Spec

• Size: 45mm×41mm×26mm (Not Include Cable)
• Weight: 185g (Include Cable)
