Air Unit for SIYI MK15 | MK32 | HM30

Description

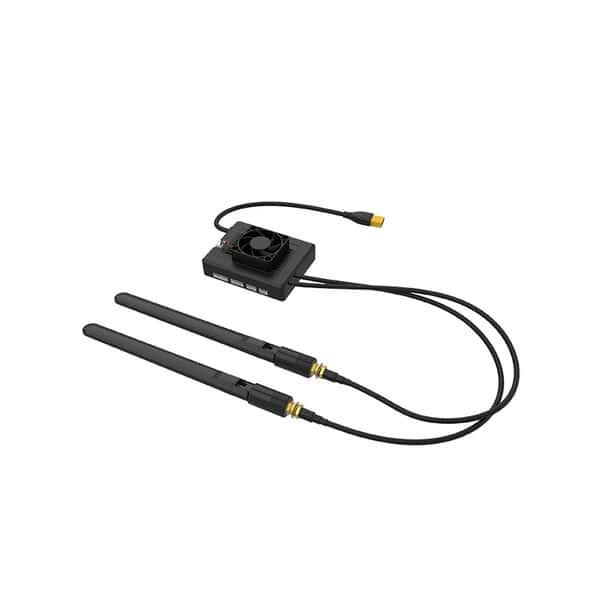

Mk15 / MK32 / HM30 Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
– SBUS: 3-Pin
– Datalink (to FC): UART 4-Pin
– PWM Channel 1 to 5: 6-Pin
– Video Input: Ethernet 8-Pin
– Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃
