PIXHAWK 2.4.6 Full Set – M8N GPS / OSD / Telemetry 500mw

22,800.00 ₹

Pix32 is an advanced autopilot system designed by the PX4 open-hardware project. It features advanced processor and sensor technology from ST Microelectronics® and a NuttX real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle.

In stock

  • Description
  • Additional Information
  • Reviews (0)

Product Description

Details

The benefits of the Pix32 system include integrated multi-threading, a Unix/Linux-like programming environment, completely new autopilot functions such as Lua scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes. These advanced capabilities ensure that there are no limitations to your autonomous vehicle. The Pix32 allows existing APM and PX4 operators to seamlessly transition to this system and lowers the barriers to entry for new users to participate in the exciting world of autonomous vehicles.

The flagship Pix32 module will be accompanied by new peripheral options, including a digital airspeed sensor, support for an external multi-color LED indicator and an external magnetometer. All peripherals are automatically detected and configured.

Features

  • Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
  • Abundant connectivity options for additional peripherals (UART, I2C, CAN)
  • Redundant power supply inputs and automatic failover
  • External safety button for easy motor activation
  • Multicolor LED indicator
  • High-power, multi-tone piezo audio indicator
  • microSD card for long-time high-rate logging
  • 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
  • Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
  • Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)

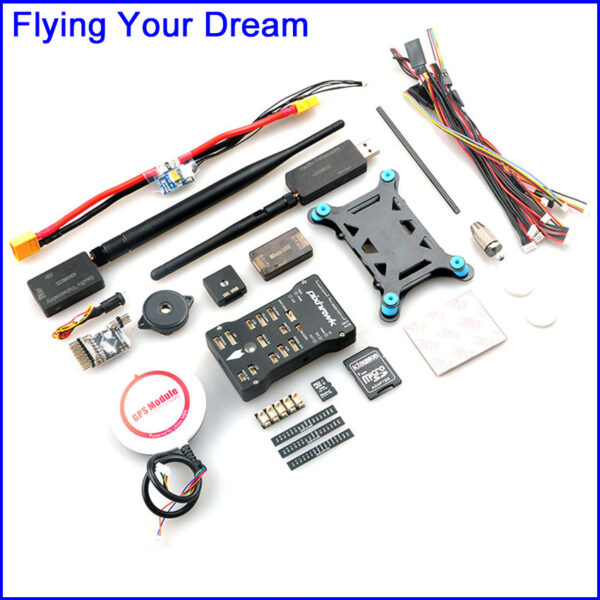

Pixhawk flight control the most complete list:

(All the accessories on the map are all)

1) Fly control with buzzer, unlock switch, PWM / PPM converter board, TF card + card reader

2) with power supply module has been welded (original Amass XT60 connector)

3) 3DR 915MHZ 500mw digital transmission

4) Buzzer

5) Safety switch

6) UBLOX new generation of flagship GPS M8N with folding GPS antenna seat, support the world’s five major satellite navigation system .

7) Micro OSD

8) All cables

9) shock Absorber artifacts

10) PX4 LED & USB expansion module

11) I2C distribution board

12) Power Module

13) 1 x Shock Absorber

Additional Information

Weight.800 kg
