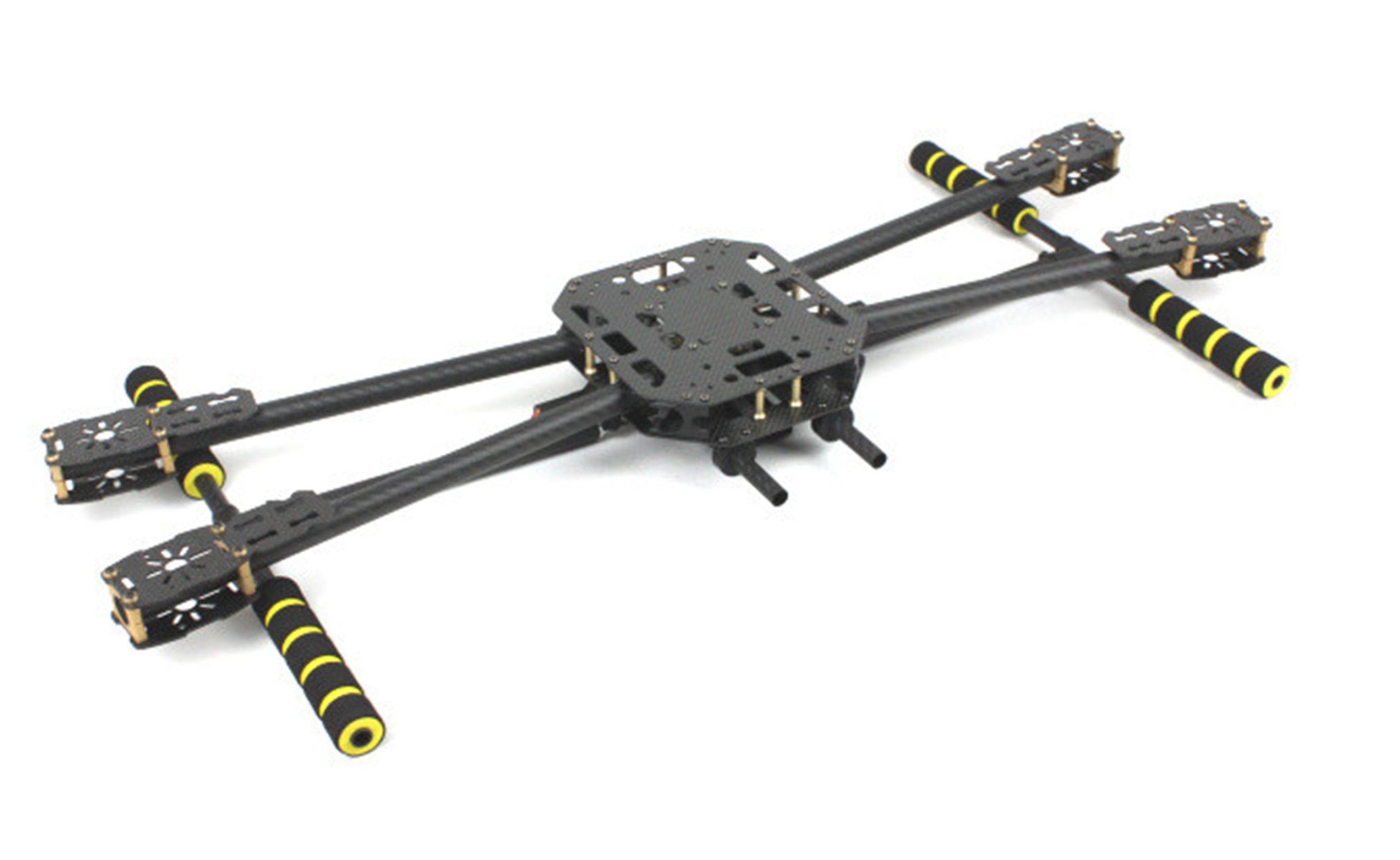

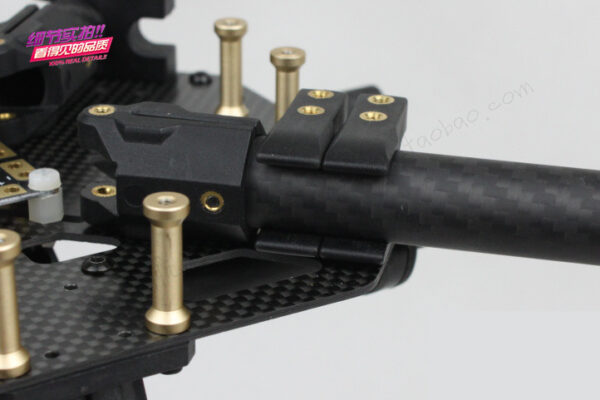

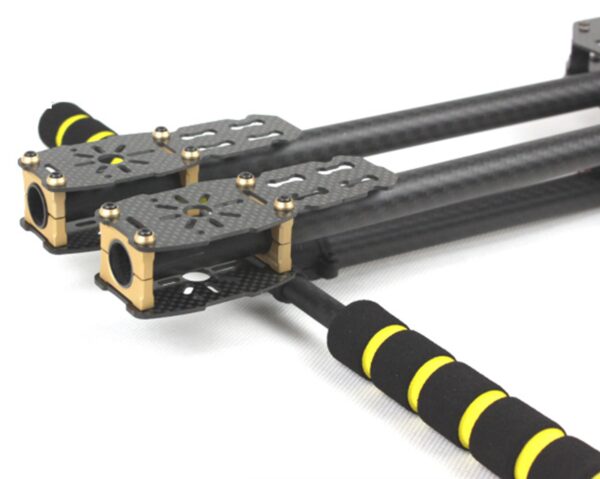

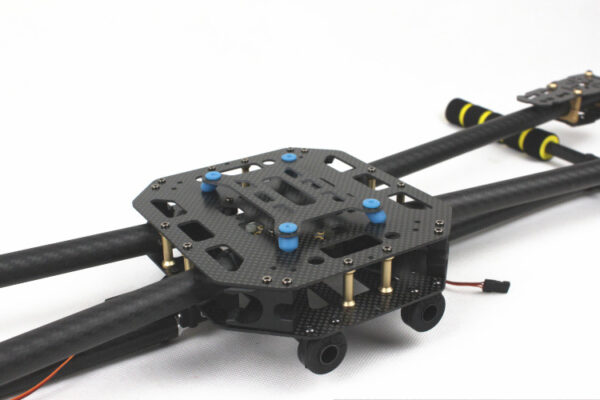

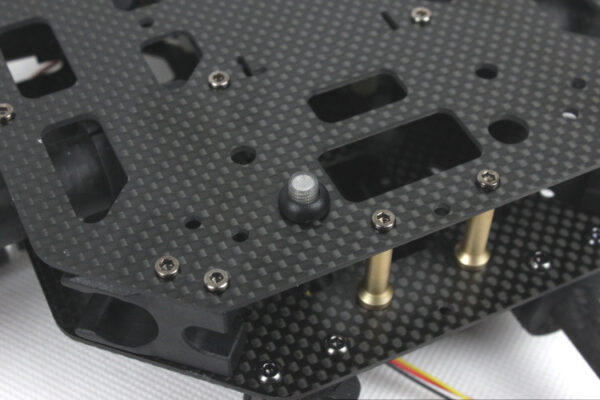

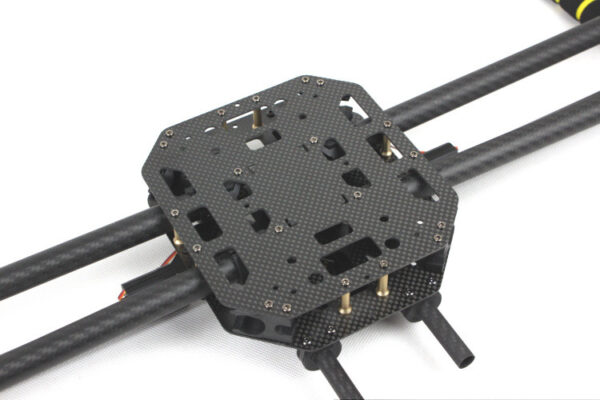

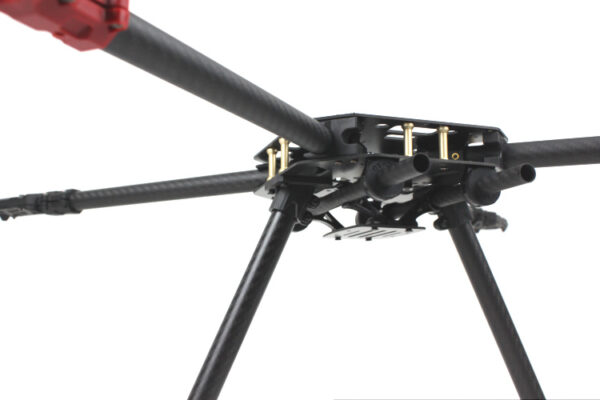

FN650 Carbon Fiber Folding Quad Frame With Electric Landing Gear

13,500.00 ₹ 12,899.00 ₹

This rack is specially designed for APM PIX DJI flight control. The pure carbon fiber manufacturing structure is strong, the weight is 510G, the bearing is not deformed, the integrated power distribution board, the equipment installation area is large, there are two electric retractable tripods and fixed tripods.

  • Description
  • Additional Information
  • Reviews (0)

Product Description

The aerial pan/tilt installation is front-mounted and can be slid on the girders. The installation position of the battery can also be adjusted. The user can load the photographic equipment according to the photographic equipment. The weight is flexible to adjust the center of gravity. Particularly suitable for monitoring, remote sensing, surveying, aerial surveying, fire observation, life exploration, cable inspection, farm monitoring.

FN650 Parameters:
– Diagonal wheelbase: 650mm
– Material of the main board : 3k full carbon fiber
– thickness of the bottom plate : 3mm
– Electric Landing Gear

Recommended configuration: (Not inlcuded)
– Motor: 3508
– Prop: 15 inch CW CCW
– ESC: 30A(2-6s) ; 40A (2-4S)
– Flight control: APM opensource flight control
– Battery: 4-6S Lipo

Additional Information

Weight0.700 kg
